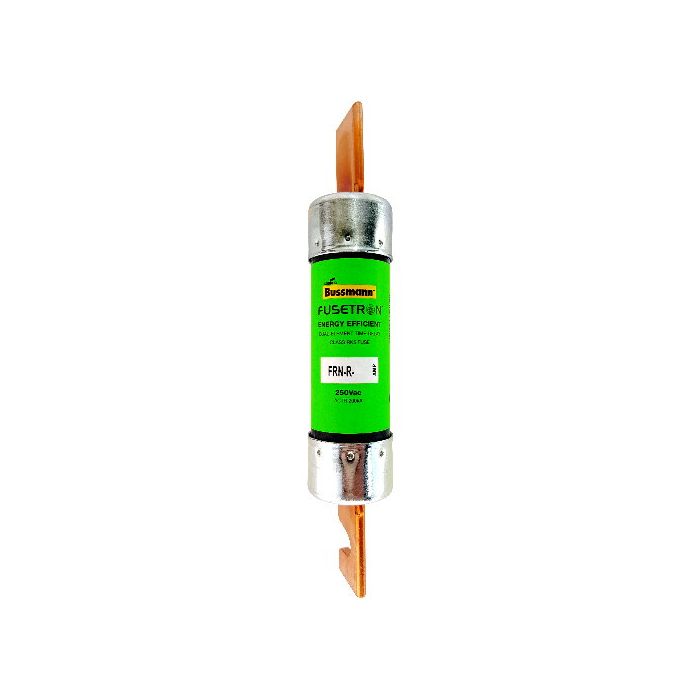

EATON BUSSMANN FRN-R-100 Fuse 100A 250V RK5 Time Delay

Product Description

The EATON BUSSMANN FRN-R-100 is a time-delay fuse designed to protect circuits effectively. This Class RK5, dual-element fuse allows temporary surge currents to pass without blowing, making it ideal for various applications. It can be utilized in circuits with an AC voltage up to two hundred fifty volts and a DC voltage up to one hundred twenty-five volts. The fuse has a high interrupting capacity of two hundred kA at 250VAC and twenty kA at 125VDC, ensuring safety in high-current situations.

• Amperage: 100A
• Voltage Rating: 250VAC/125VDC
• Interrupting Capacity: 200kA at 250VAC, 20kA at 125VDC

Product Highlights

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: FRN-R-100

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 250 VAC
• Fuse Class: RK5
• Element: Dual
• Time Delay: Time Delay
• Interrupting Rating: 200 kA
• DC Voltage Rating: 125 V
• Body Type: Cartridge
• Mounting Type: Holder
• Terminal Type: Blade
• Material: Fiberglass
• Body Size: one point zero six inches Dia x five point eight eight inches L
• Response Time: 10 s
• Certifications: UL Listed, CSA Certified
