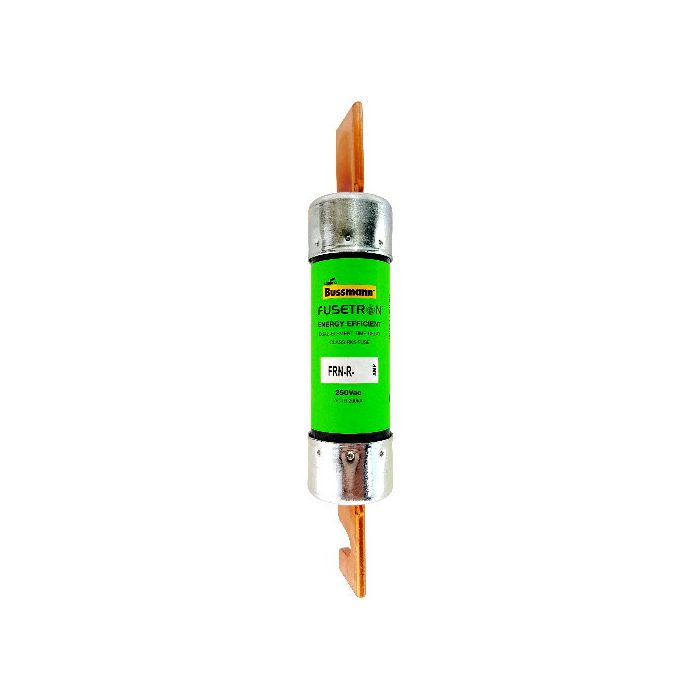

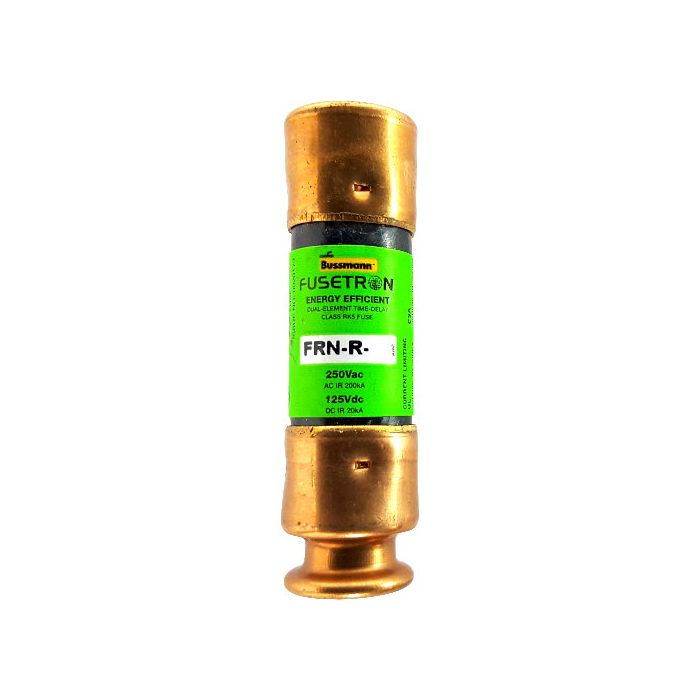

EATON BUSSMANN FRN-R-10 Fuse 10A 250V Class RK5

Product Description

The EATON BUSSMANN FRN-R-10 is a 10 Amp, 250 Volt AC Class RK5 fuse. This dual-element, time-delay fuse offers reliable protection against overload and short-circuit issues. It features an interrupting rating of 200,000 AIC at 250 Volts AC and 20,000 at 125 Volts DC, ensuring safety and efficiency in various electrical systems.

• Amperage: 10A
• Voltage Ratings: 250VAC and 125VDC
• UL Classification: RK5, Dual Element, Time Delay

Product Highlights

This fuse is UL Listed and CSA Certified, providing peace of mind in operational safety. It is suitable for use in industrial and residential applications.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: FRN-R-10

Technical Specifications

• Current Rating: 10
• Voltage Rating AC: 250
• Voltage Rating DC: 125
• UL Class: RK5
• Element: Dual
• Time Delay: Yes
• Interrupting Rating AC: 200,000 AIC @ 250 VAC
• Interrupting Rating DC: 20,000 @ 125 VDC
• UL Listing: UL Listed, Class RK-5, Guide JDDZ, File E4273
• CSA Certification: CSA Certified, C22.2 No. 248.12, Class 1422-01, File 53787
• Physical Size: 0.56 x 2 inches
