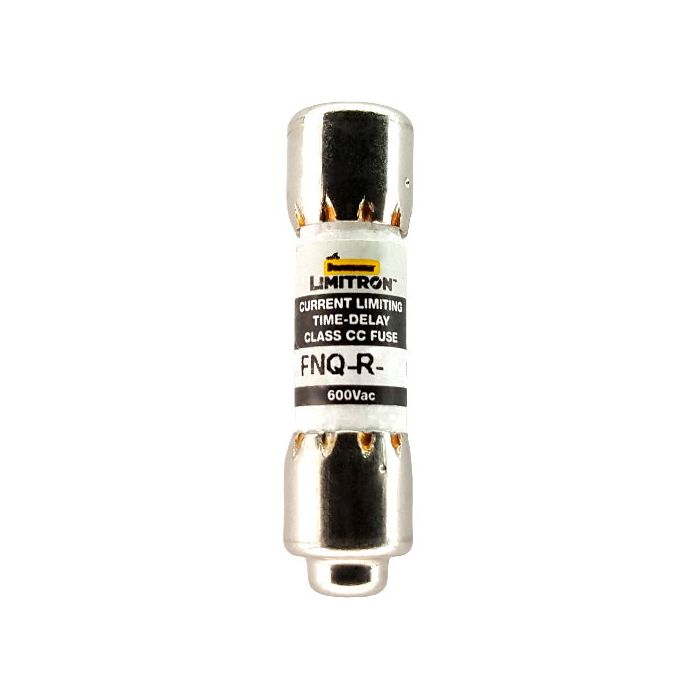

EATON BUSSMANN FNQ-R-30 Class CC Time Delay Fuse

Product Description

The EATON BUSSMANN FNQ-R-30 is a Class CC time delay fuse, suitable for circuit transformer protection. This fuse has a current rating of 30 amps and is rated for 600 volts, ensuring reliable performance in various applications.

• Class CC time delay fuse for enhanced protection
• Interrupting rating of 200,000 AIC at 600 VAC
• Melamine tube construction for durability

Product Highlights

This fuse is ideal for line protection, small control transformers, industrial control, and branch circuits. It features a response time of twelve seconds at two hundred percent.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: FNQ-R-30

Technical Specifications

• Voltage Rating: 600V
• Current Rating: 30A
• Fuse Class: Class CC
• Interrupting Rating: 200,000 AIC at 600 VAC
• Response Time: 12 seconds at 200%
• Fuse Dimension: 1.5 inches long x 0.41 inches diameter
• Material: Melamine Tube
• Application: Line protection, small control transformers, industrial control, branch circuits
• Certifications: UL Listed Std. 248-4, Guide JDDZ, File E4273, CSA Certified Class CC, Class 1422-01 File 53787
