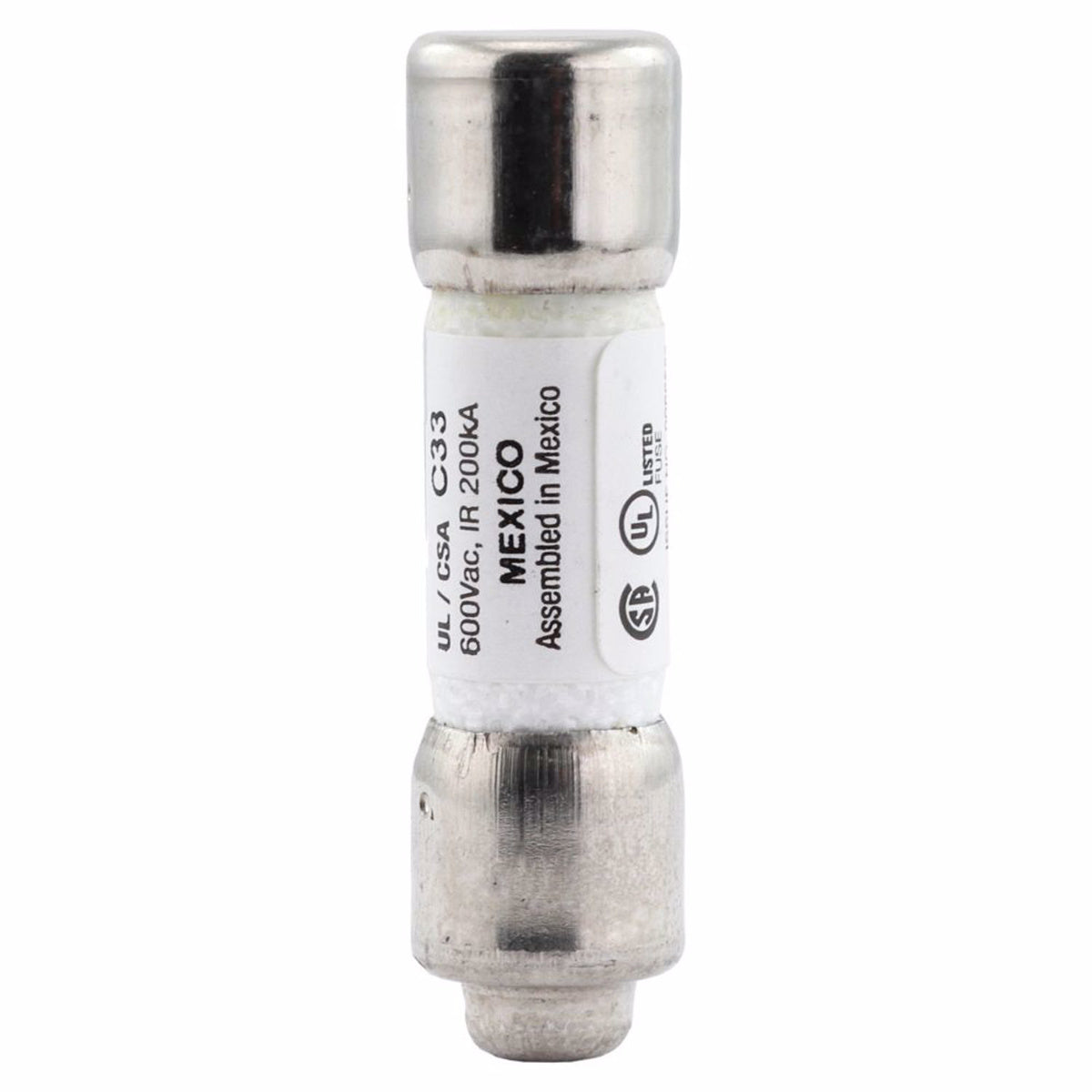

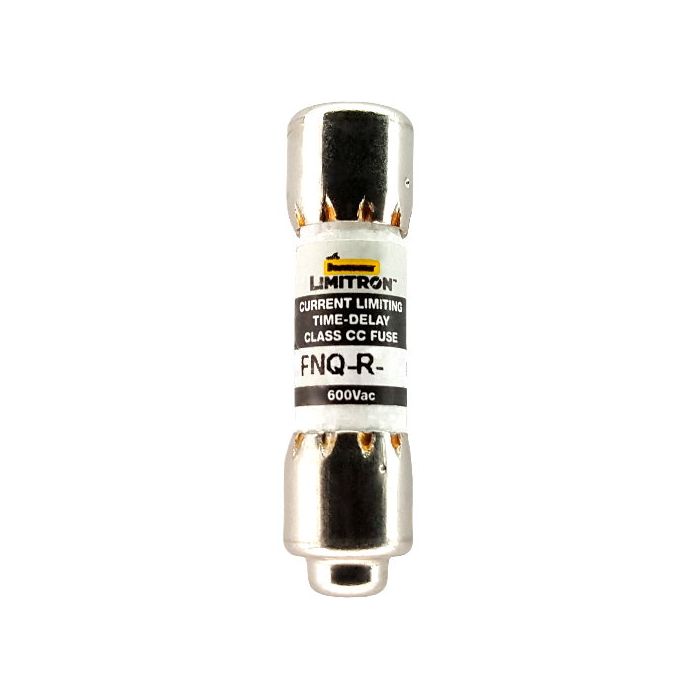

EATON BUSSMANN FNQ-R-3-1/2 Class CC Time Delay Fuse

Product Description

The EATON BUSSMANN FNQ-R-3-1/2 is a Class CC time-delay fuse suitable for circuit transformer protection. This fuse meets UL listing and CSA certification for reliable use in various applications. With an interrupting rating of 200,000 AIC at six hundred VAC, it offers protection for specialized circuits, industrial control systems, and small control transformers.

• UL approved and CSA certified
• Robust interrupting rating of 200,000 AIC
• Constructed with durable melamine body and ferrule terminals

Product Highlights

This time-delay fuse is ideal for use in industrial and commercial settings where circuit protection is essential.

Product Information

Standard Information

• Brand: Eaton Bussmann
• Amperage: 3-1/2 A

Technical Specifications

• Voltage: 600 V
• AC Voltage Rating: 600
• Fuse Class: Class CC
• Fuse Speed: Time Delay
• Interrupting Rating: 200 kA
• Mounting Type: Clip
• Terminal Type: Ferrule
• Material: Melamine
• Length: 1-1/2 inches
• Diameter: 13/32 inches
• Indicator Type: Non-indicating
• Rejecting: Rejection
• UL Listed: Std. 248-4, Guide JDDZ, File E4273
• CSA Certified: Class CC CSA, Class 1422-01File 53787
