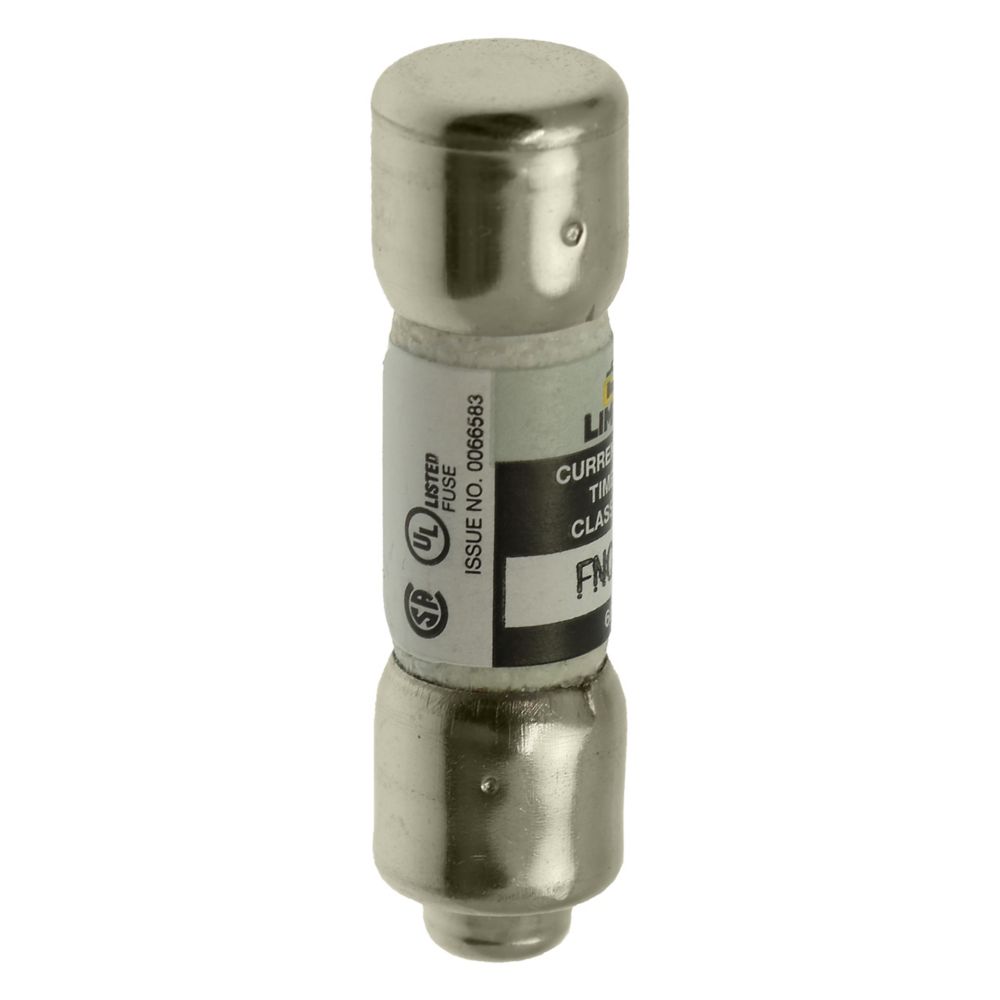

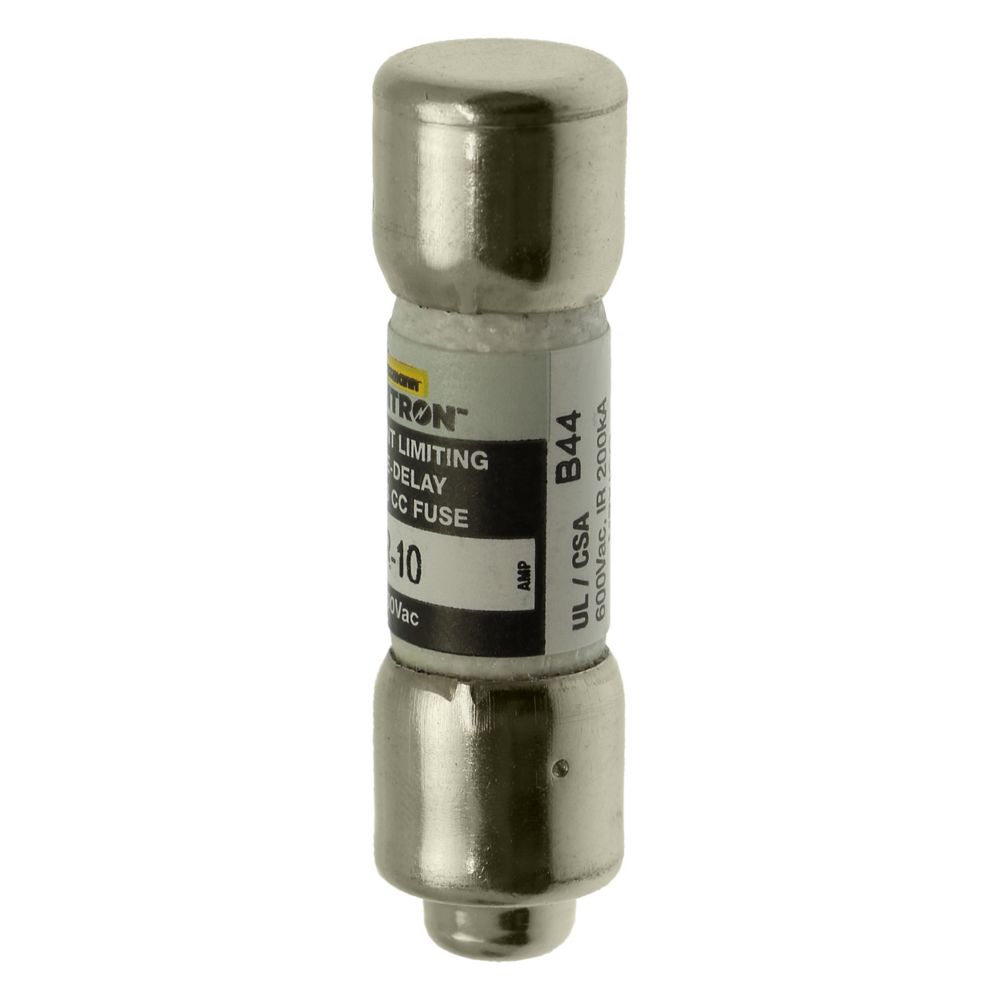

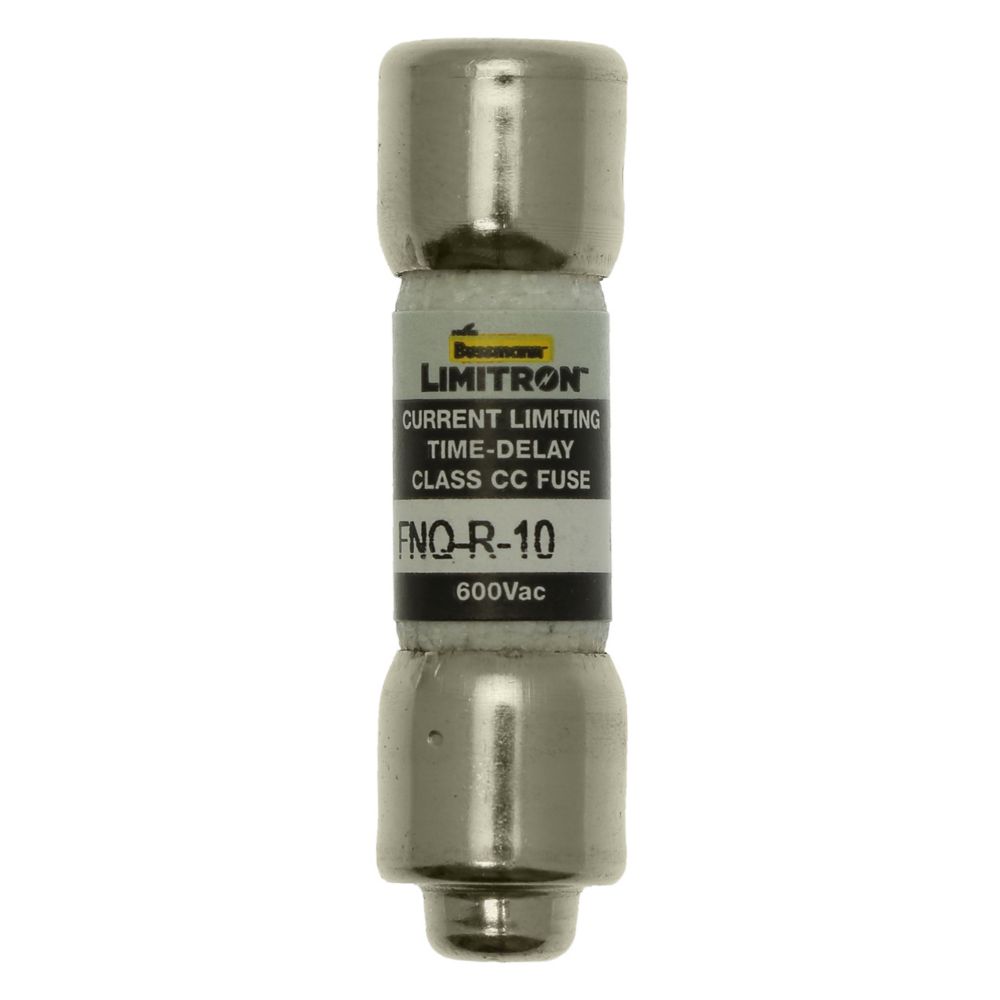

EATON BUSSMANN FNQ-R-10 Eaton Bussmann FNQ-R-10 Class CC Time-Delay Fuse

Product Description

The Eaton Bussmann FNQ-R-10 is a Class CC time-delay fuse designed for circuit protection. This ten amp fuse features a rejection style and a high interrupting rating of 200kA at 600Vac, making it suitable for various applications.

• Class CC rejection style fuse optimized for safety.
• Time-delay function suitable for control transformers.
• Interrupting rating of 200kA at 600Vac.

Product Highlights

This fuse is ideal for applications where current limiting is essential.

Product Information

Standard Information

• Part Number: FNQ-R-10
• Manufacturer: Bussmann

Technical Specifications

• Family: CC-Tron
• Current Rating: 10 Ampere
• Voltage Rating: 600 Vac
• Category: Fuses
• Type: Class CC Rejection
• AIC Ratings: 100kA at 480V
• Weight: 1 lbs
• Diameter: 13/32 inch
• Characteristics: Time Delay
• Approval: UL 248-4, CSA, CE
• Length: 1-1/2 inch
• Interrupting Rating: 200000 Ampere (Symmetrical)
• Construction: Melamine Tube
• Terminal Type: Ferrule
• Mfr UNSPSC: 39121609
