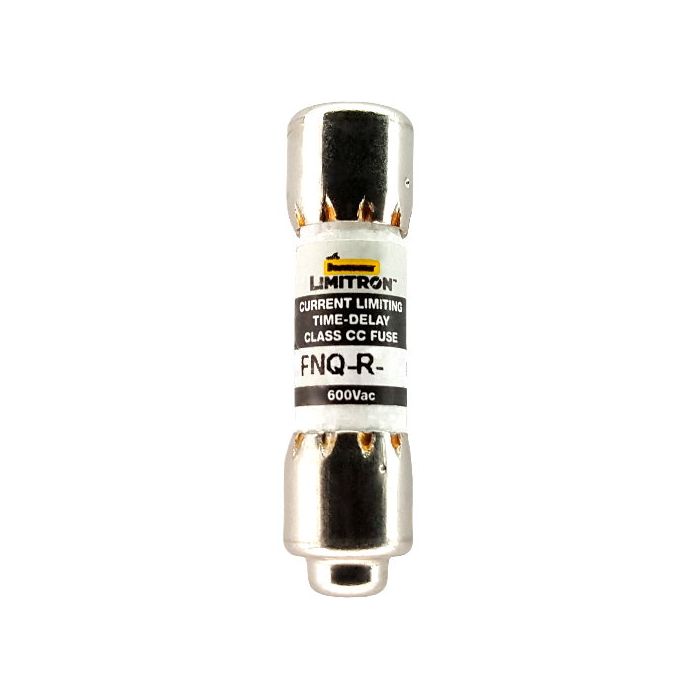

EATON BUSSMANN FNQ-R-1/4 Fuse, 1/4 Amp, 600V, Class CC, Time Delay

Product Description

The EATON BUSSMANN FNQ-R-1/4 is a time-delay fuse with a current rating of one-quarter amp and a voltage rating of six hundred volts AC. This fuse is designed for specific protection in control circuit transformers.

• Current Rating: 1/4 Amp
• Voltage Rating: 600V AC
• Fuse Class: CC, Time Delay

Product Highlights

This fuse features a high interrupting capacity and is compact in size, making it suitable for various applications.

Product Information

Standard Information

• UPC: 051712147002
• Fuse Size: 13/32 x 1 1/2 inches

Technical Specifications

• AC Voltage Rating: 600
• Interrupting Rating: 200,000 AIC @ 600 VAC
• UL Listed: Std. 248-4, Guide JDDZ, File E4273
• CSA Certified: Class CC CSA, Class 1422-01, File 53787
• Fuse Speed: Time Delay
