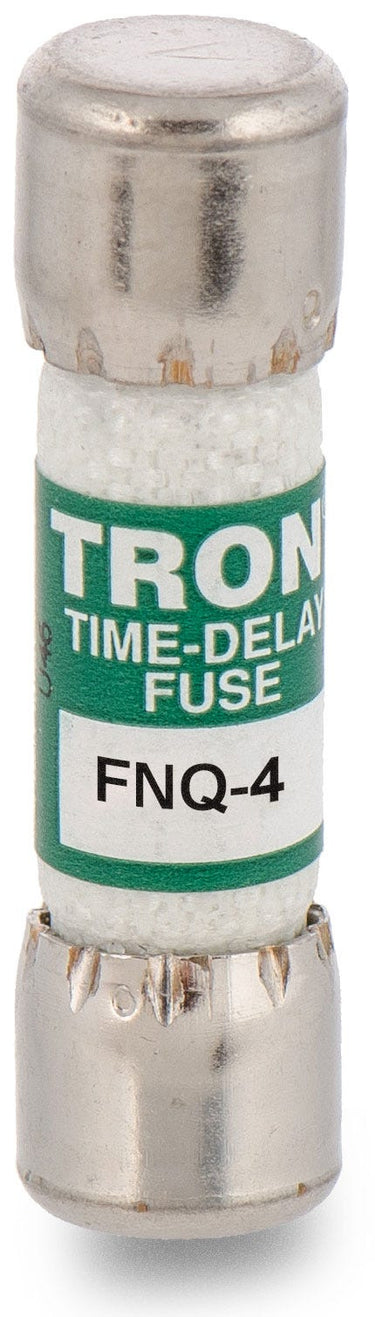

Eaton Bussmann FNQ-4 Time Delay Midget Fuse 4A 500V AC 1-1/2 inches L x 13/32 inches Dia

Product Description

The EATON BUSSMANN FNQ-4 is a 4A, 500V AC Time Delay Midget Fuse from the FNQ Series. This cylindrical, nonindicating, dual element fuse measures 1-1/2 inches in length and 13/32 inches in diameter. Designed for circuits with in-rush currents, it provides reliable overcurrent protection with a 10kA interrupt rating at 500V AC. Its fiberglass body material ensures durability, making it suitable for various electrical applications requiring time-delay characteristics.

• Time Delay, 4A, 500V AC operation for effective circuit protection.
• Midget Class, nonindicating, dual element fuse with a cylindrical fiberglass body.
• 10kA interrupt rating at 500V AC, measuring 1-1/2" L x 13/32" dia.

Product Highlights

Time delay midget fuse for in-rush current protection in 500V AC systems.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: FNQ-4
• Country of Origin: Mexico

Technical Specifications

• Amperage: 4A
• Product Type: Fuse
• Fuse Class: Midget
• Fuse Speed: Time Delay
• Series: FNQ
• Element Type: Dual
• Certifications: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Body Style: Cylindrical
• Body Material: Fiberglass
• Connection Type: Ferrule End x Ferrule End
• Fuse Holder Code: D
• Interrupt Rating: 10kA at 500V AC
• Voltage Rating AC: 500V AC
• Voltage Rating DC: Not Rated
• Equivalent Series: ATQ, FLQ, FNQ, HC10S
• Visual Indication: Nonindicating
• Rejection Type: Nonrejection
• Compatible Fuse Block Series: BM, BMM, C2617, C5268, CHM, HEB, HET, HEX, HPG, HPS, OPM-1038, OPM-NG
• Environmental Compliance: RoHS 2011/65/EU Compliant
• Endcap Material: Nickel-plated bronze
• Packaging Type: Standard
• Mounting Type: Holder
