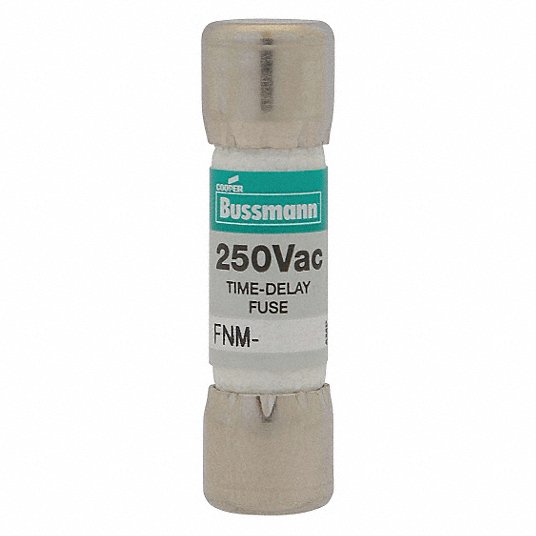

Eaton Bussmann FNM-4 Fuse MDGT 4A 250VAC 200A Supplemental TD

Product Description

The Eaton Bussmann FNM-4 is a Fusetron™ time delay midget fuse rated at 4 A and 250 VAC with a 200 A interrupt rating. This supplemental class fuse features a cylindrical body and is suitable for low cost supplemental protection of 125 and 250 VAC inductive circuits, general purpose circuits, lighting circuit protection and meter circuits.

• Time Delay
• Midget Fuse
• Superior overload and cycling capabilities

Product Highlights

The Eaton Bussmann FNM-4 fuse offers reliable time-delay functionality in a compact midget fuse size. It provides overload and cycling capabilities for various applications.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: FNM-4
• Country of Origin: Mexico

Technical Specifications

• Amperage: 4 A
• Voltage: 250 VAC
• Interrupt Rating: 200 A
• Class: Supplemental
• Body Style: Cylindrical
• Speed: Time-Delay
• Series: FNM
• Element: Dual
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Body Material: Fiberglass
• Connection Type: Ferrule end x ferrule end
• AC Voltage Rating: 250V AC
• DC Voltage Rating: Not Rated
• Equivalent Series: FLM, FNM, TRM
• Visual Indication: Nonindicating
• Fuse Voltage Rating: 250VAC
• Fits Fuse Block Style: Nonrejection
• Rejection / Nonrejection: Nonrejection
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann FNM, Littelfuse FLM, Mersen TRM
• Compatible Fuse Block Series: BM, BMM, C2617, C5268, CHM, HEB, HEX, HPG, HPS, OPM-1038, OPM-NG
• Product Name: Eaton Bussmann series FNM fuse
• Catalog Number: FNM-4
• UPC: 051712520409
• EAN: 5027590449540
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 4 A
• Interrupt rating: 200 AIC at 250 Vac 10 kAIC at 125 Vac
• Voltage rating: 250 V
• Material: Nickel-plated bronze endcap
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Superior overload and cycling capabilities
• Interrupt Rating - AC: 200 A; 10 kA
