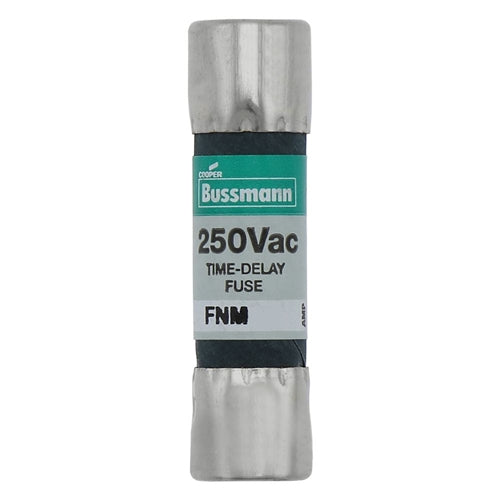

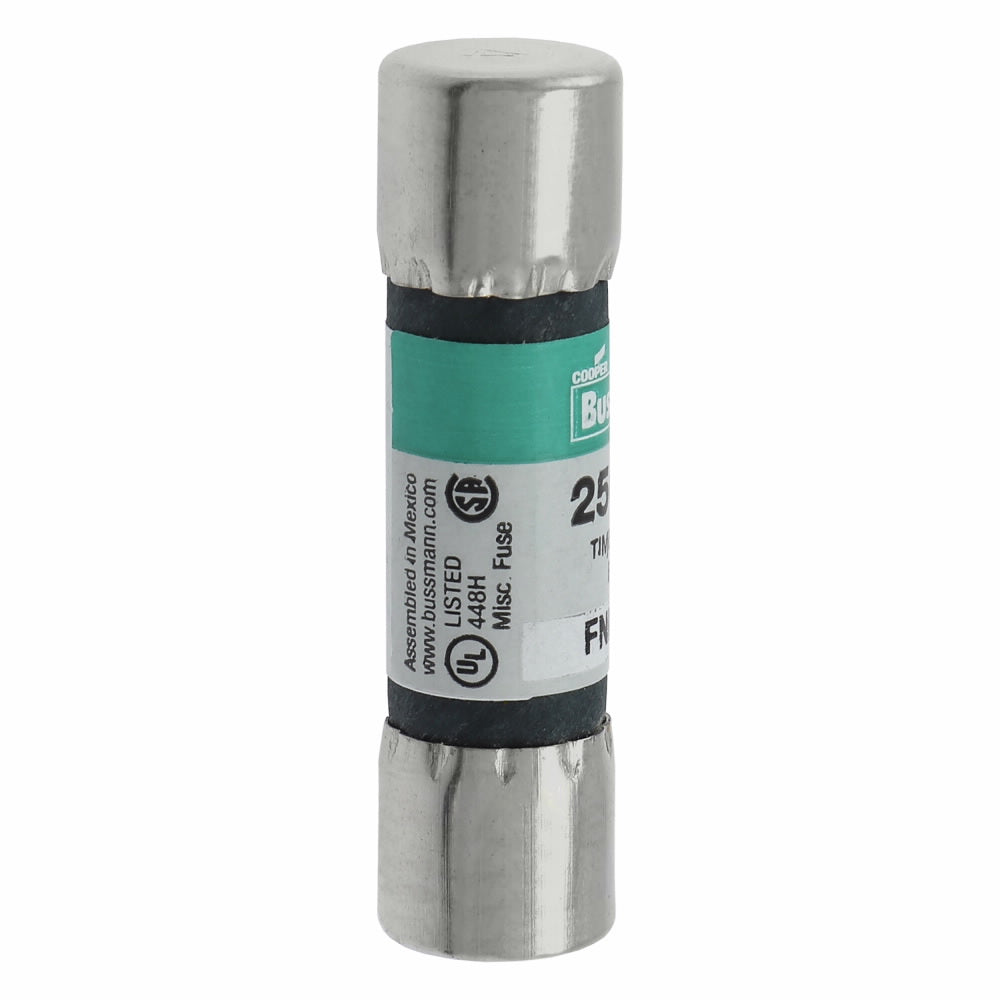

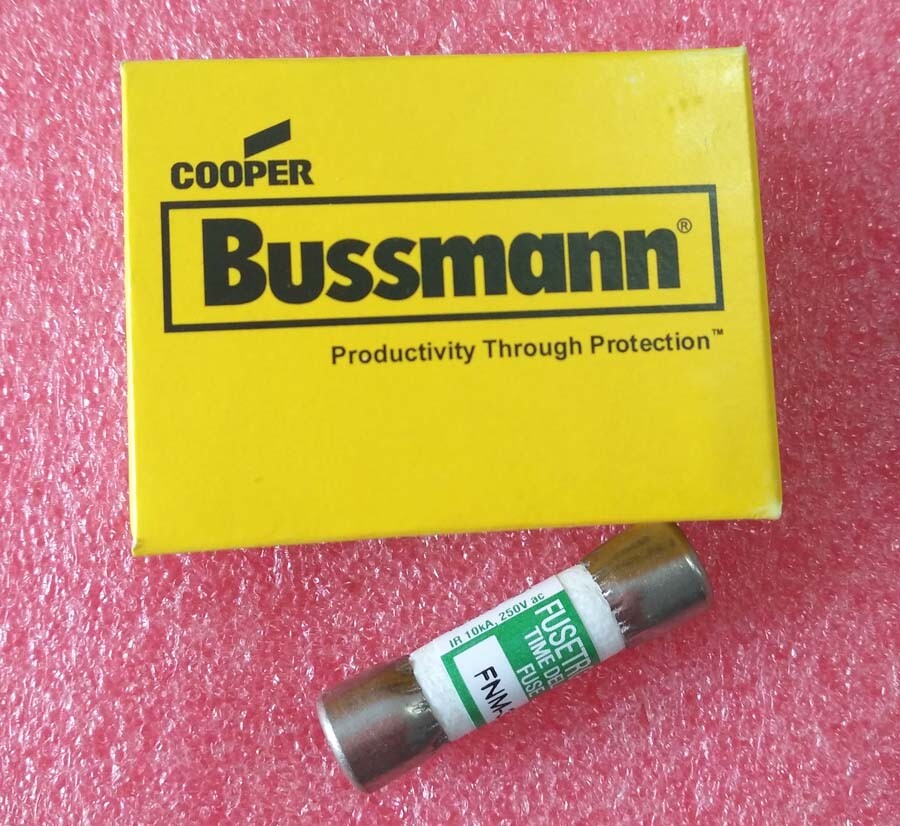

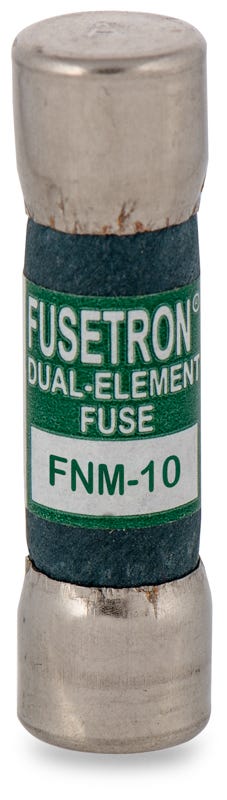

Eaton Bussmann FNM-10 Fuse

Product Description

The Eaton Bussmann FNM-10 is a time-delay supplemental fuse suitable for industrial and electrical applications. This midget fuse, part of the Fusetron FNM series, provides reliable circuit protection for systems with high inrush currents, particularly in motor and transformer loads. It is designed for circuits requiring up to 250VAC and offers supplemental protection for inductive circuits.

• Time-delay fuse for managing temporary overloads.
• Nickel-plated brass end caps for reliable connection.
• Durable melamine tube construction.

Product Highlights

The Eaton Bussmann FNM-10 is essential for protecting electrical circuits from overloads while withstanding temporary surges.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: FNM-10

Technical Specifications

• Fuse Type: Time Delay / Slow Blow
• Current Rating: 10 A
• Voltage Rating AC: 250 VAC
• Interrupt Rating: 35 A at 250 VAC, 10 kA at 125 VAC
• Fuse Size Metric: 10.3mm x 38.1mm
• Fuse Size Imperial: 13/32 x 1-1/2
• Connection: Ferrule End x Ferrule End
