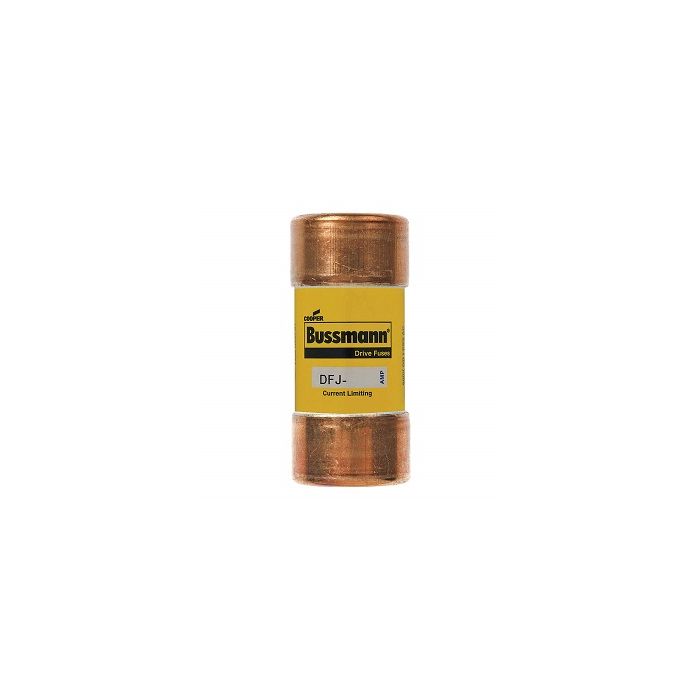

Eaton Bussmann DFJ-30 High Speed Fuse

Product Description

The Eaton Bussmann DFJ-30 is a Class J high-speed fuse designed for the protection of power semiconductors and solid-state motor controllers. This current-limiting fuse provides excellent cycling ability and is ideal for protecting components like diodes, SCRs, GTOs, and IGBTs. It features a durable melamine tube construction with a secure clip-lock connection, ensuring reliable operation. The fuse is UL Listed and CSA Certified, making it suitable for various applications.

• UL Class J Fuse
• Current Limiting
• AC Interrupting Rating: 200,000 AIC

Product Highlights

The Eaton Bussmann DFJ-30 offers high-speed protection, effectively limiting current for enhanced safety in electrical circuits.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: DFJ-30

Technical Specifications

• Amperage Rating: 30
• Voltage Rating: 600 Vac or less, 450 Vdc or less
• AC Voltage Rating: 600
• DC Voltage Rating: 500
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Connection: Clip-lock
• Material: Melamine tube
• Standard: CSA Certified, UL Listed, CE Marked, RoHS Compliant
• Dimensions: 0.7400 inches x 0.7400 inches x 2.2700 inches
• UPC: 051712653329
• GTIN: 00051712653329
• Item Type: High speed fuse
