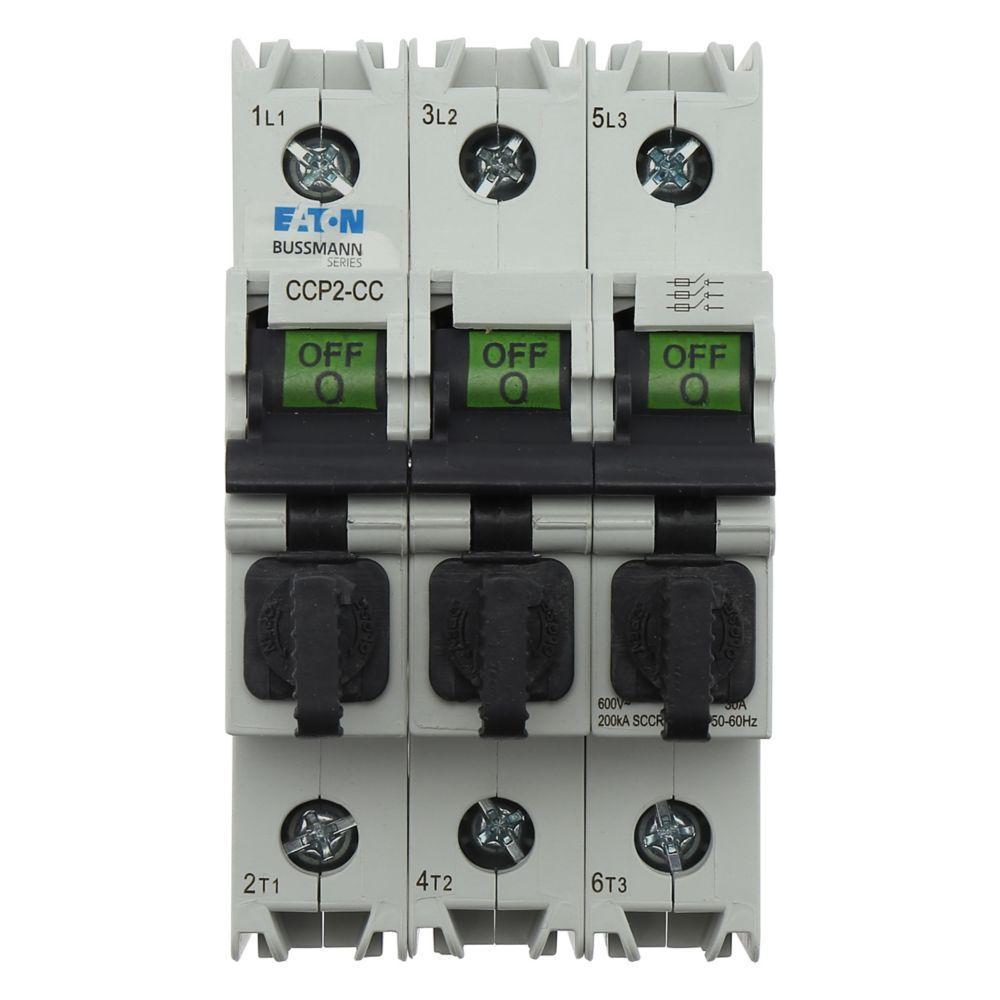

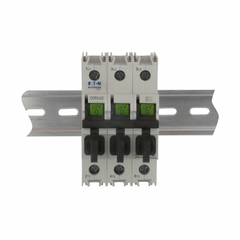

Eaton Bussmann CCP2-3-30CC Fusbl Ct Protr 30A

Product Description

The EATON BUSSMANN CCP2-3-30CC is a UL98 fusible disconnect rated at 600 Vac and 125 Vdc with a 30A amperage rating. This three-pole disconnect switch simplifies selective coordination and allows for isolation of individual branch circuit loads. It features a finger-safe design and a 1/4" LOTO feature.

• Finger Safe design
• Features 1/4" LOTO
• UL98 fusible disconnect

Product Highlights

The EATON BUSSMANN CCP2-3-30CC fusible disconnect is a compact and reliable solution for branch circuit protection.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: CCP2-3-30CC
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Bussmann series CCP UL98 fusible disconnect
• Catalog Number: CCP2-3-30CC
• UPC: 051712709187
• Product Length/Depth: 3.9 in
• Product Height: 3.1 in
• Product Width: 2.1 in
• Compliances: RoHS Compliant
• Certifications: UL 98
• Product Type: UL98 fusible disconnect
• Amperage Rating: 30A
• Frequency rating: 50/60 Hz
• Short-circuit rating: 200 kA
• Voltage rating: 600 Vac, 125 Vdc
• Fuse type: Class CC
• Number of poles: Three-pole
• Special features: Finger Safe, 1/4" LOTO
• Suitable for fuses: LP-CC-1/2 to LP-CC-30 KTK-R-1/10 to KTK-R-30 FNQ-R-1/4 to FNQ-R-30
• Application: Fused disconnect switch
• Brand: Bussmann by Eaton
• Class: Class CC
• Current Rating: 30 A
• Manufacturer Part Number: CCP2-3-30CC
• Maximum Current: 30 A

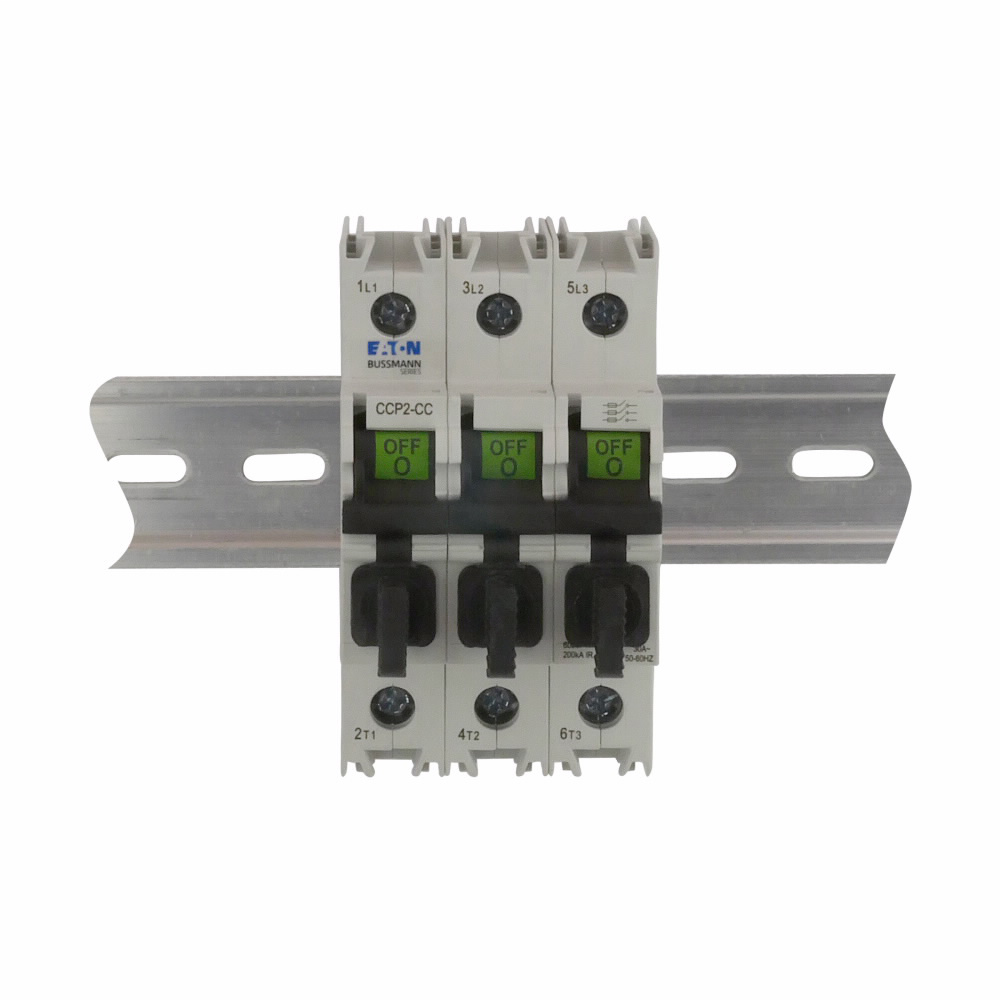

• Mounting Type: DIN Rail Mount
• Series: CCP2 Series
• Shape: RECTANGULAR
• Terminal Type: Lugs
• Type: UL98 fusible disconnect
• UPC Code: 51712709187
• Manufacturer: Eaton
• Product Category: Disconnect Switches
• Packaging: Bulk
• Subcategory: Switches
• Tradename: CUBEFuse
