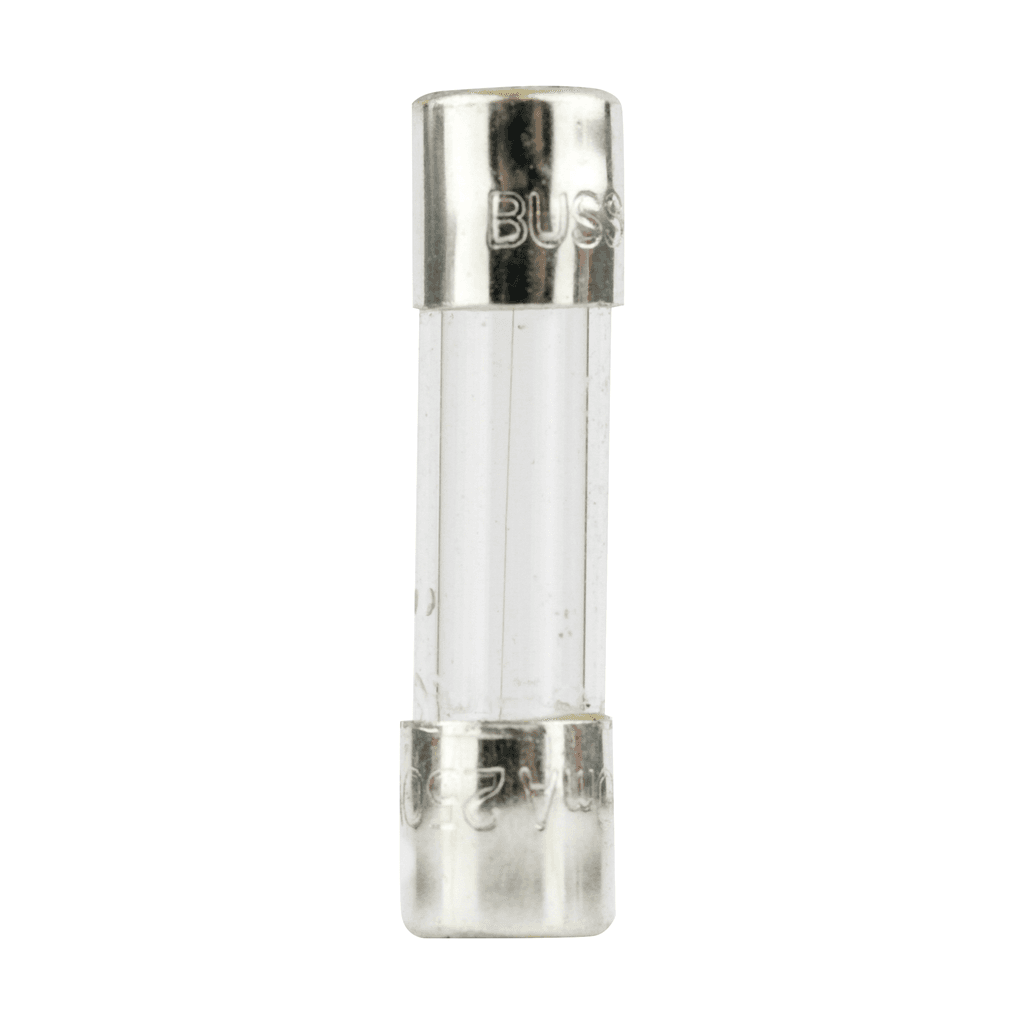

EATON BUSSMANN BK/S500-5-R Series S500 Fast-acting Fuse 5A

Product Description

The Eaton Bussmann BK/S500-5-R is a series S500 fast-acting fuse with a amperage rating of 5A. This fuse is suitable for electronic circuits. It operates at a voltage rating of 250 Vac or less and 32 Vdc. It has a glass tube with nickel-plated end-cap construction and features ferrule end connections.

• Fast-acting fuse for electronic circuits
• Voltage rating of 250 Vac or less, 32 Vdc
• Ferrule end x ferrule end connection

Product Highlights

This fuse is designed for quick response to overcurrent conditions in electronic circuits, ensuring reliable protection of sensitive components.

Product Information

Standard Information

• Product Name: Eaton Bussmann series S500 fast-acting fuse
• Catalog Number: BK/S500-5-R

Technical Specifications

• UPC: 051712643641
• Product Height: 20.5 mm
• Product Diameter: 5.2 mm
• Compliances: RoHS Compliant, CCC Marked, CE Marked
• Certifications: VDE
• Amperage Rating: 5 A
• Voltage drop: 120 mV maximum
• Interrupt rating: 50 AIC at 250 Vac
• Fuse indicator: Non-indicating
• Material: Glass tube, Nickel-plated end-cap construction
• Body Style: Cylindrical
• Packaging: Bulk
• Product Category: Cartridge Fuses
