Eaton Bussmann AGC-5-R Fuse

Product Description

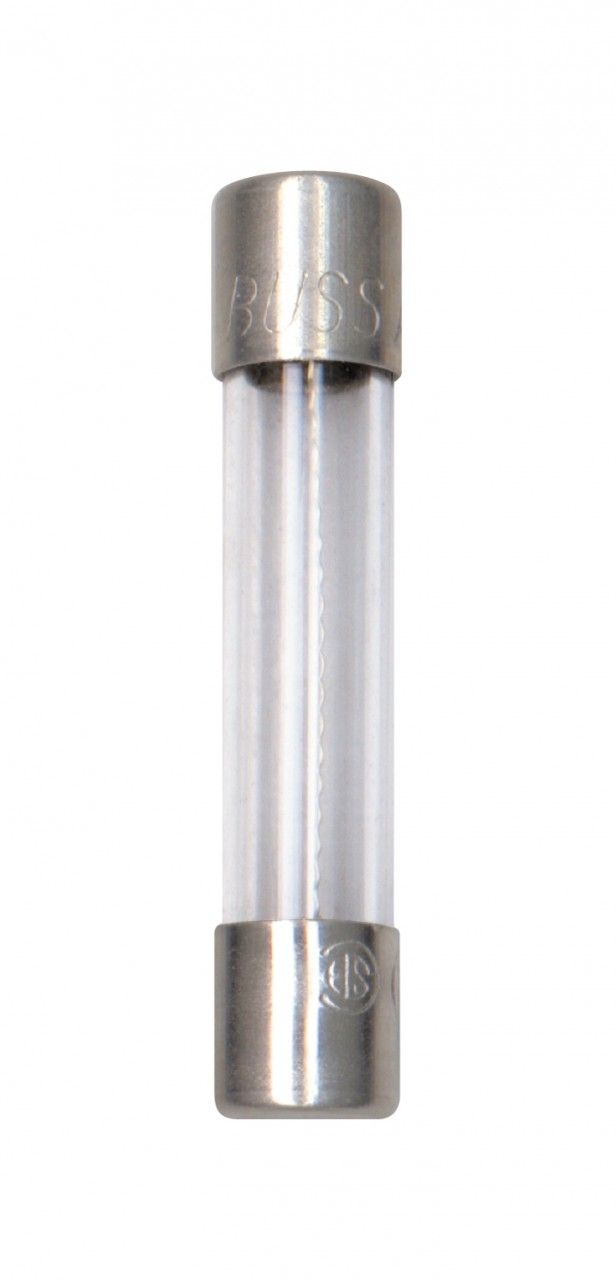

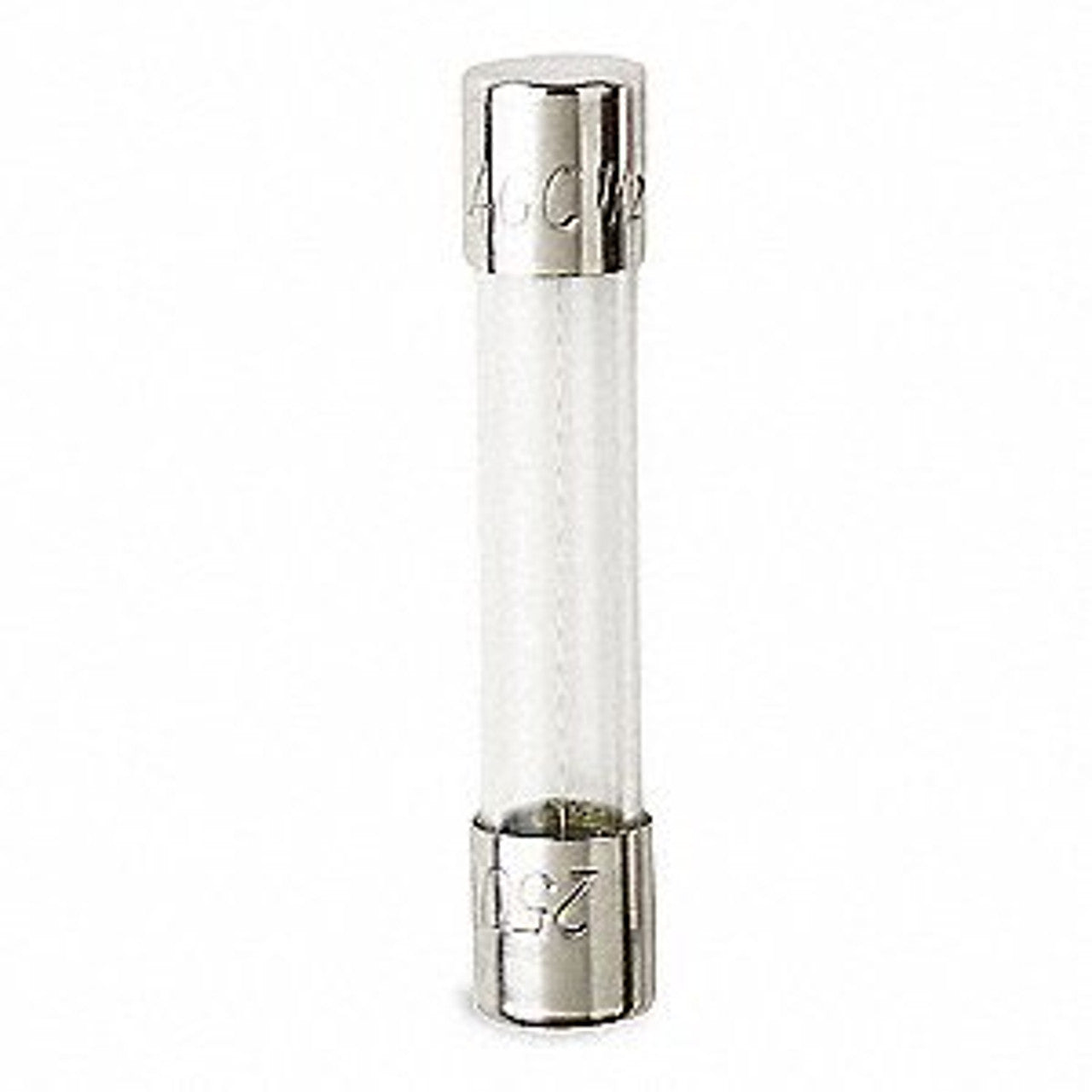

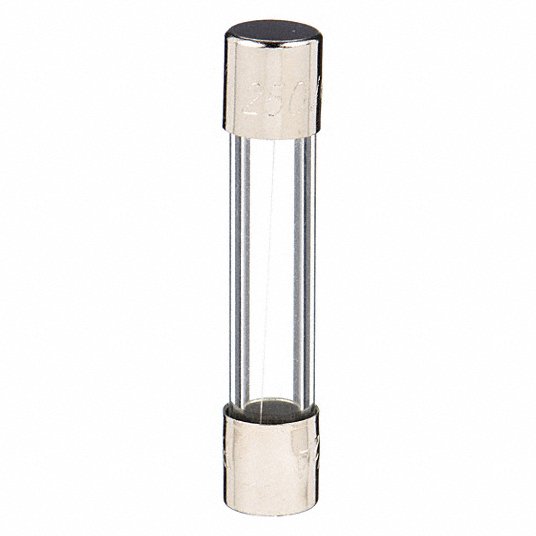

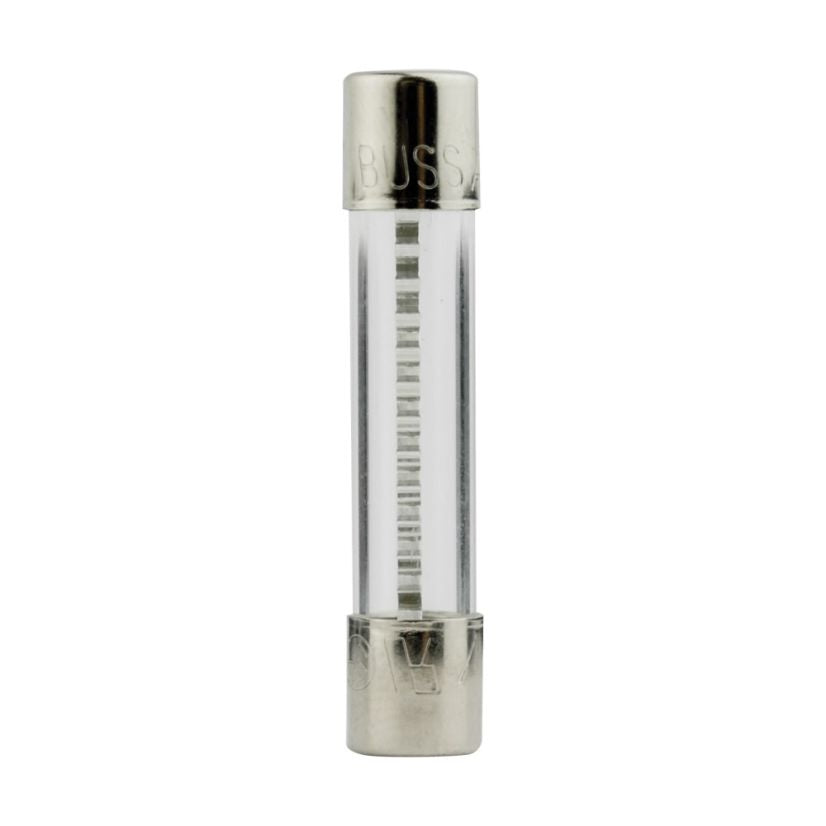

The Eaton Bussmann AGC-5-R is a fast-acting fuse designed for overcurrent protection in electronic circuits. This fuse measures one-fourth inch in diameter and is one and one-fourth inches long. It features a glass tube construction and comes equipped with nickel-plated brass end caps to enhance durability. The AGC-5-R helps avoid incorrect fuse installations by preventing the use of incompatible fuse types.

• Fast-acting for reliable component protection.
• Glass tube design with compact dimensions.
• UL Listed under standard 248-14.

Product Highlights

The AGC-5-R is ideal for Bussmann series fuse holders, blocks, or clips and may also be utilized with axial leads for through-hole mounting.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: AGC-5-R

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 250 VAC, 32 VDC
• Body Size: 1/4 inch diameter x 1-1/4 inches length
• Fuse Size Metric: 6.3mm x 32mm
• Interrupt Rating AC: 10 kA, 1 kA
• Interrupt Rating: 200 A, 10 kA
• Material: Glass tube, nickel-plated brass end cap
• Speed: Fast Acting
• Fuse Series: AGC
