Eaton Bussmann abc-10-r Fast-acting Fuse 10A 250V Ac

Product Description

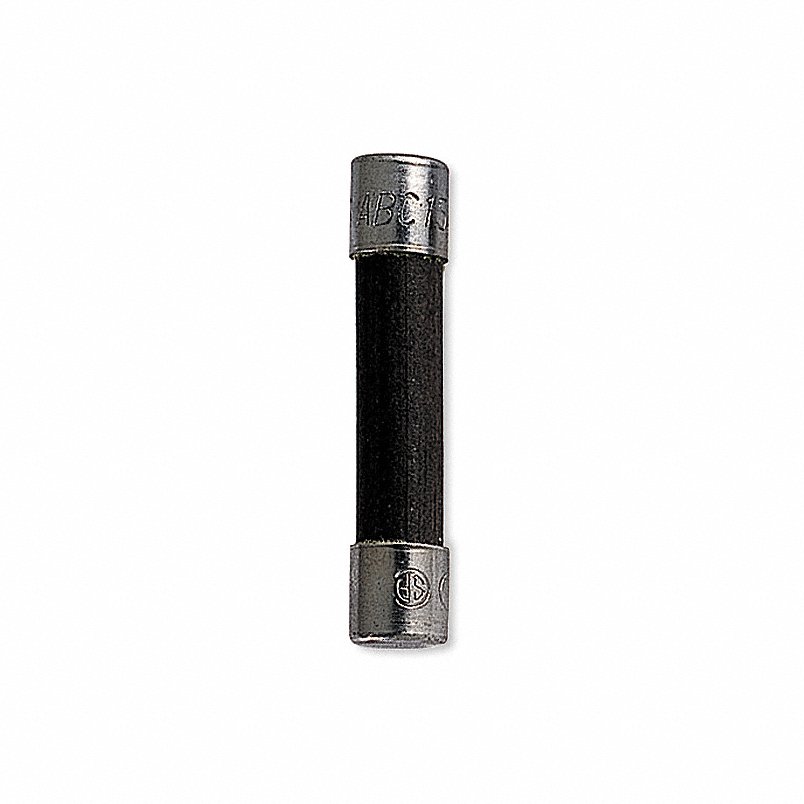

The EATON BUSSMANN abc-10-r is a fast-acting cylindrical fuse rated at 10 amps and 250 volts AC, designed to provide rapid overcurrent protection for current-sensitive electrical equipment. Also referred to as a fast-blow fuse, it responds quickly to fault conditions, limiting damage to downstream components. The tube-shaped body features conductive metal end caps that seat securely in standard clip-style fuse holders, making replacement straightforward for licensed electricians and experienced technicians. At 1/4 inch in diameter and 1 1/4 inches in length, it conforms to the widely used ABC series form factor.

This fuse is suited for use in control panels, instrumentation, HVAC control circuits, light commercial equipment, and other applications where fast-acting protection of sensitive electronics is required. The non-indicating design means there is no visual blown-fuse indicator, so a fuse tester or multimeter should be used during troubleshooting to confirm continuity. It fits standard clip-style holders designed for the 1/4 inch x 1 1/4 inch form factor, common in both residential and light commercial electrical installations.

Key Features

• Fast-acting response for protection of current-sensitive equipment and components
• Rated 10 amps at 250 volts AC for use in low-voltage control and instrumentation circuits
• Standard 1/4 inch x 1 1/4 inch cylindrical body fits clip-style holders
• Conductive metal end caps allow quick installation and removal without tools
• Non-indicating design — verify with a multimeter or fuse tester when diagnosing blown fuses
• ABC series form factor with GAB cross-reference compatibility

Compatibility

Designed as a direct-fit replacement for ABC series and GAB series fuse positions requiring a 1/4 inch x 1 1/4 inch fast-acting fuse rated at 10A and 250V AC in clip-style fuse holders.

Installation Notes

Installation and replacement should be performed by a qualified electrician or trade technician. Always de-energize and lock out the circuit before removing or installing a fuse. Confirm the replacement fuse matches the original amperage and voltage rating exactly — substituting a higher-rated fuse can damage equipment or create a fire hazard. Use a fuse puller or insulated tool when working in energized panels, and verify continuity after installation with a calibrated multimeter.

Technical Specifications

• Series: ABC
• Fuse Type: Fast-Acting
• Amperage Rating: 10 amps
• Voltage Rating: 250 volts AC
• Indicating: Non-Indicating
• Diameter: 1/4 inch
• Length: 1 1/4 inches
• Shipping Weight: 0.04 pounds

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: abc-10-r
