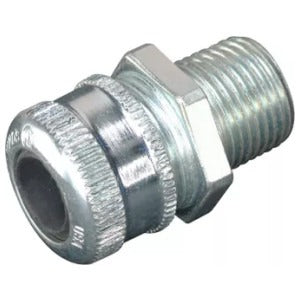

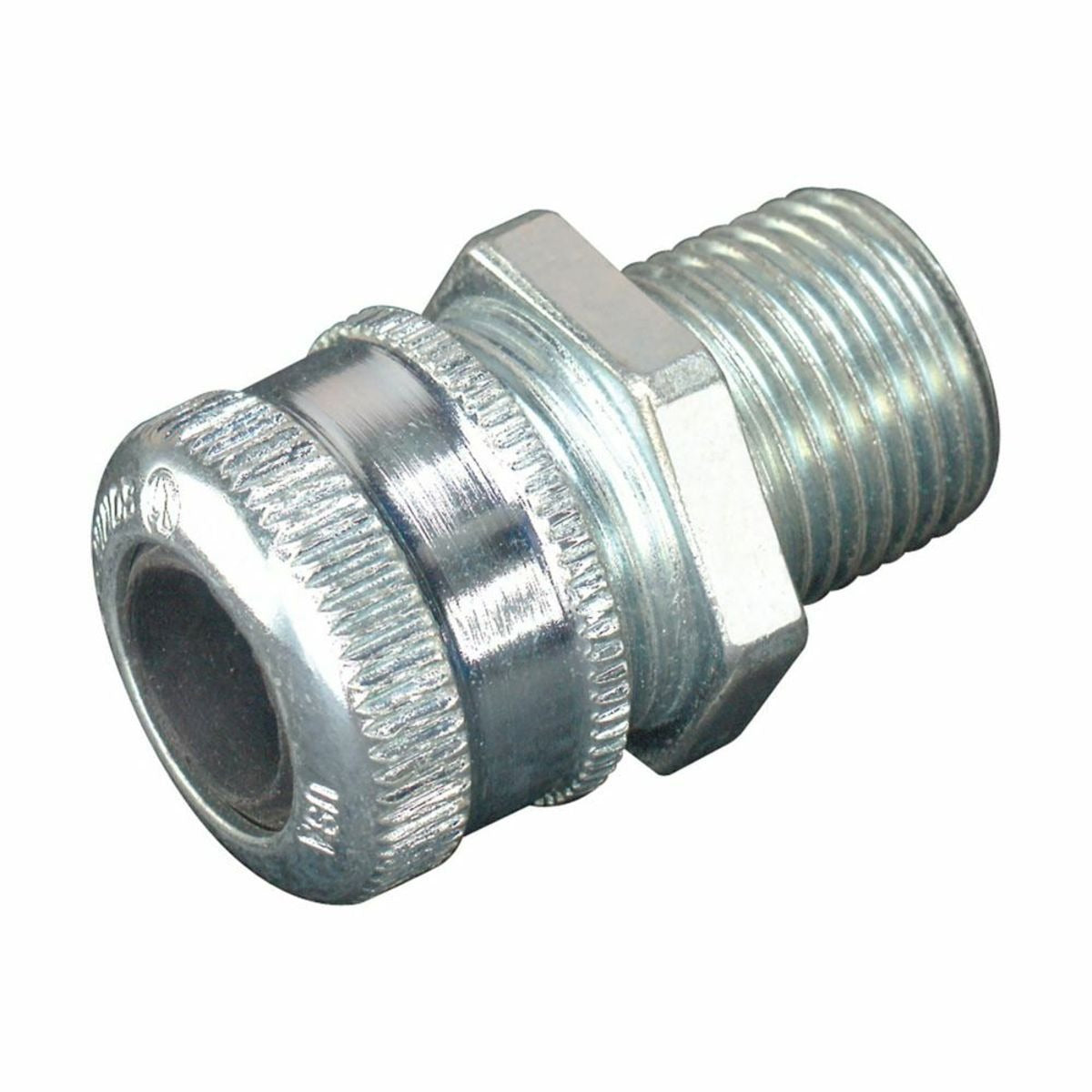

Eaton BUSH92 CGB Cable Gland Bushing (3/8, 1/2, 3/4 in NPT)

EATON
Brand: EATON
SKU: BUSH92
Availability: In Stock

Ships same day if ordered by 12 pm
$18.17
$18.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton BUSH92 is a neoprene cable gland bushing for CGB series non-armored glands that provides an environmental seal and secure termination for unarmored round cables and flexible cord. The bushing fits 3/8, 1/2, or 3/4 in NPT threads, accepts 1/8 to 1/4 in diameter cable, and is rated to 80°C. It is listed to UL and CSA standards and may be suitable for Class I, Division 2 service when installed per NEC501.10(B)(4).

  • Neoprene construction; continuous temperature rating 80°C; UL and CSA listed
  • Fits 3/8, 1/2, 3/4 in NPT threads and accepts 1/8 to 1/4 in cable diameter
  • Forms environmental seal for unarmored cables; compatible with CGB series glands and multiple tray and flexible cord types

Product Highlights

Neoprene sealing bushing for CGB series; fits 3/8–3/4 in NPT; accepts 1/8–1/4 in cable; 80°C rating; UL and CSA listed; suitable with specified tray and flexible cable types

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: BUSH92
  • Country of Origin: United States
Technical Specifications
Manufacturer
Eaton Crouse-Hinds
Brand
Eaton
Manufacturer Part Number
BUSH92
Series
CGB
Product Type
Cable gland bushing
Material
Neoprene
Temperature Rating
80°C
Thread Sizes
3/8", 1/2" or 3/4" NPT
Thread Type
NPT
Cable Diameter
1/8 to 1/4 in
Dimensions (L x H x W)
0.88 in x 0.88 in x 0.63 in
Weight
0.028 lb
Area Classification / Application
Ordinary/Non-Hazardous Locations; industrial facilities/factories
Standards/Approvals
UL Listed; CSA; suitable for Class I, Division 2 when installed per NEC501.10(B)(4)
Suitable For Use With
CGB Series 3/8, 1/2 and 3/4 in NPT non-armored cable glands; tray cable types TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC, PLTC-ER; flexible cord types S, SO, STO, ST, SJ, SJT, SJTO, SVO
Compatible With / Use With
CGB3894, 194, 294, 394; CGD194, 294; CGE194, 294; CGK194 (as referenced)
Country of Origin
United States
UPC
782274109800
GTIN
00782274109800
Package Type
Each
