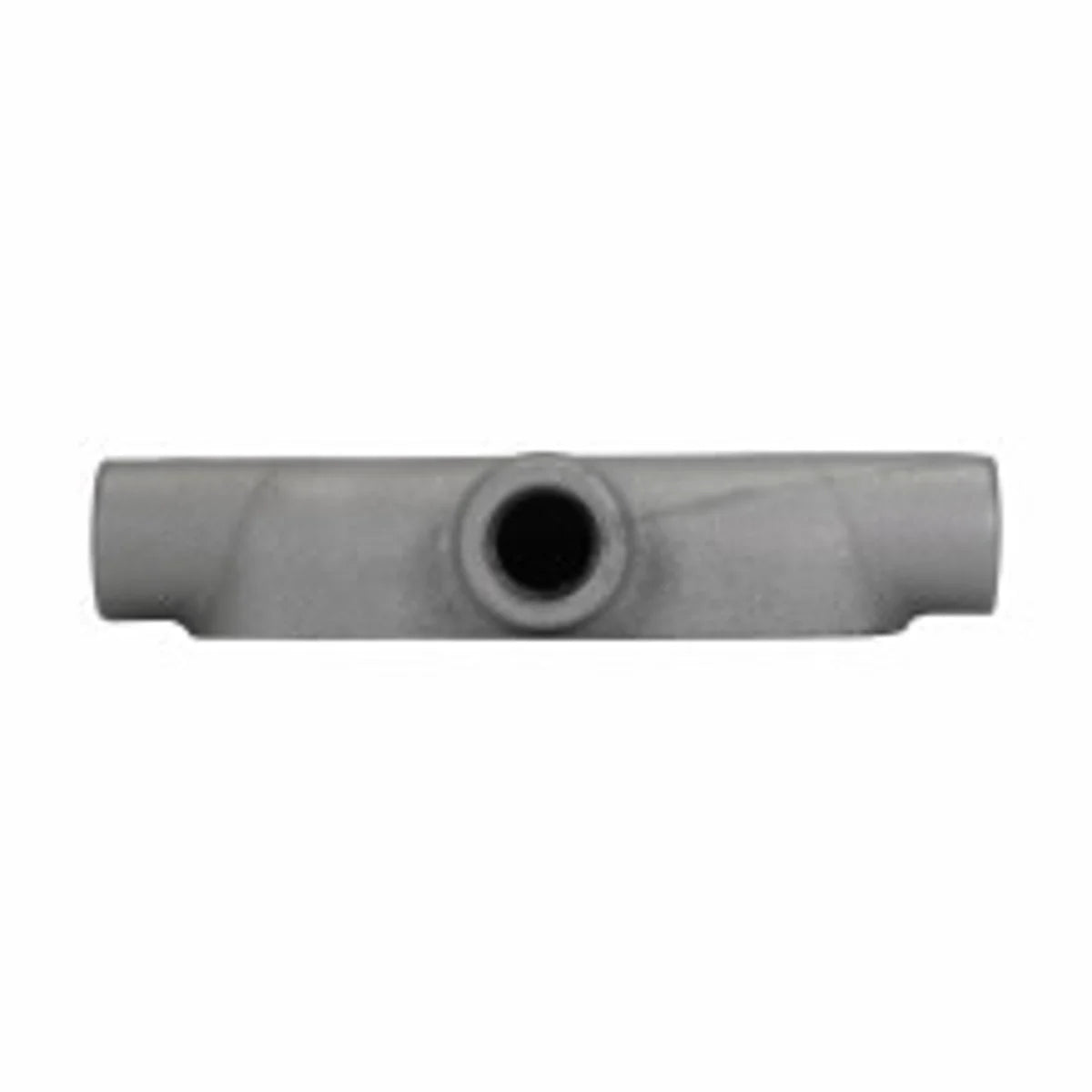

Eaton BT6 Crouse-Hinds series conduit body, Type BT, 2 in Hub, Copper-Free Aluminum, Electro-Galvanized

Product Description

The Eaton BT6 is a Crouse-Hinds series conduit body designed for use in conduit systems. It acts as a pull outlet for conductors that may be stiff due to their size or insulation type. This conduit body facilitates easier pulling of large conductors while preventing sharp bends and kinks during installation. Made from copper-free aluminum, the BT6 provides durability and strength.

• Compatible with trade sizes from half inch to six inches.
• Available in Feraloy iron alloy and copper-free aluminum.
• Hot dip galvanized finish available for additional corrosion protection.

Product Highlights

The BT6 conduit body is particularly useful in industrial facilities, providing longer openings needed for pulling large conductors. It is UL and CSA listed, ensuring compliance with regulatory standards.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Country of Origin: United States

Technical Specifications

• Catalog Number: BT6
• Material: Copper-Free Aluminum
• Hub Size: 2 in
• Number of Hubs: 3
• Dimensions: 13-3/4 in L x 4-1/16 in W x 3-1/8 in H
• Standards/Approvals: UL 514B, CSA C22.2 No. 18, Federal Specification W-C-586D
• Connection Type: Thread
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
