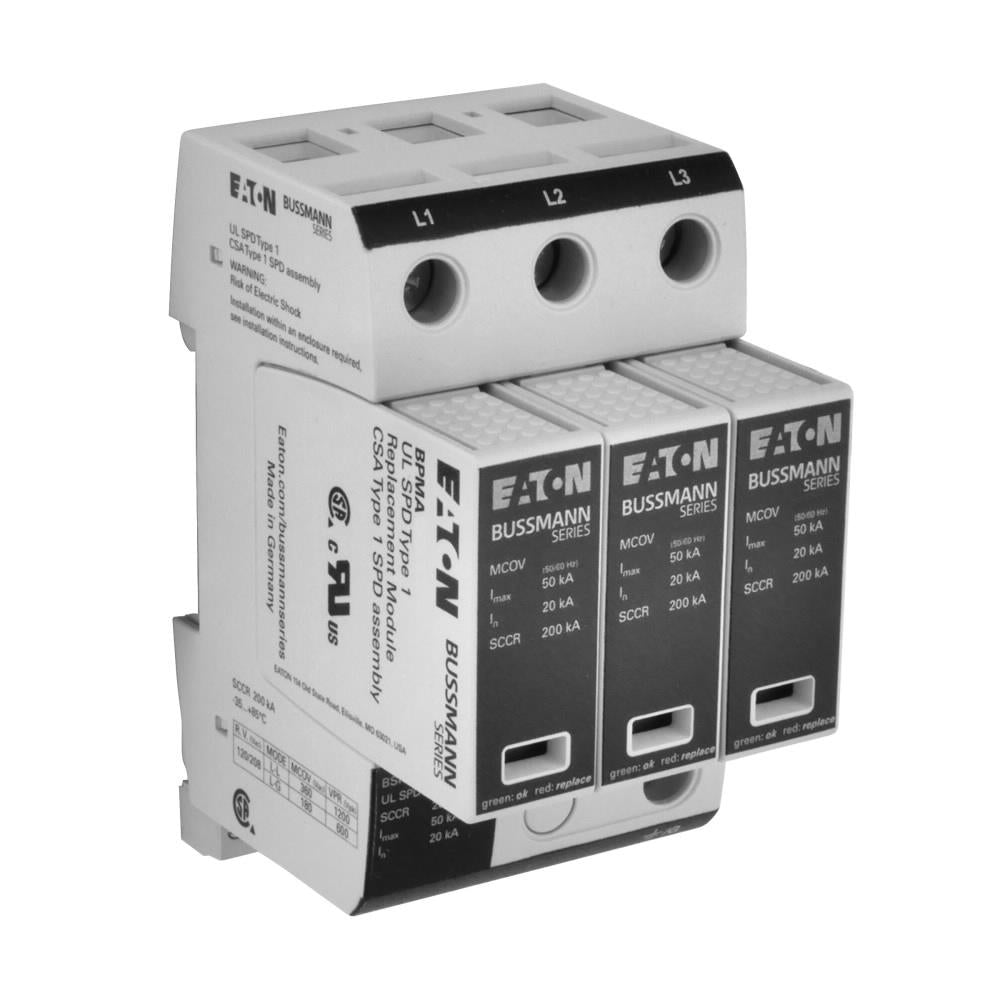

EATON BSPMA3480WYGR Surge Arrestor 277/480 V 3 Poles

Product Description

The EATON BSPMA3480WYGR is a surge arrester protection device made for electrical systems. This device is part of the BSPMA Series and is effective for applications using 277 to 480 volts at a frequency of 50/60 Hz. It is designed with three poles for reliable surge protection.

• Utilizes MOV type technology
• Features modular DIN rail design for easy installation
• Provides visual indication and remote contact signaling for status monitoring

Product Highlights

This surge arrestor enhances electrical safety and protects against voltage spikes.

Product Information

Standard Information

• Manufacturer: Eaton
• Part Number: BSPMA3480WYGR BU

Technical Specifications

• Electrical Ratings: 277/480 V
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Peak Surge Current: 200 kA
• Short Circuit Current Rating: 200 kA
• Nominal Discharge Current: 20 kA
• Modes of Protection: L-G/L-L
• Dimensions: 2.13 in L x 2.56 in W x 3.54 in H
