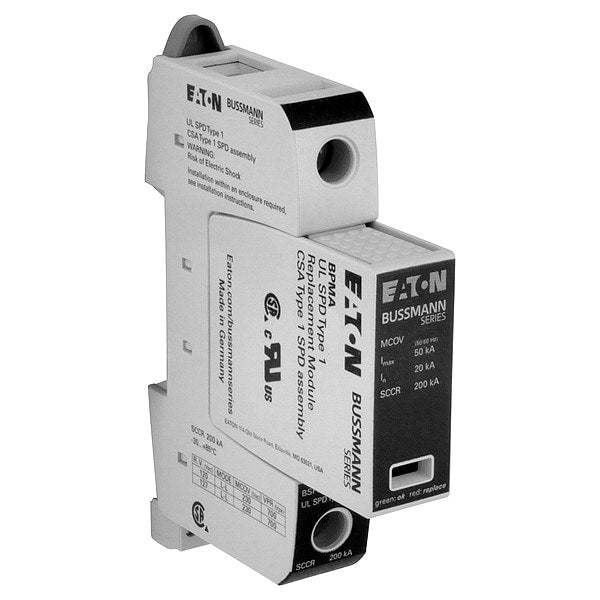

EATON BSPMA1120S2GR Surge Arrestor 120/240VAC Single Phase Protection

Product Description

Protect your electrical systems with the EATON BSPMA1120S2GR Surge Arrestor, engineered for reliable surge protection. This single-phase, 120/240VAC, 1-pole device ensures safety and continuity in electrical circuits.

• Efficient 200 kA surge current capacity
• Thermoplastic, fire-resistant enclosure rated UL94V0 for safety
• Easy installation on a 35 mm DIN rail

Product Highlights

The Eaton Surge Arrestor features a cutting-edge MOV technology that provides robust protection against transients. With its compact design measuring only 0.71 inches in depth, it is ideal for various industrial applications.

Product Information

Standard Information

• Brand: Eaton Bussmann
• Type: Surge Protector

Technical Specifications

• Phase: Single Phase
• Operating Voltage: 600/1200
• Surge Current Capacity: 200 kA
• Certifications: UL 94V0
• Material: Thermoplastic
• Mounting Method: 35 mm DIN rail
• Frequency Rating: 50/60 Hz
• Operating Temperature: -35 to 85 degrees Celsius
• Protection Degree: IP20
