Product Description

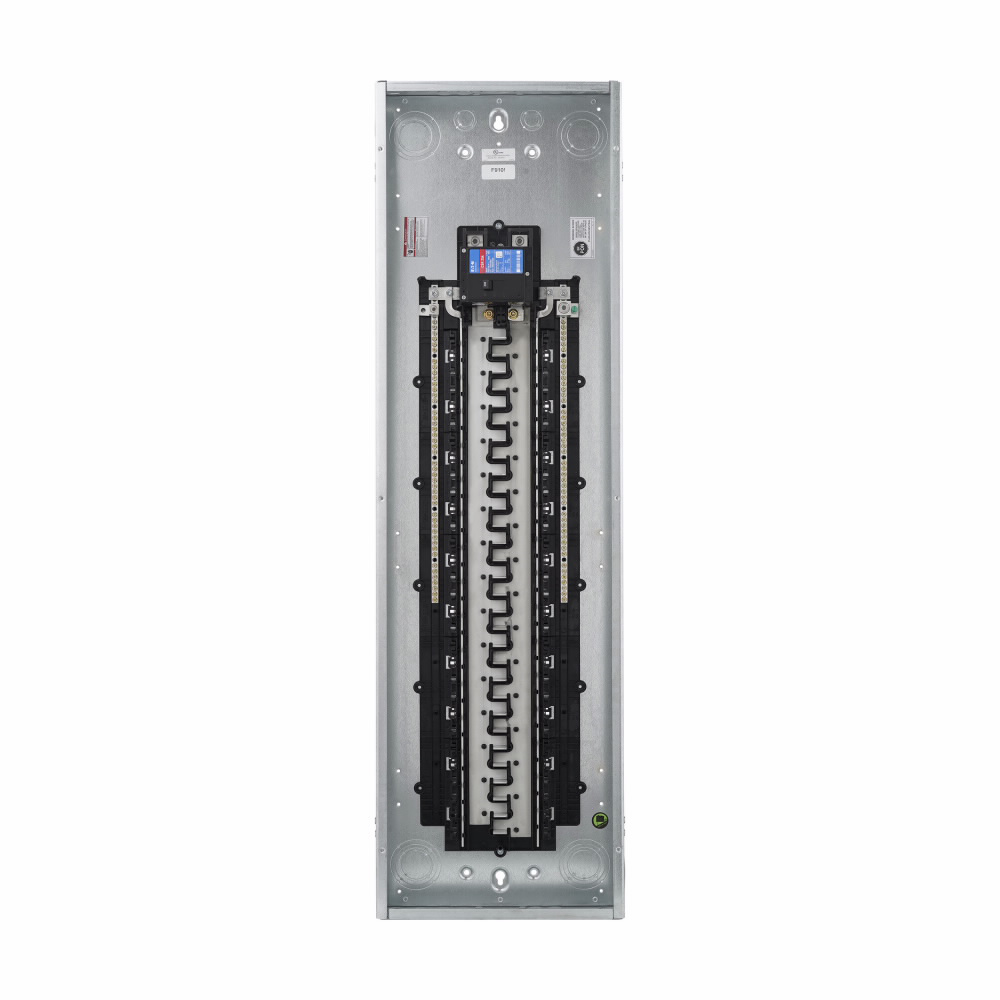

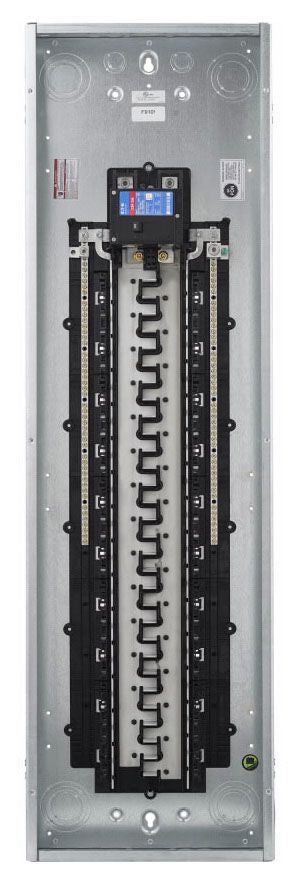

The EATON BRP60B200 is a 1-phase main breaker load center designed for use in residential and light commercial applications. It operates at 120/240 VAC with a maximum capacity of 200 Amps. This unit accommodates up to 60 circuits and features plug-on neutral design for easier installation.
- 1-Pole configuration

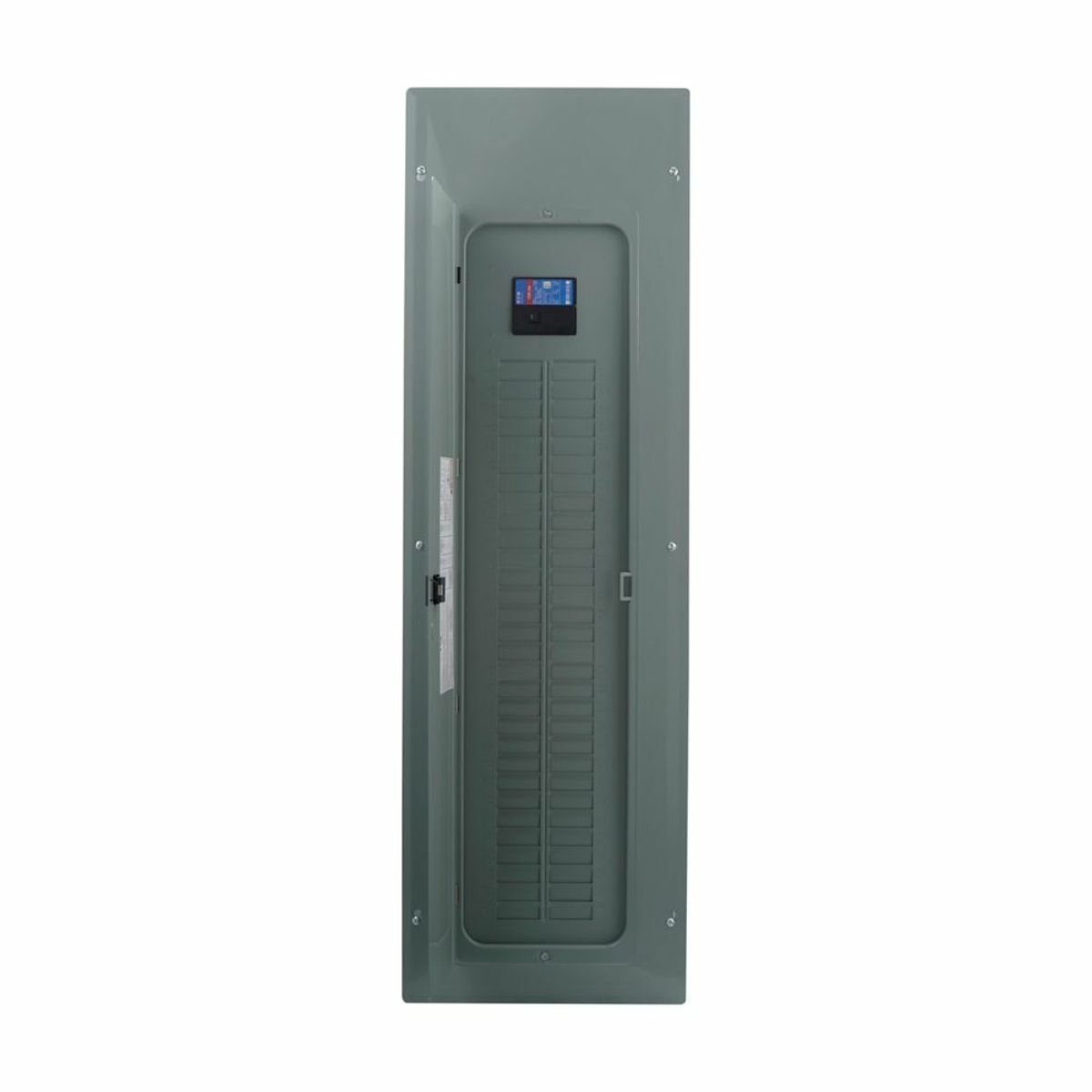

- Includes cover and combination trim
- Durable galvanized steel housing
Product Highlights
This load center serves as the main disconnect and protects wiring for individual circuits.
Product Information
Standard Information
-
Manufacturer: EATON
-
Catalog Number: BRP60B200
Technical Specifications
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 200 A
-
Number of Circuits: 120
-
Number of Spaces: 60
-
Dimensions: 48 in L x 14.31 in W x 3.88 in H
-
Wiring Configuration: 3-Wire
-
Enclosure Type: NEMA 1
-
Interrupt Rating: 25 kA
-
Mounting Type: Plug-On
-
Wire Size: 2 AWG to 300 kcmil
