Eaton BRP42BC225 ETN BRP42BC225 BR PON LC,225A, MCB, (X8)

Product Description

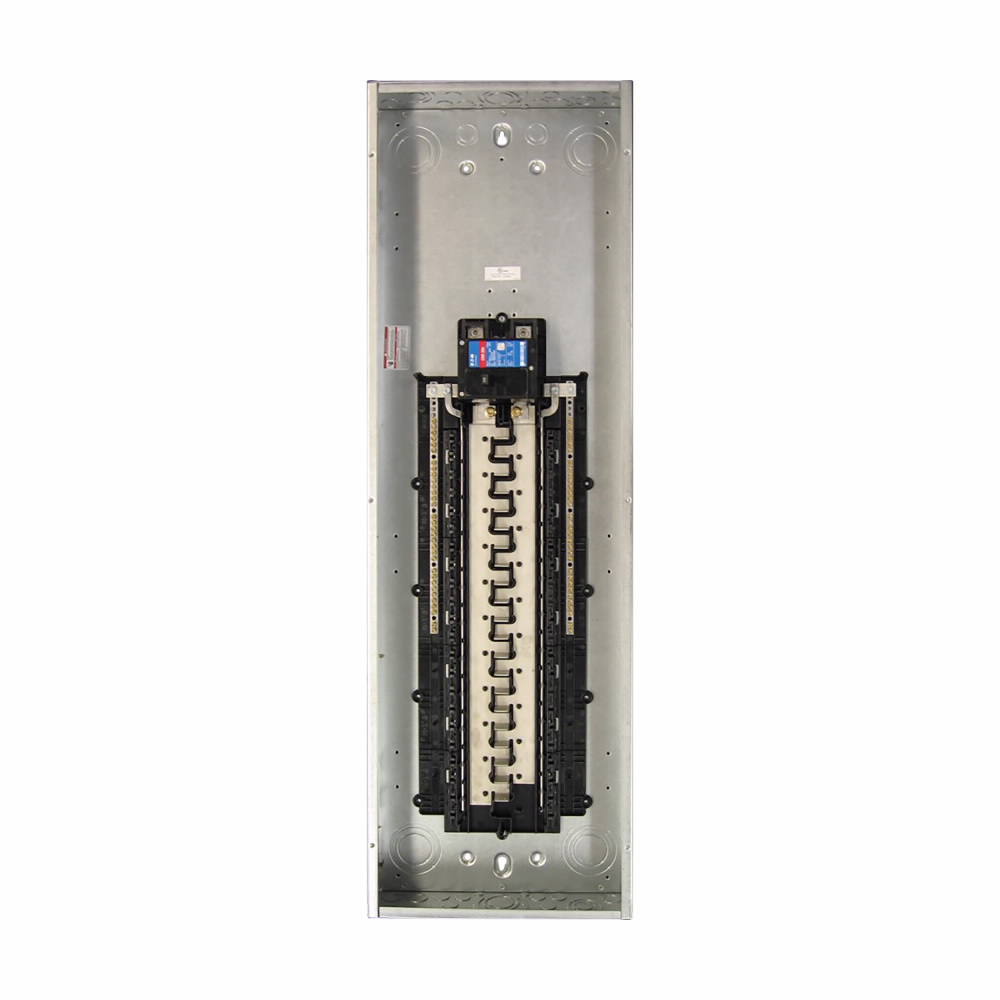

The Eaton BRP42BC225 is a plug-on neutral main circuit breaker load center designed for residential and light commercial applications. With a rating of two hundred twenty-five amperes, this load center features a robust construction that ensures durability and reliability. This model includes a cover and supports copper wires ranging in size from six to one aught AWG.

• Rated for residential buildings and facilities

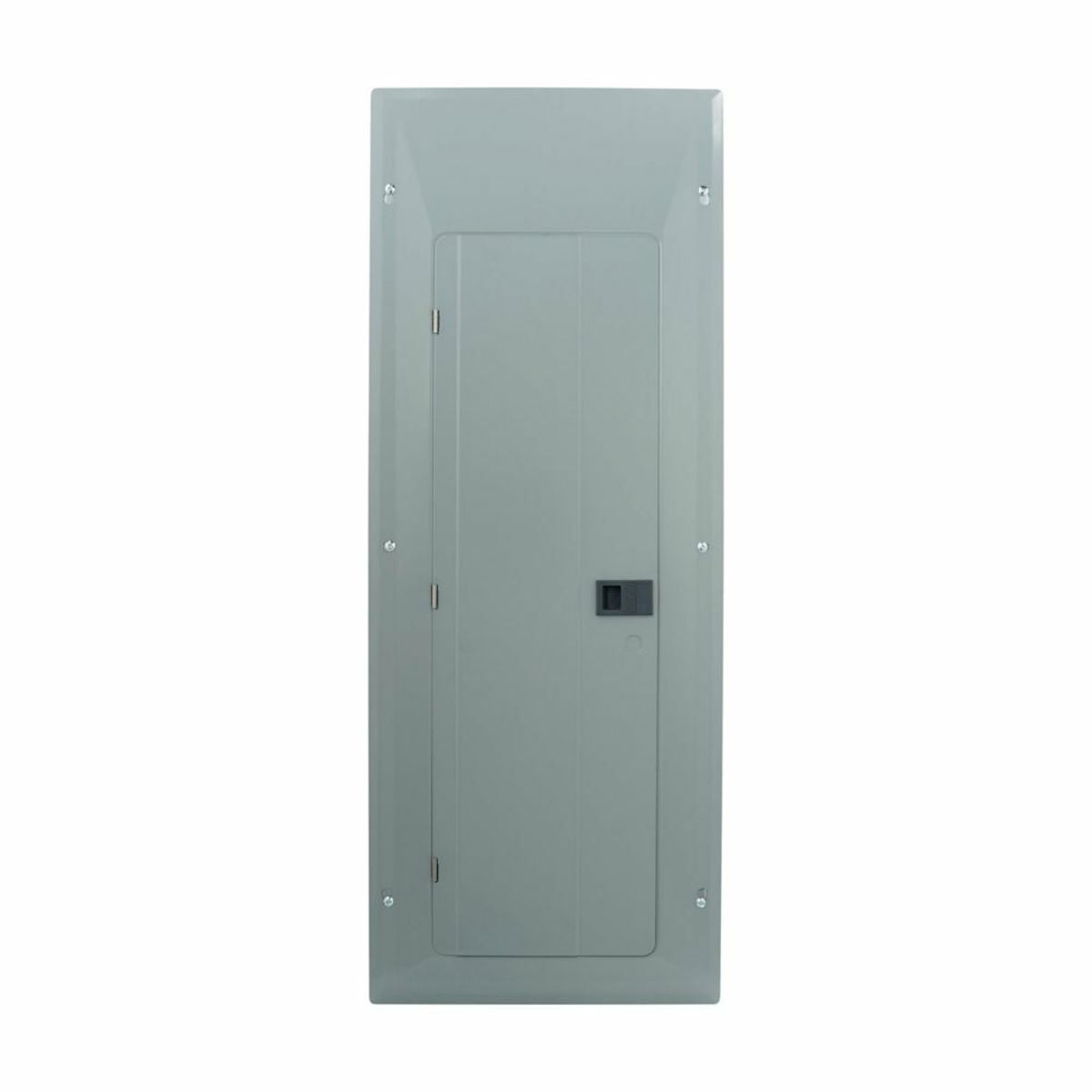

• Includes cover for added protection
• Features multiple circuits and spaces

Product Highlights

The Eaton BRP42BC225 is suitable for main breaker service entrances or as a sub-panel for additional circuits. It has a main breaker for entire panel protection and branch breakers for individual electrical loads.

Product Information

Standard Information

• MPN: BRP42BC225
• Brand: Eaton

Technical Specifications

• Amperage: 225 Amp
• Voltage Rating: 120/240 Volt
• Dimensions: 45 inches (Length) x 14.31 inches (Width) x 3.88 inches (Height)
• Bus Rating: 25 B22
• Number of Spaces: 42
• Enclosure Type: NEMA 1
• Cover Type: Cover included
• Interrupt Rating: 25 kAIC
• Wire Size: 6 to 1/0 AWG
• Mounting Type: Plug-On
• Number of Poles: 1
• Wiring Configuration: 3-Wire
• Applications: Suitable for residential buildings, electrical assemblies, and panels
