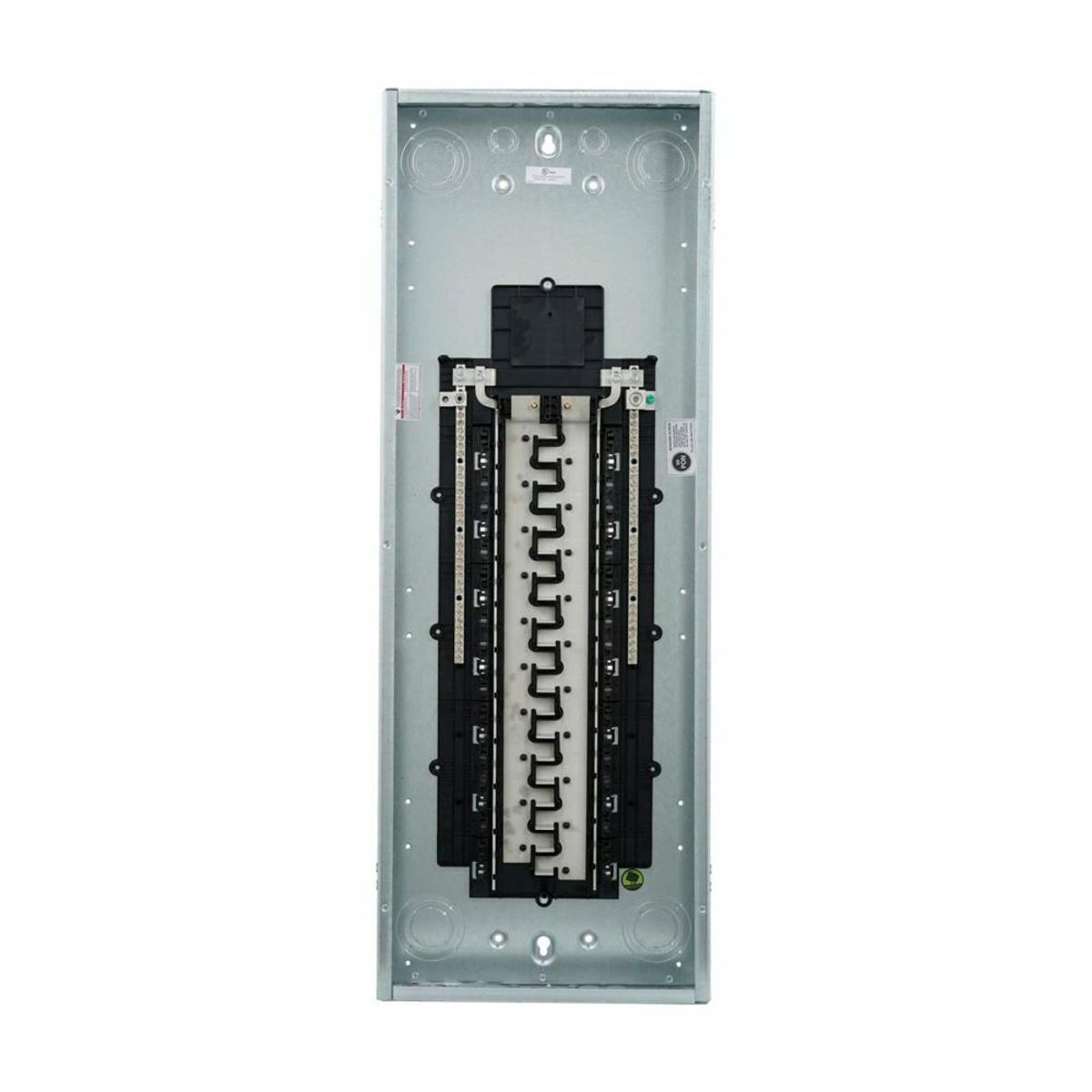

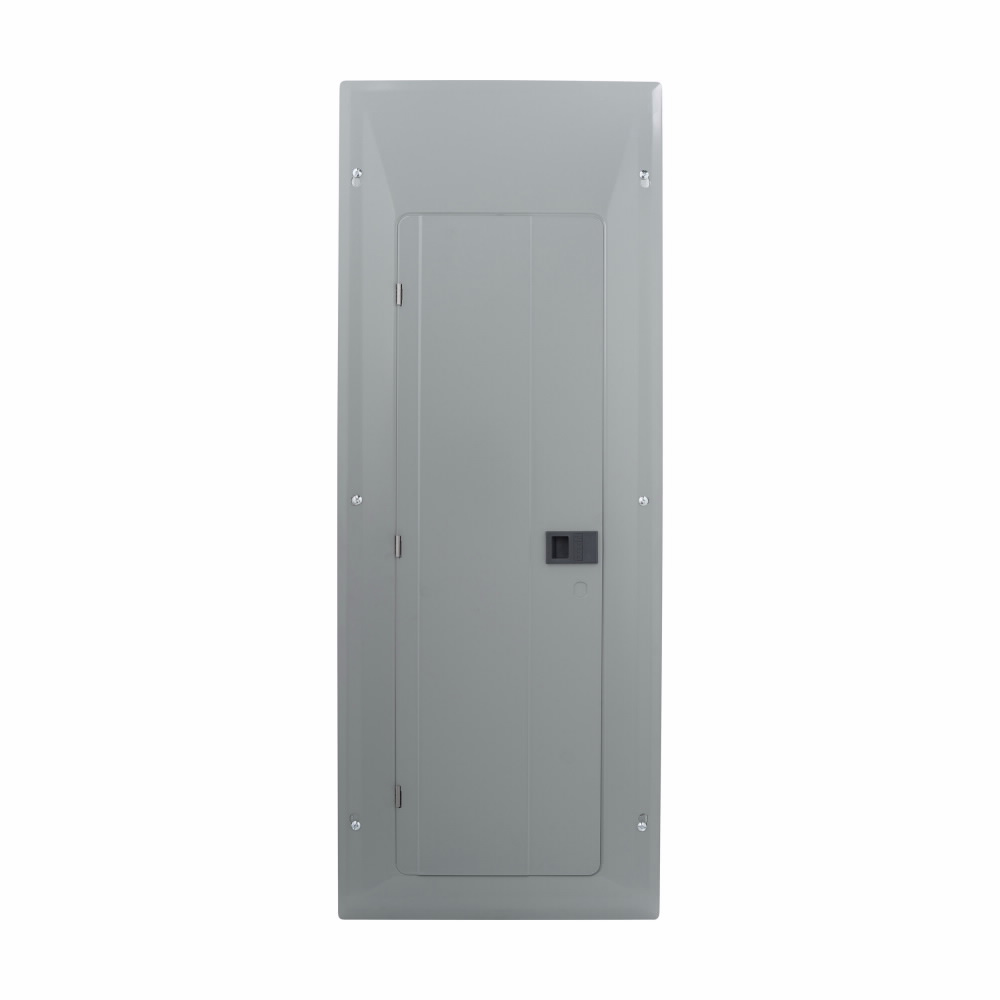

EATON BRP40N200R Type BR Single-Phase Convertible Load Center, 200 Amp, 40 Space/80 Circuit, NEMA 3R

Product Description

The EATON BRP40N200R is a single-phase load center designed for residential and light commercial applications. Rated for two hundred amps, this load center supports up to eighty circuits with forty spaces. It operates at a voltage of 120/240 VAC. The NEMA 3R rating ensures protection against rain, making it suitable for outdoor use. The plug-on neutral design simplifies circuit installation.

• Supports up to eighty circuits with forty spaces
• Rated for two hundred amps, ideal for residential use
• Weatherproof NEMA 3R enclosure for outdoor applications

Product Highlights

This load center features a seamless installation process and ensures a neat installation with its innovative design.

Product Information

Standard Information

• Brand: EATON
• MPN: BRP40N200R

Technical Specifications

• Type: 1-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Circuits: 80
• Number of Spaces: 40
• Breaker Type: BR
• Interrupt Rating: 10 kA
• Enclosure Type: NEMA 3R
• Dimensions: 3.88 in L x 14.31 in W x 39 in H
• Material: Sheet Steel
