Eaton BRP40L200R ETN BR PON LC 200A MLO

Product Description

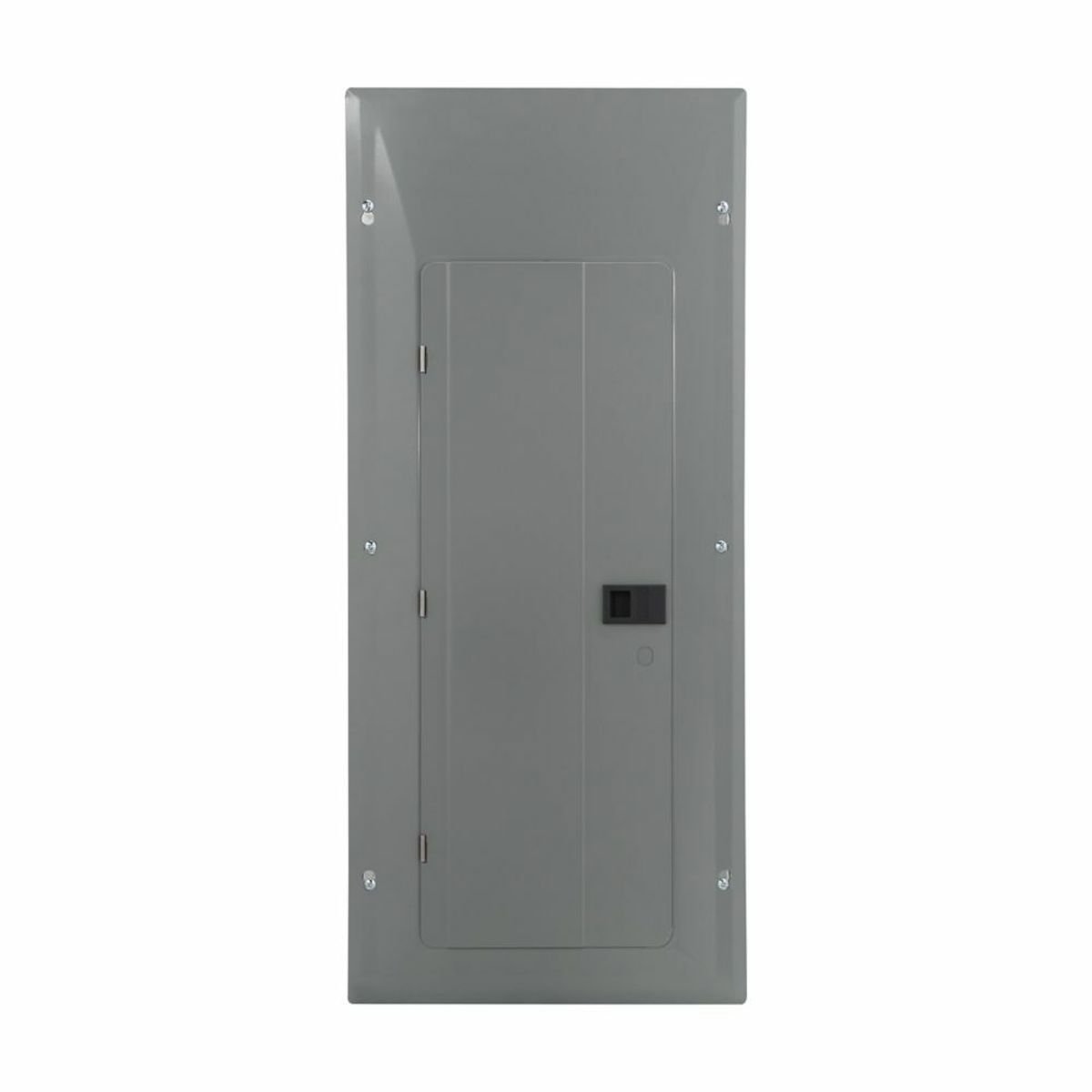

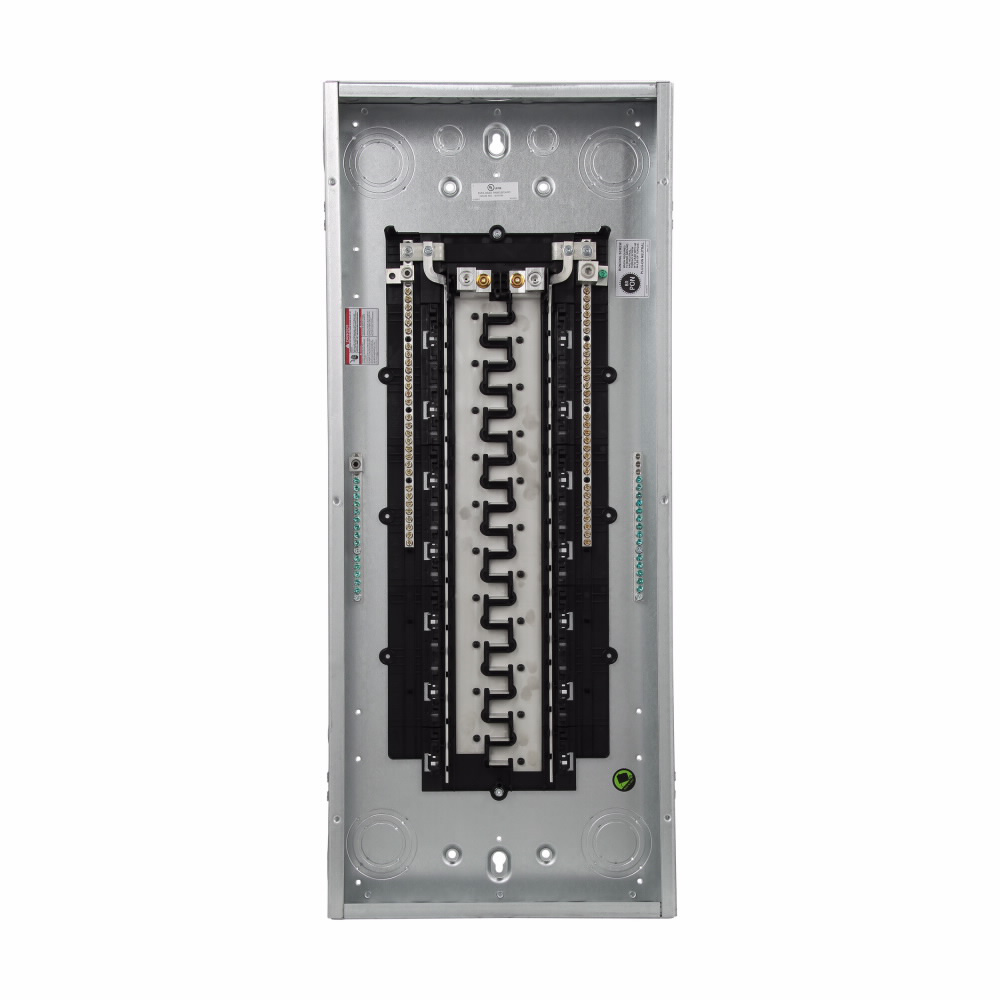

Eaton BRP40L200R is a main lug load center designed for residential use. The load center features a two hundred amp capacity and is suitable for single-phase applications. It is equipped with a cover and has a three-wire configuration. This model accommodates up to eighty circuits and provides forty spaces for breakers.

• Type BR compatible with 1-inch breakers
• NEMA 3R enclosure protects against outdoor conditions
• Rated for 10 kAIC interrupt capacity

Product Highlights

This load center is designed for easy installation and can serve as a service disconnect. It houses the branch circuit breakers and wiring required to distribute power to various circuits.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: BRP40L200R
• Amperage Rating: 200
• Voltage Rating: 120/240 Volt
• Enclosure Type: NEMA 3R
• Cover Type: Cover included
• Number of Circuits: 80
• Number of Spaces: 40
• Bus Material: Aluminum
