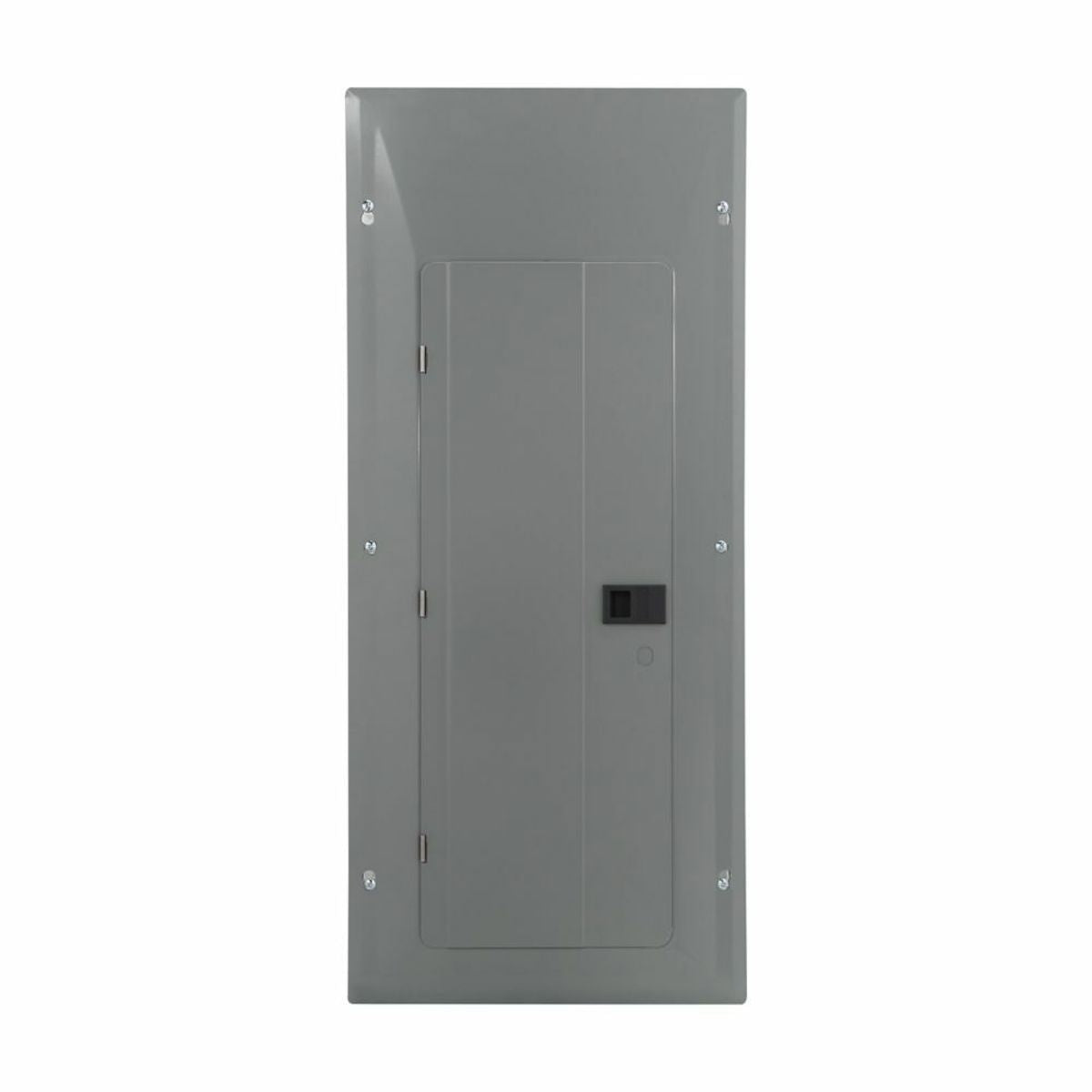

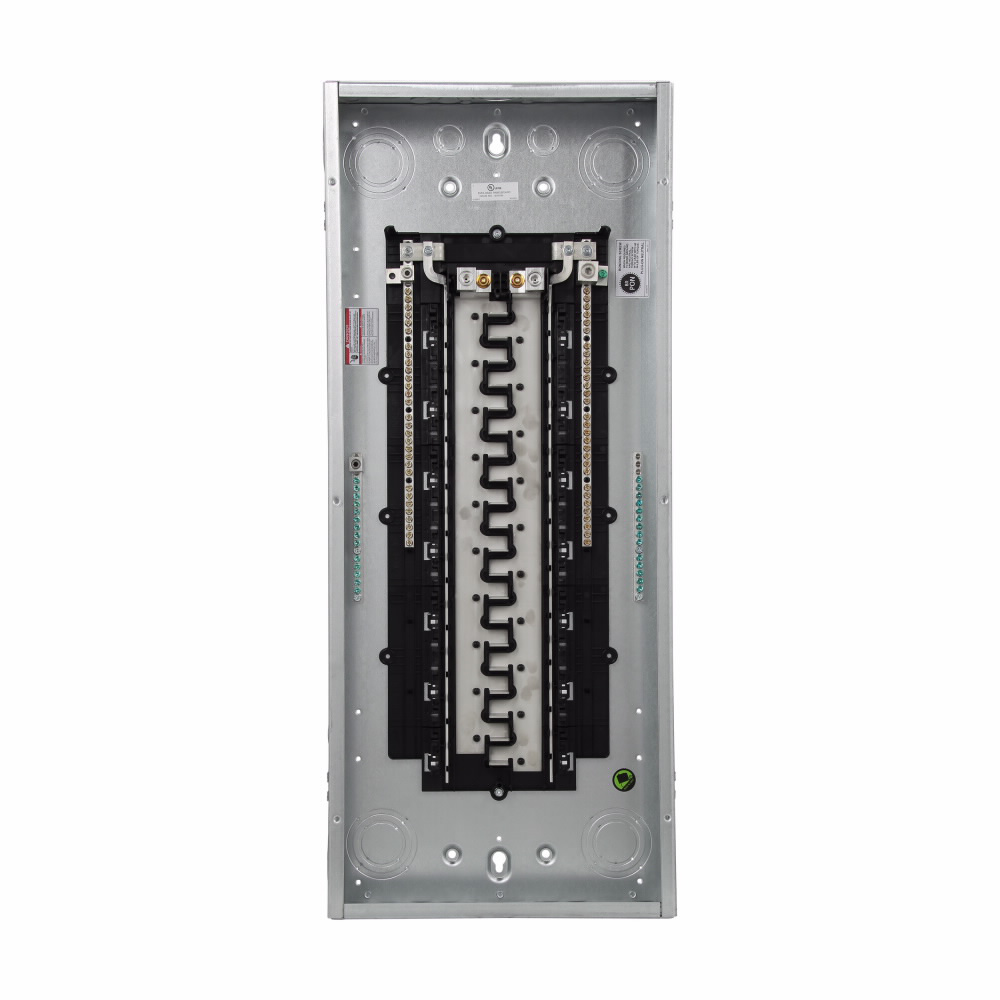

Eaton BRP40L200G Main Lug Load Center 200A X6

Product Description

The Eaton BRP40L200G is a main lug load center designed for reliable power distribution. With a rated capacity of two hundred amps, this load center is suitable for residential and commercial applications. Its aluminum construction provides durability while its NEMA one rating ensures effective protection in various environments.

• Houses up to eighty circuits
• Supports single-phase, 120/240-volt systems
• Includes cover and combination trim

Product Highlights

This load center allows for efficient wiring management and is ideal for adding circuits to existing services.

Product Information

Standard Information

• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC

Technical Specifications

• Catalog Number: BRP40L200G
• Manufacturer: Eaton
• Wiring Configuration: 3-Wire
• Mounting Type: Surface, Flush
• Number of Circuits: 80
• Number of Spaces: 40
• Enclosure: NEMA 1
• Dimensions: 34.12 in L x 14.31 in W x 3.88 in H
