EATON BRP40BC200 Type BR Single-Phase Plug-on Neutral Main Circuit Breaker Load Center, 40 Space/80 Circuit, 120/240 VAC, 200 Amp

Product Description

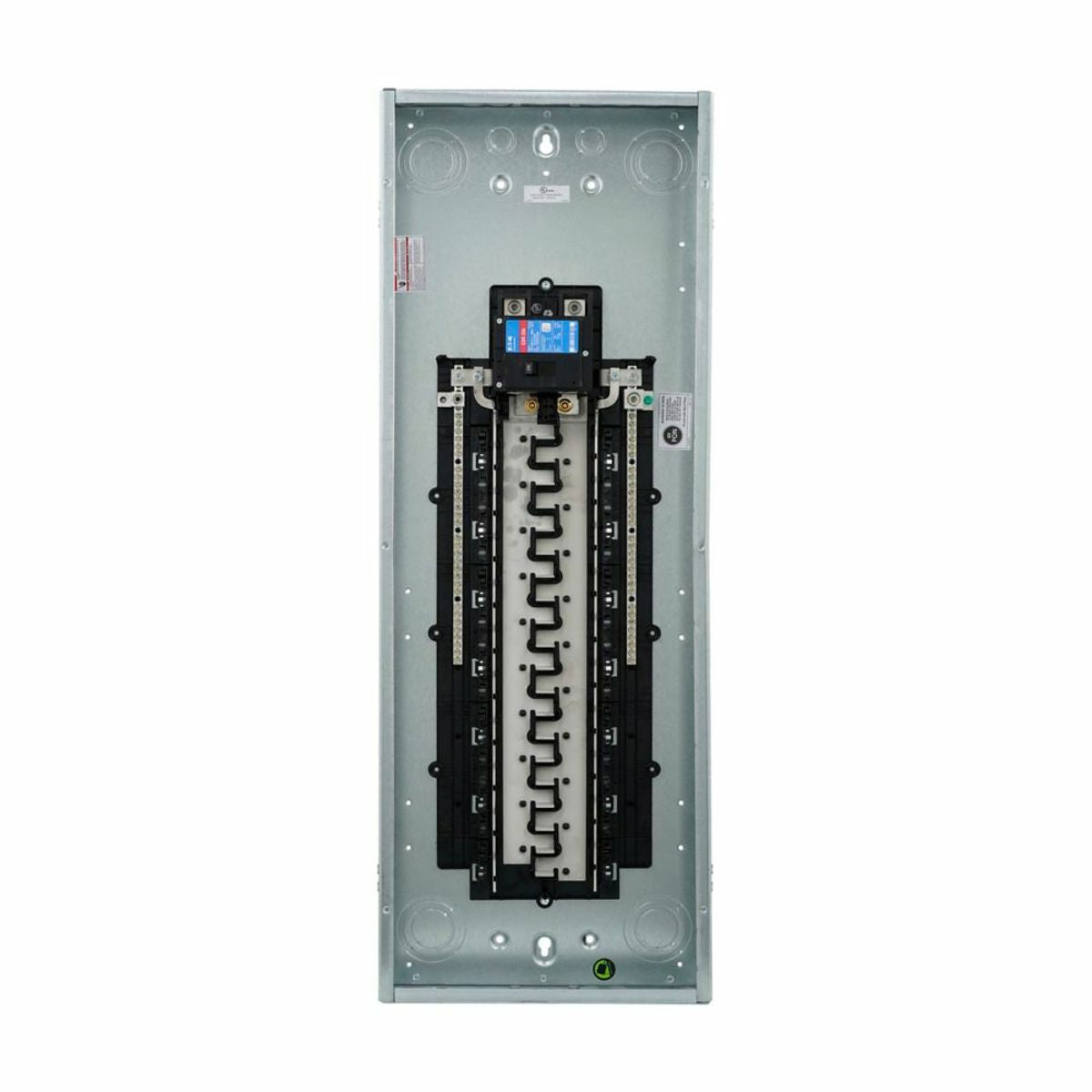

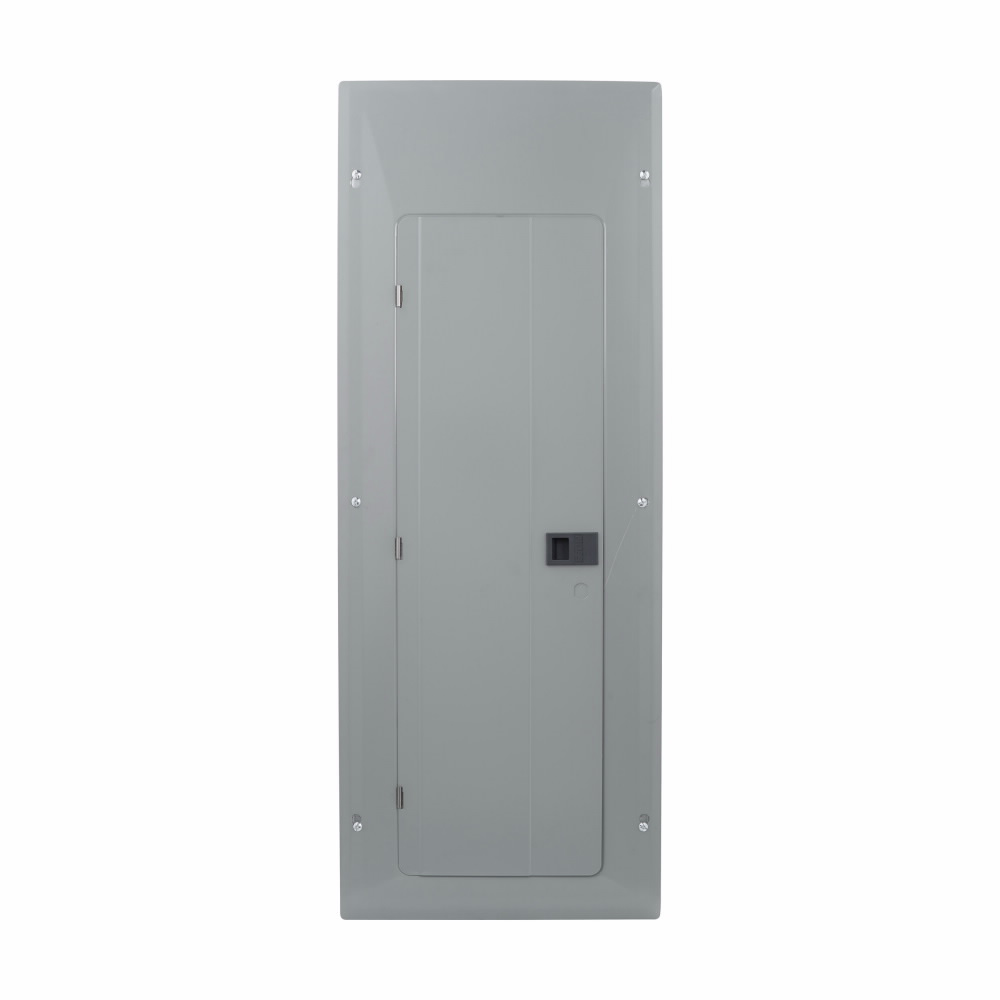

The Eaton BRP40BC200 is a single-phase plug-on neutral main circuit breaker load center. It provides a configuration of forty spaces and eighty circuits, with a voltage range of one hundred twenty to two hundred forty volts. The load center is rated for two hundred amps and features a NEMA 1 enclosure. The unit is designed to be mounted easily and can accommodate various wire sizes from two AWG to three hundred kcmil.

• Single-phase design for reliable power supply
• Easy installation with plug-on mounting
• Suitable for residential and light commercial applications

Product Highlights

This load center is built to house the essential circuit breakers and wiring to distribute electricity efficiently. It functions effectively as both a main panel at service entrances or as a sub-panel for extending circuits. The included main breaker ensures the complete protection of the panel.

Product Information

Standard Information

• Manufacturer: Eaton
• Model Number: BRP40BC200

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 1
• Number of Spaces: 40
• Number of Circuits: 80
• Dimensions: 39 in L x 14.31 in W x 3.88 in H
• Enclosure Type: NEMA 1
• Interrupt Rating: 25 kA
• Wire Size Compatibility: 2 AWG to 300 kcmil
