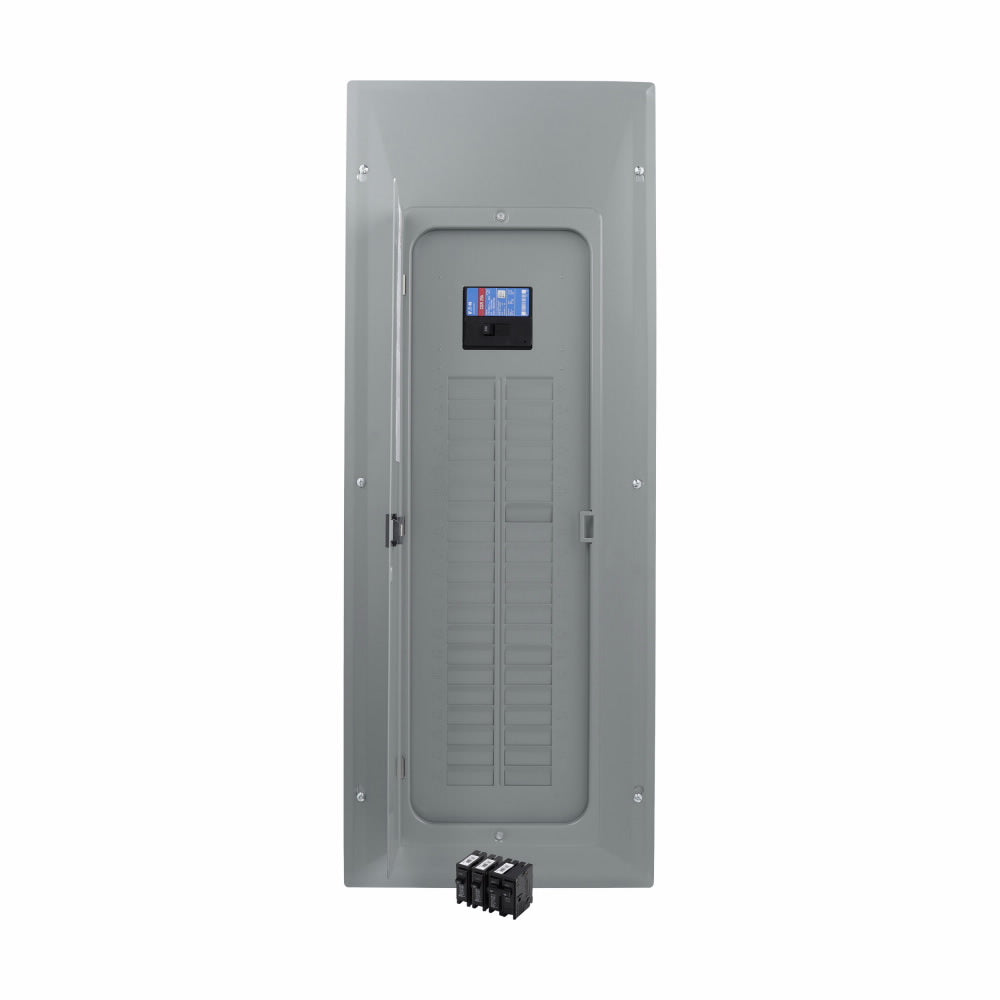

Eaton BRP40B200V25 1-Phase Main Breaker Load Center Value Pack, 120/240 VAC, 200 A, 1 Poles, 25 kA Interrupt

Product Description

The Eaton BRP40B200V25 is designed for use in load center applications. This single-phase load center operates at 120/240 VAC and has a current rating of 200 amps. It features a plug-on neutral main circuit breaker load center with 80 circuits and 40 spaces. The construction allows for easy access and installation of circuit breakers.

• Compatible with a wiring configuration of three wires.
• Steel backpan provides support for the breaker.
• Includes a cover for protection and safety.

Product Highlights

Efficient power distribution with 25 kA interrupt rating and a galvanized steel housing ensures durability.

Product Information

Standard Information

• Brand: Eaton
• MPN: BRP40B200V25

Technical Specifications

• Type: 1-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 1
• Number of Circuits: 80
• Number of Spaces: 40
• Dimensions: 39 inches L x 14.31 inches W x 3.88 inches H
• Enclosure Type: NEMA 1
• Wire Size Range: 2 AWG to 300 kcmil copper/aluminum
