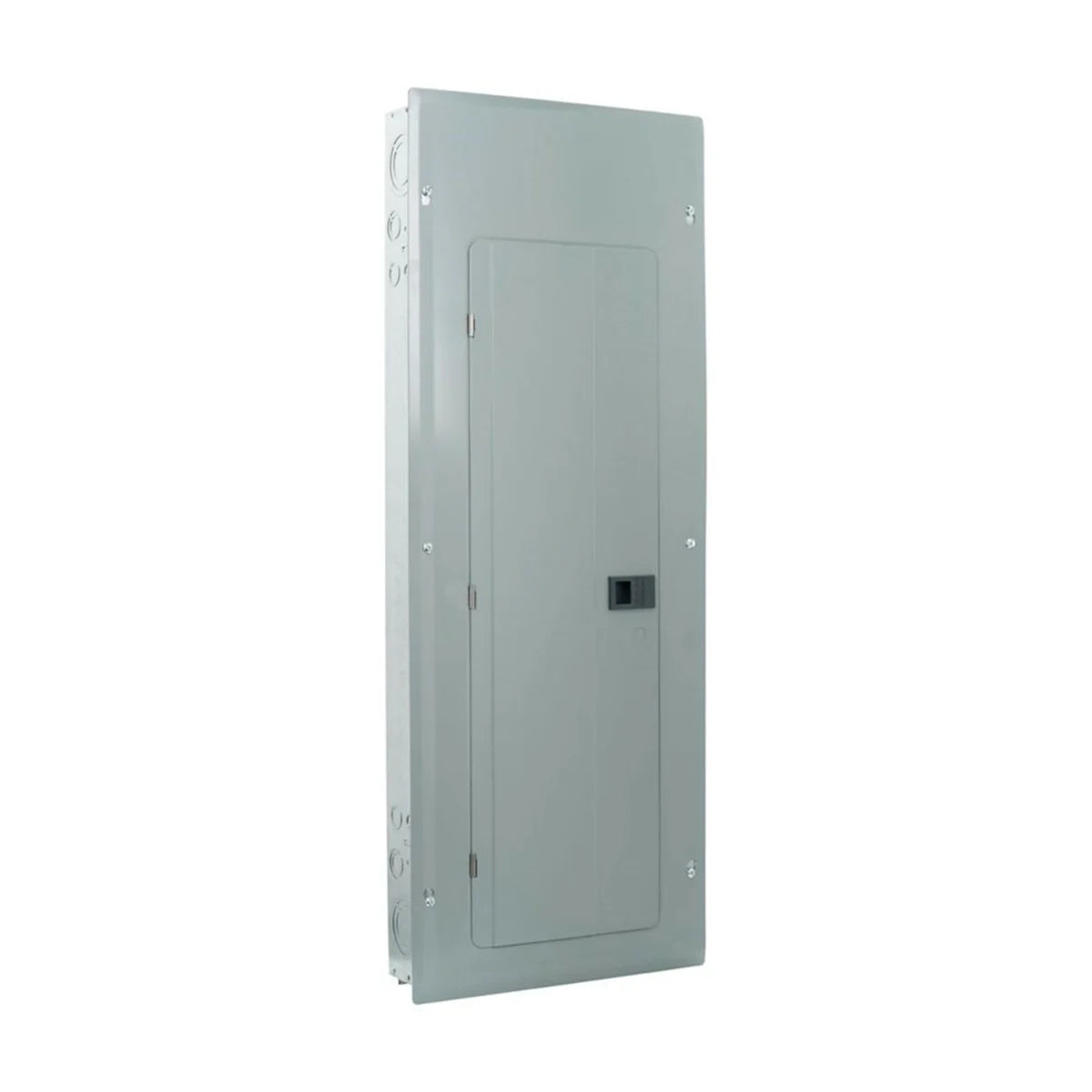

EATON BRP40B200 1-Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Poles, 25 kA Interrupt

Product Description

The Eaton BRP40B200 is a single-phase main breaker load center with a voltage rating of 120/240 VAC and a current rating of 200 Amps. It is designed to accept up to eighty circuits and provides forty spaces for circuit breakers. The load center features a plug-on neutral configuration and is housed in a galvanized steel enclosure that meets NEMA Type 1 standards. This product includes necessary components like a ground bar and a cover, ensuring ready installation.

• Includes a ground bar for easy wiring.
• Features a 25 kA interrupt rating to handle electrical faults.
• Constructed for durability with a galvanized steel housing.

Product Highlights

This load center is suitable for residential and light commercial applications. Its design facilitates simple installation and efficient circuit management.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: BRP40B200

Technical Specifications

• Type: 1-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 1
• Number of Spaces: 40
• Number of Circuits: 80
• Mounting Type: Plug-On
• Interrupt Rating: 25 kA
• Enclosure Type: NEMA 1
• Dimensions: 39 in L x 14.31 in W x 3.88 in H
• Wire Size Range: 6 to 1/0 AWG
