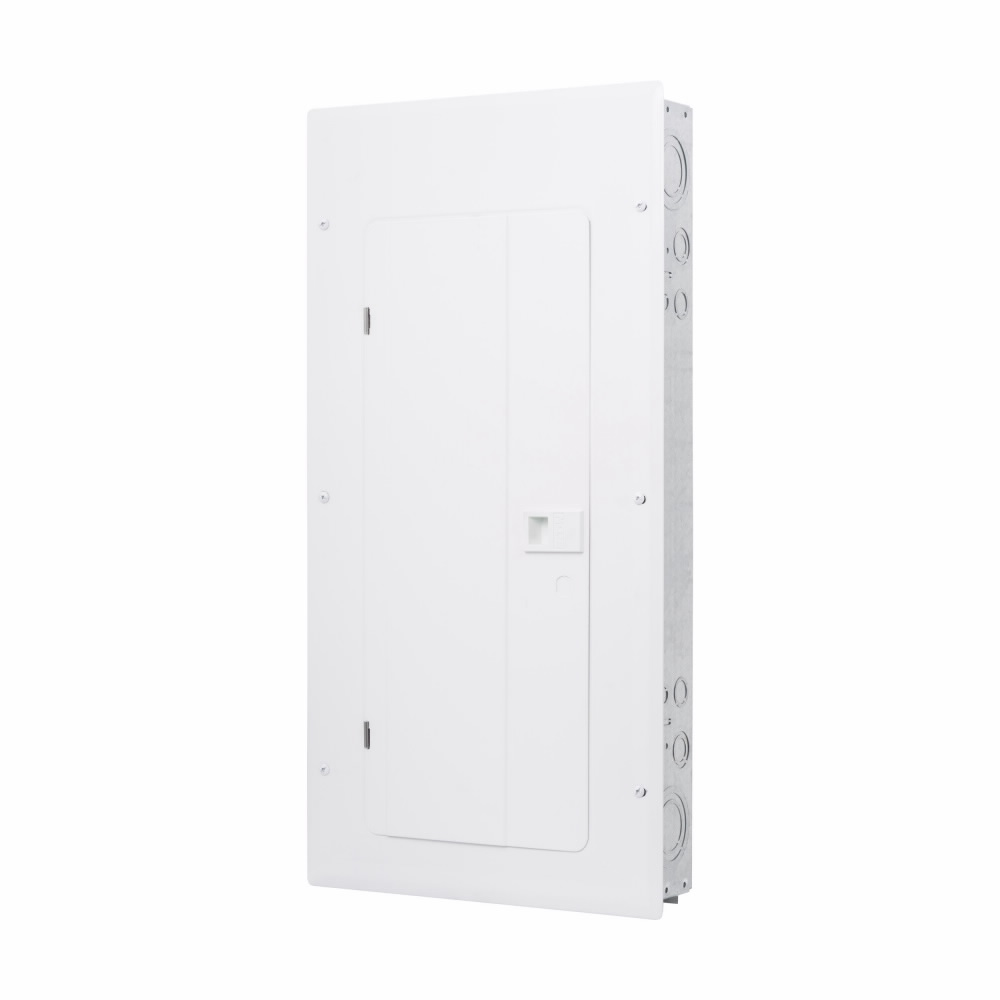

Eaton BRP30L200R ETN BRP30L200R BR PON LC,200A, MLO

Product Description

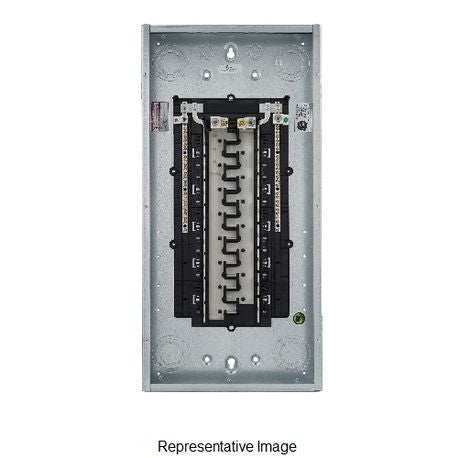

The Eaton BRP30L200R is a main lug load center designed for reliable power distribution. It provides a safe and organized method to house branch circuit breakers and electrical wiring. This load center supports applications where main circuit incoming power is needed, ideal for both service entrance and sub-panel configurations.

• 200 amp capacity for residential and light commercial installations
• NEMA 3R rated enclosure for indoor and outdoor applications
• Supports up to 60 circuits with room for expansion

Product Highlights

Designed with aluminum bus material for enhanced conductivity. The BRP30L200R is built to accommodate various wiring configurations while ensuring safety and performance in electrical distribution.

Product Information

Standard Information

• Catalog Number: BRP30L200R
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 120/240 V
• Number of Circuits: 60
• Number of Spaces: 30
• Number of Poles: 1
• Enclosure Material: Metal
• Cover Type: Cover included
• Enclosure Type: NEMA 3R
• Interrupt Rating: 10 kAIC
• Dimensions: 3.88 in x 14.31 in x 29.13 in
