EATON BRP30L200G CIRCUIT BREAKERS

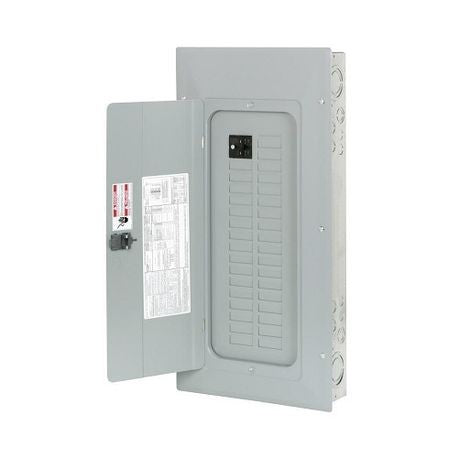

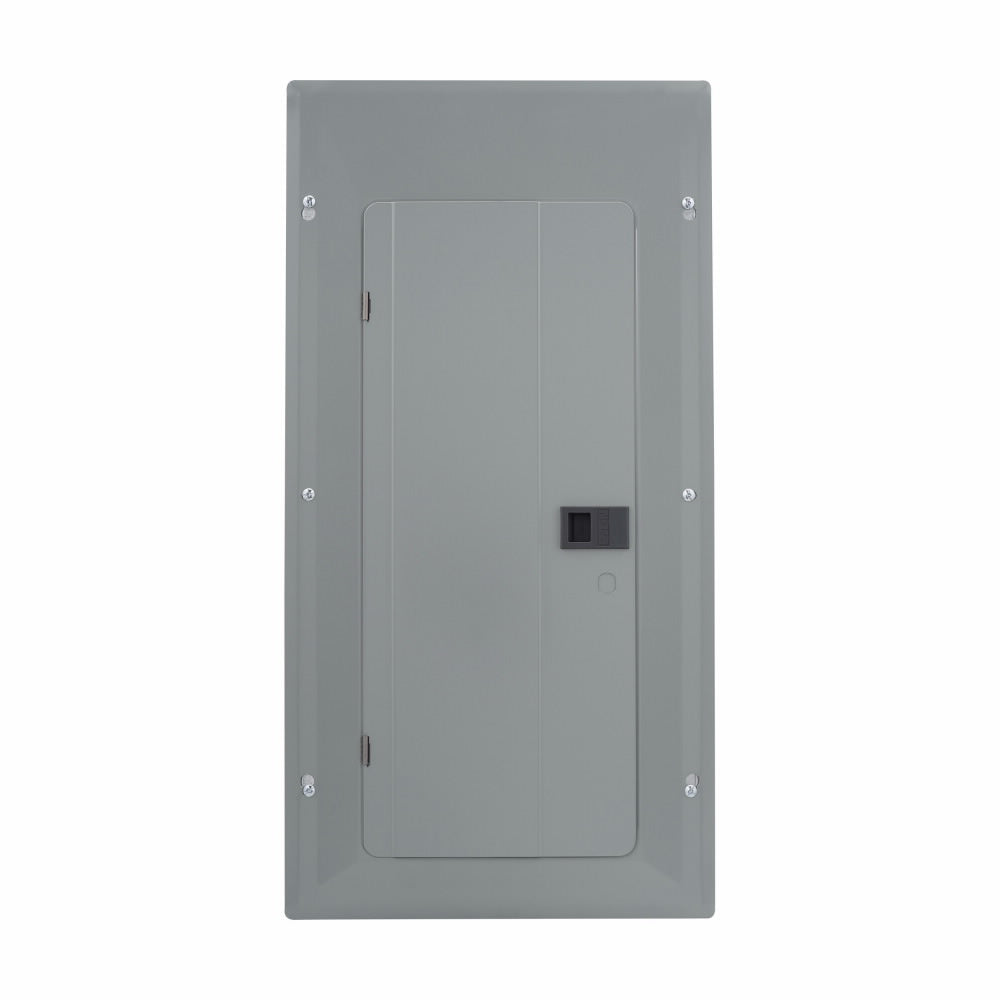

EATON EATON BRP30L200G Type BR Single-Phase Main Lug Load Center 200 Amps 30 Spaces 60 Circuits
EATON EATON BRP30L200G Type BR Single-Phase Main Lug Load Center 200 Amps 30 Spaces 60 Circuits
EATON BRP30L200G CIRCUIT BREAKERS
EATON BRP30L200G Type BR Single-Phase Main Lug Load Center 200 Amps 30 Spaces 60 Circuits
EATON BRP30L200G Type BR Single-Phase Main Lug Load Center 200 Amps 30 Spaces 60 Circuits

EATON BRP30L200G Type BR Single-Phase Main Lug Load Center 200 Amps 30 Spaces 60 Circuits

EATON
Brand: EATON
SKU: BRP30L200G
Availability: In Stock

Ships same day if ordered by 12 pm
$184.99
$184.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The EATON BRP30L200G is a single-phase main lug load center designed for efficient power distribution. This unit can handle 200 amps at 120/240 volts and supports 30 spaces and 60 circuits. It is built to house branch circuit breakers and wiring, providing a safe and reliable way to manage electrical loads.

  • Provides up to 200 amps of power at 120/240 VAC
  • Features a NEMA 1 enclosure for indoor use
  • Supports wiring sizes from 1 AWG to 300 kcmil

Product Highlights

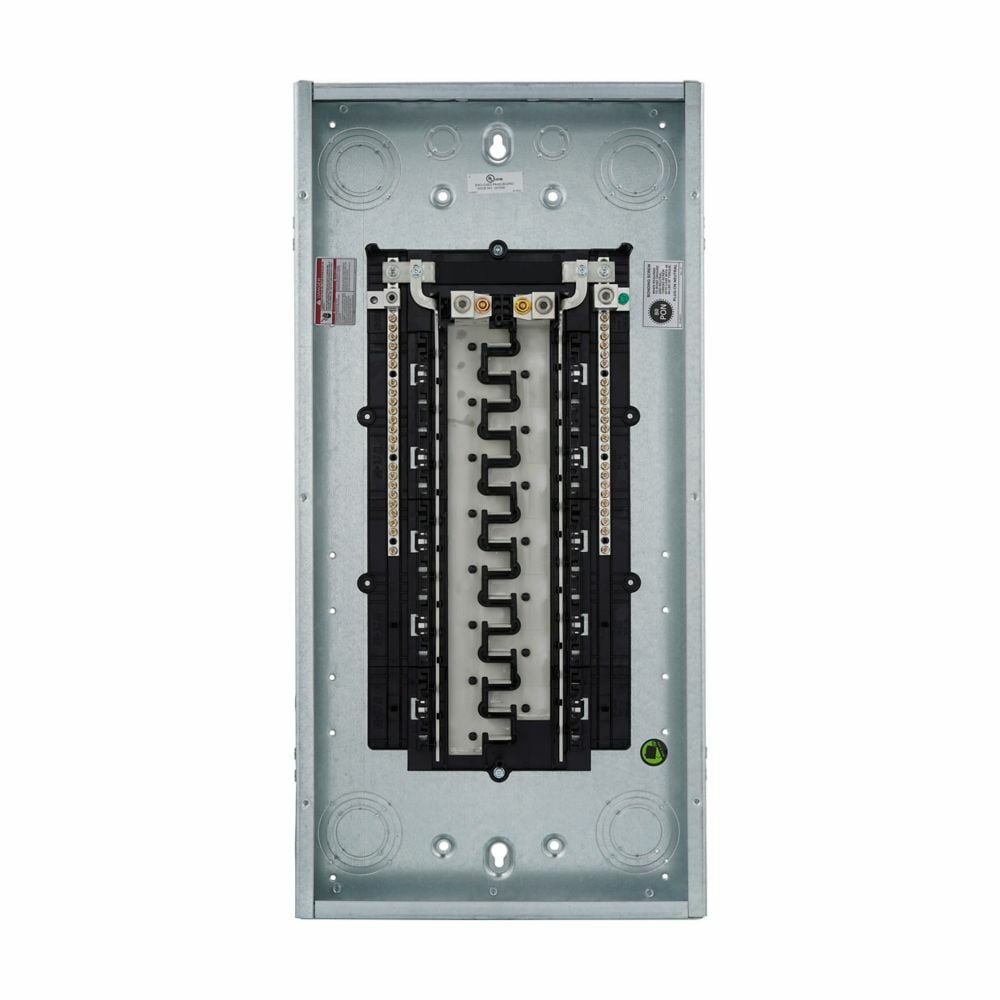

This load center is made of galvanized steel and is designed for plug-on mounting. It is equipped with a ground bar and an extra knockout for easy installation. The compact design ensures optimal space utilization.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: BRP30L200G
Technical Specifications
Phase Type
1-Phase Insulated/Bondable Split
Voltage Rating
120/240 VAC
Amperage Rating
200 A
Number of Poles
1
Number of Circuits
60
Number of Spaces
30
Enclosure Type
NEMA 1
Dimensions
29.12 in L x 14.31 in W x 3.88 in H
Interrupt Rating
10 kA
Housing Material
Galvanized Steel
Mounting Type
Plug-On
