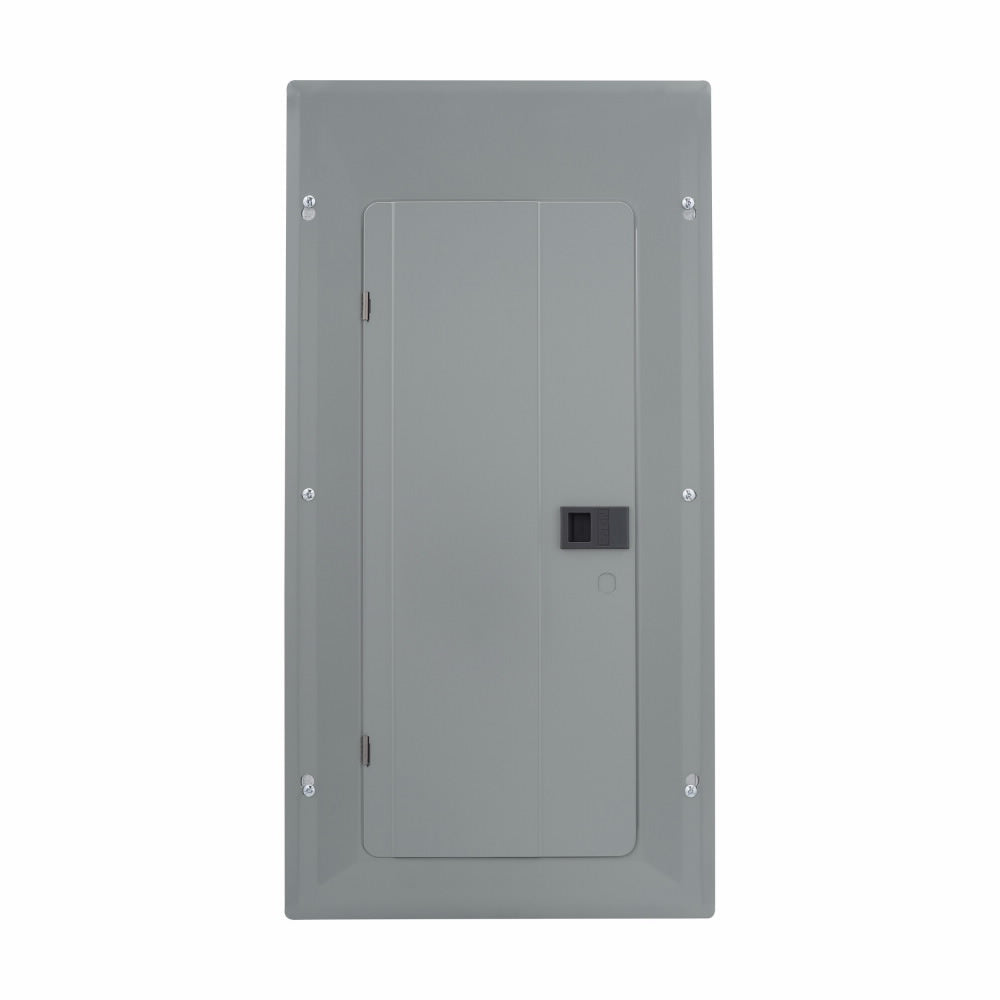

EATON EATON BRP30L200 1-Phase Bondable Split Insulated Main Lug Load Center 120/240 VAC 200 Amp NEMA 1

EATON BRP30L200 1-Phase Bondable Split Insulated Main Lug Load Center 120/240 VAC 200 Amp NEMA 1

Name: EATON BRP30L200 1-Phase Bondable Split Insulated Main Lug Load Center 120/240 VAC 200 Amp NEMA 1
Brand: EATON
SKU: BRP30L200
Price: 305.88 USD
Availability: InStock

Brand: EATON

SKU: BRP30L200

Availability: In Stock

Ships same day if ordered by 12 pm

Quantity:

$305.88; $305.88
Unit price: per

Manuals:

Manual

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

The EATON BRP30L200 is a single-phase main lug load center with a rating of 200 Amps, operating at 120/240 VAC. It features 30 spaces and is designed for both flush and surface mounting.

Type BR design for reliability.
Fits copper and aluminum wire sizes from 1 AWG to 300 kcmil.
NEMA 1 enclosure suitable for indoor use.

Product Highlights

This load center is suitable for a variety of electrical assemblies and is compatible with EOEM applications. It includes a cover and combination trim for added functionality.

Product Information

Standard Information

Manufacturer: EATON
Enclosure Type: NEMA 1

Technical Specifications

Amperage Rating

200 A

Voltage Rating

120/240 VAC

Number of Poles

Number of Circuits

Dimensions

29.12 in L x 14.31 in W x 3.88 in H

Interrupt Rating

10 kA

Wire Size

1 AWG to 300 kcmil

Breaker Type

BR/CSR

Mounting Type

Flush/Surface

Vendor: EATON

EATON BRP30L200 1-Phase Bondable Split Insulated Main Lug Load Center 120/240 VAC 200 Amp NEMA 1

$305.88

Quantity:

Vendor: EATON

EATON BRP30L200 1-Phase Bondable Split Insulated Main Lug Load Center 120/240 VAC 200 Amp NEMA 1

$305.88
