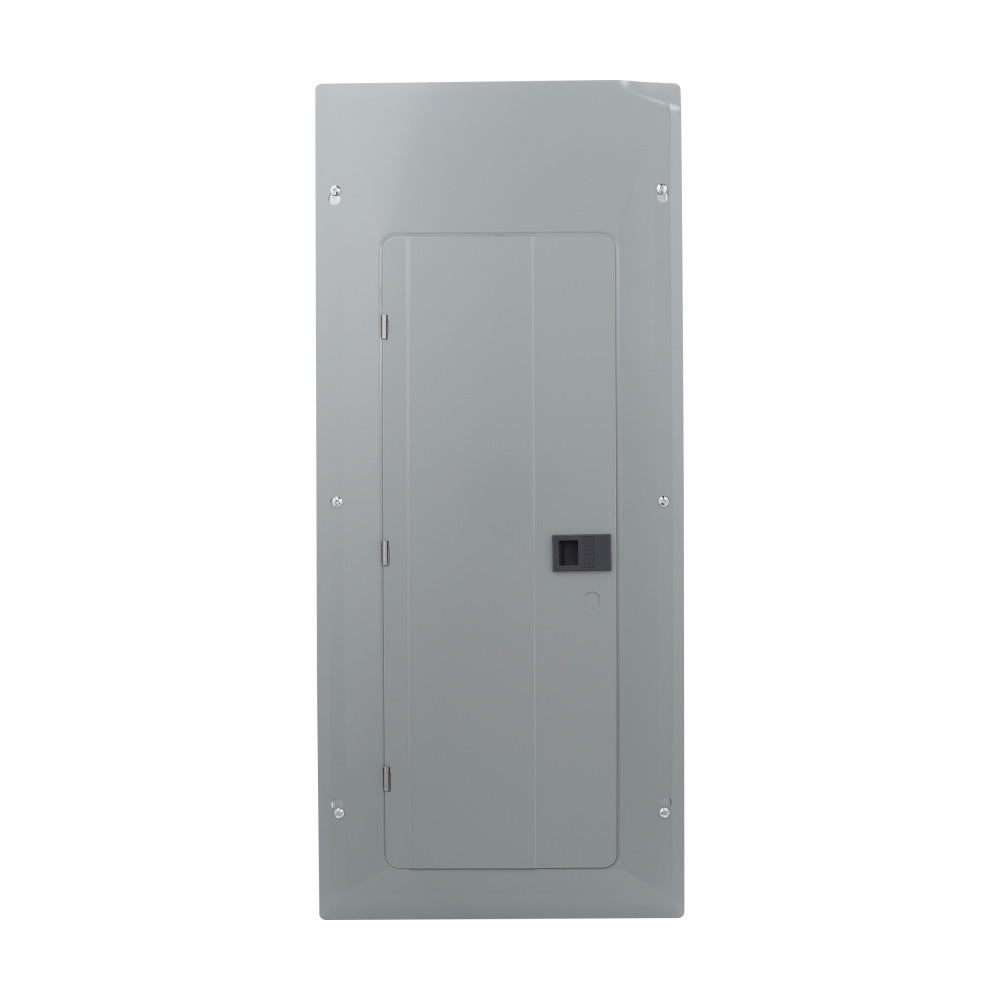

Eaton BRP30BC200 1-Phase Main Breaker Load Center 200A 30 Spaces 60 Circuit

Product Description

The Eaton BRP30BC200 is a single-phase main breaker load center designed for use in residential and light commercial applications. With a voltage rating of 120/240 VAC and a 200 amp service capacity, this load center is ideal for managing electrical loads safely and efficiently. It features a plug-on neutral design and accommodates up to thirty spaces for breakers, allowing for efficient circuit distribution.

• Voltage rating: 120/240 VAC
• 200 amp service capacity
• Accommodates 30 circuit breakers

Product Highlights

This load center includes cover and trim, ensuring a complete installation package for users. The NEMA 1 enclosure provides safety and durability in indoor installations.

Product Information

Standard Information

• Brand: Eaton
• MPN: BRP30BC200

Technical Specifications

• Type: 1-Phase
• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC
• Enclosure Type: NEMA 1
• Dimensions: 34.12 inches L x 14.31 inches W x 3.88 inches H
• Wiring Configuration: 3-Wire
• Interrupt Rating: 25 kA
• Breaker Type: BR/CSR
• Spaces: 30
• Number of Circuits: 60
