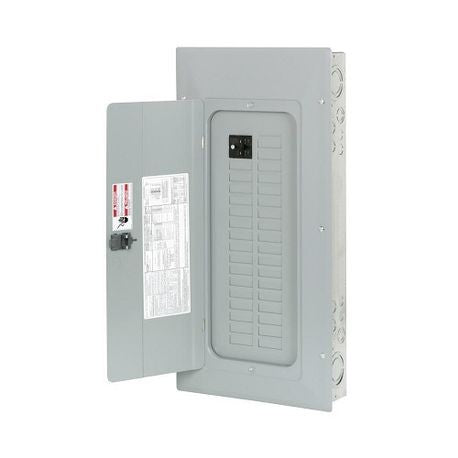

EATON BRP30BC100 1-Phase Main Breaker Load Center, 120/240 VAC, 100 A, 1 Poles, 10 kA Interrupt

Product Description

The EATON BRP30BC100 is a single-phase main breaker load center with a voltage rating of 120/240 VAC and an amperage rating of 100 A. This load center supports up to 60 circuits and has a total of 30 spaces designed for easy installation. The load center includes a cover and combination trim for added convenience.

• Supports 30 spaces and 60 circuits.
• Plug-on neutral for easy installation.
• Designed for NEMA 1 enclosure.

Product Highlights

The EATON BRP30BC100 load center provides reliable power distribution for residential and light commercial applications.

Product Information

Standard Information

• Manufacturer: EATON
• Part Number: BRP30BC100

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Number of Circuits: 60
• Dimensions: 29 inches L x 14.31 inches W x 3.88 inches H
• Enclosure Type: NEMA 1
• Mounting Type: Plug-On
• Wiring Configuration: 3-Wire
• Interrupt Rating: 10 kA
• Number of Spaces: 30
• Housing Material: Galvanized Steel
• Breaker Type: BR
• Included Accessories: Cover and Combination Trim
