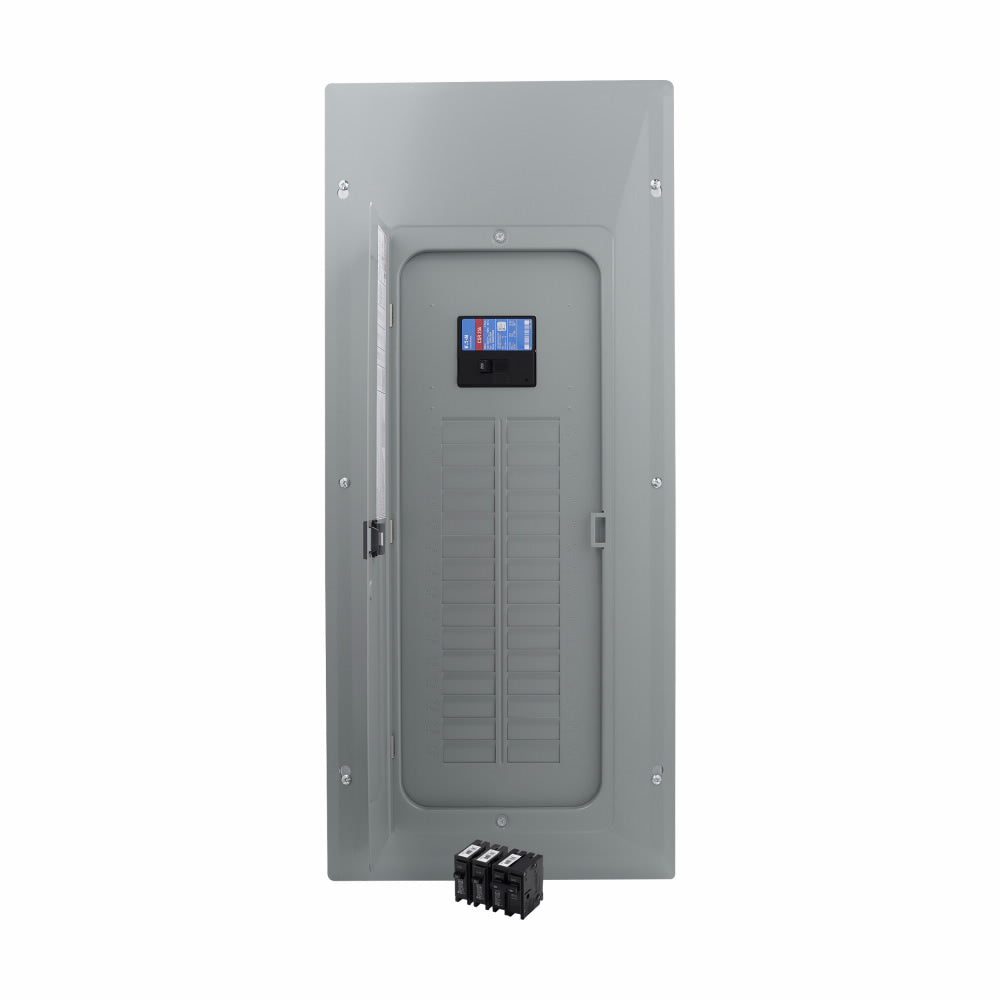

EATON BRP30B200V25 Type BR Single-Phase Plug-on Neutral Main Circuit Breaker Load Center Value Pack, 120/240 VAC, 200 Amp, NEMA 1

Product Description

The EATON BRP30B200V25 is a plug-on neutral main circuit breaker load center designed for single-phase applications. This unit operates at a voltage rating of 120/240 VAC and offers a 200 Amp capacity. It features a NEMA 1 enclosure that is suitable for indoor use. The load center comes with a cover and is built for efficient installation and use.

• Designed for easy installation with plug-on mounting.
• Junction for 60 circuits with a maximum of 30 spaces.
• Compatible with wiring sizes from six to two-aught AWG.

Product Highlights

This load center protects individual circuits and serves as the main disconnect for service entrances. It is suitable for residential buildings and light commercial applications.

Product Information

Standard Information

• Manufacturer: EATON
• Model Number: BRP30B200V25

Technical Specifications

• Type: 1-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 1
• Number of Spaces: 30
• Interrupt Rating: 22 kA
• Dimensions: 3.88 in L x 14.31 in W x 34 in H
• Enclosure Type: NEMA 1
• Wire Size: 6 to 2/0 AWG
• Housing Material: Galvanized Steel
• Includes: Cover
