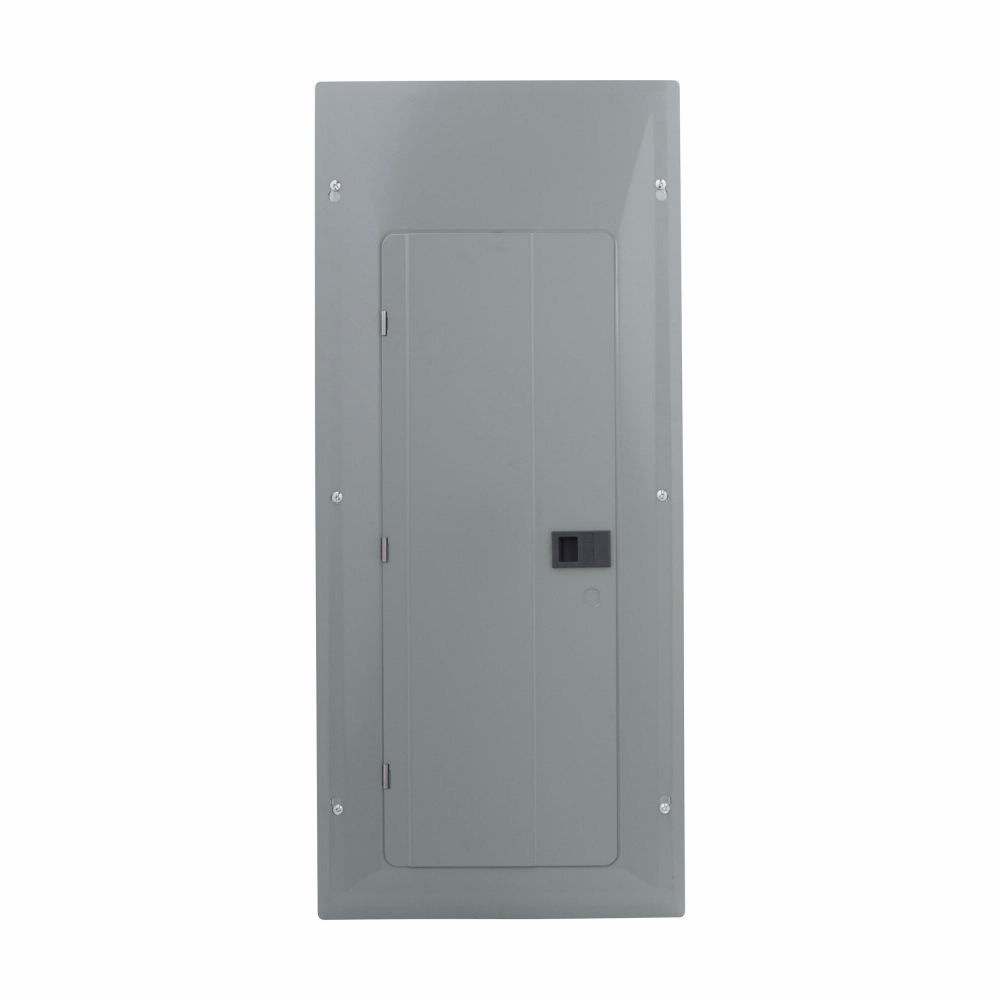

Eaton BRP30B200R Main Breaker Load Center 200A X6 NEMA 3R

Product Description

Eaton BRP30B200R is a main breaker load center designed for reliable performance in residential and commercial applications. This load center supports a maximum capacity of two hundred amps and utilizes plug-on neutral technology. It includes an aluminum cover and is rated NEMA 3R, making it suitable for outdoor installations.

• 200 amp capability for efficient power distribution.
• Features thirty spaces for circuit breakers.
• Compatible with Type BR breakers for flexibility in protection.

Product Highlights

Eaton's load centers provide essential housing for circuit breakers and wiring, ensuring safety and efficiency in electrical systems.

Product Information

Standard Information

• Catalog Number: BRP30B200R
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC
• Dimensions: 3.88 in L x 14.31 in W x 5.5 in H
• Enclosure Type: NEMA 3R
• Type: Single-phase
• Mounting Type: Plug-On
• Number of Circuits: 60
• Number of Spaces: 30
