EATON BRP24L125G CIRCUIT BREAKERS
EATON EATON BRP24L125G Type BR Single-Phase Main Lug Load Center with Ground Bar 24 Space/48 Circuit 120/240 VAC 125 Amp
EATON EATON BRP24L125G Type BR Single-Phase Main Lug Load Center with Ground Bar 24 Space/48 Circuit 120/240 VAC 125 Amp
EATON BRP24L125G CIRCUIT BREAKERS
EATON BRP24L125G Type BR Single-Phase Main Lug Load Center with Ground Bar 24 Space/48 Circuit 120/240 VAC 125 Amp
EATON BRP24L125G Type BR Single-Phase Main Lug Load Center with Ground Bar 24 Space/48 Circuit 120/240 VAC 125 Amp

EATON BRP24L125G Type BR Single-Phase Main Lug Load Center with Ground Bar 24 Space/48 Circuit 120/240 VAC 125 Amp

EATON
Brand: EATON
SKU: BRP24L125G
Availability: In Stock

Ships same day if ordered by 12 pm
$154.26
$154.26
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

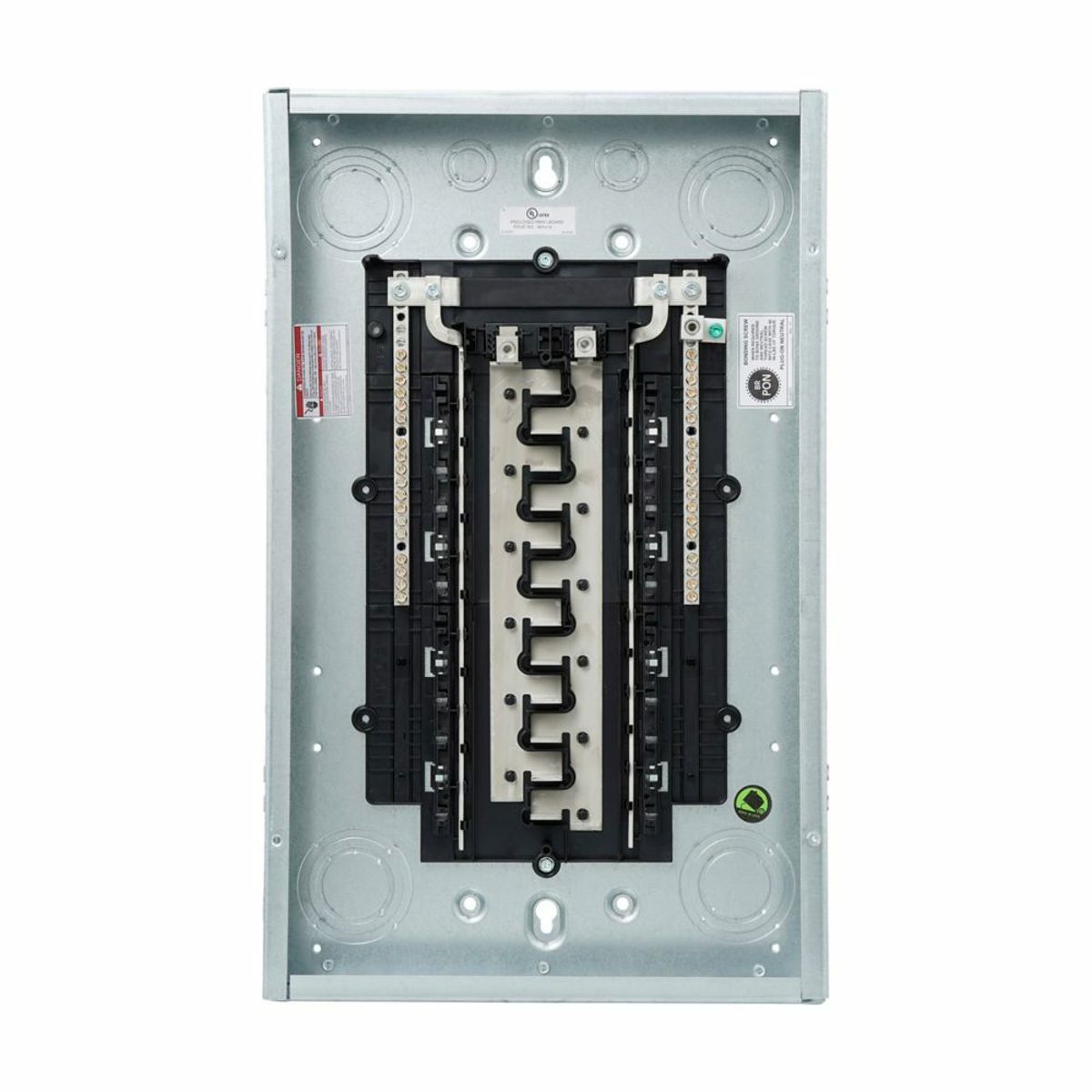

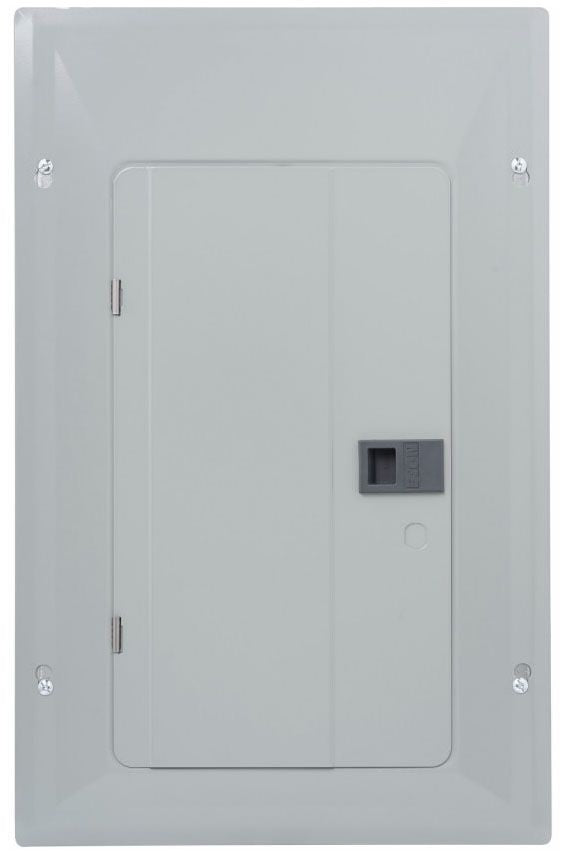

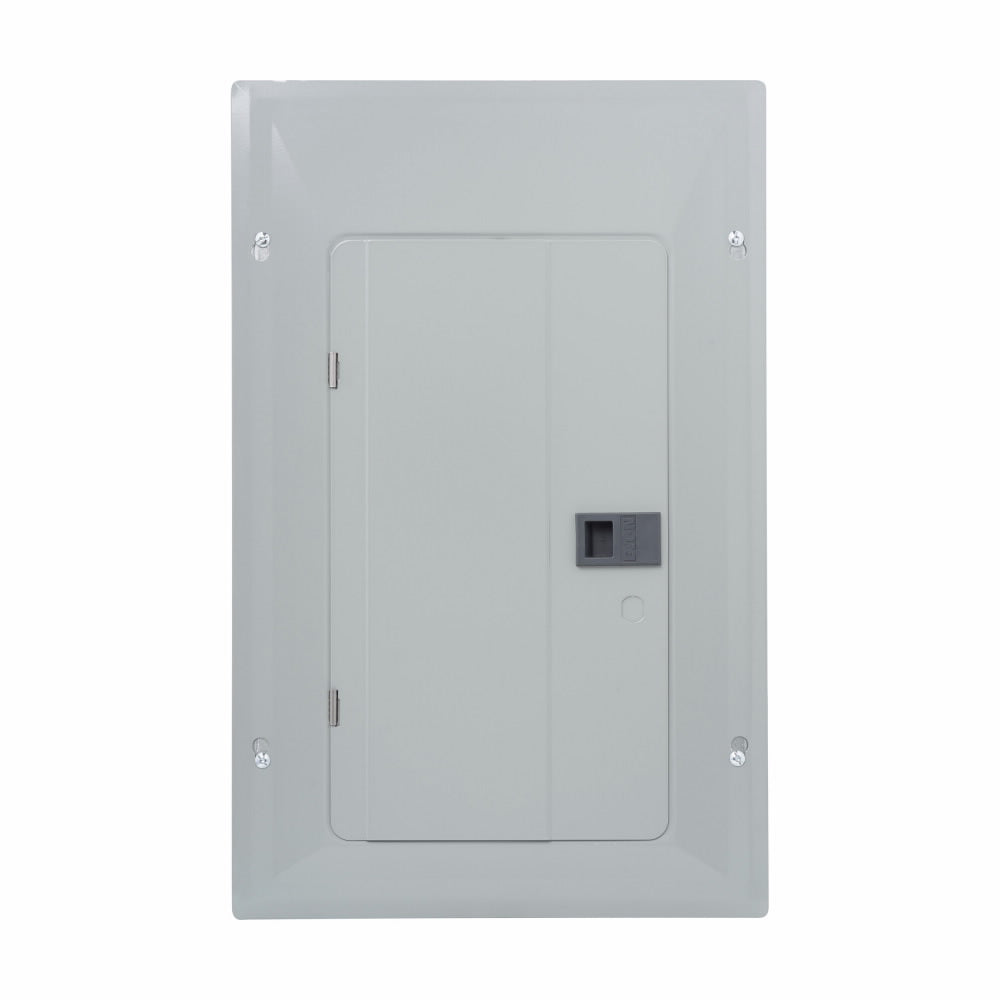

The EATON BRP24L125G is a type BR single-phase main lug load center designed for reliable power distribution. This load center features a ground bar and is rated at 125 amps with a voltage of 120/240 VAC. It is designed with 24 spaces and can accommodate up to 48 circuits, ensuring flexibility for various applications.

  • Includes ground bar for improved safety
  • Plug-on mounting system for easy installation
  • Galvanized steel enclosure for durability

Product Highlights

The EATON BRP24L125G provides ample circuit space and options for connecting wires. It serves as a main lug when adding circuits to existing service and can also act as a main breaker for service entrances.

Product Information

Standard Information

  • Manufacturer: EATON
  • Catalog Number: BRP24L125G
Technical Specifications
Amperage Rating
125 A
Voltage Rating
120/240 VAC
Number of Circuits
48
Number of Spaces
24
Breaker Type
BR/BRP
Mounting Type
Plug-On
Enclosure Type
NEMA 1
Dimensions
23 inches L x 14.31 inches W x 3.88 inches H
