Eaton BRP20NC125R BR Pon Lc 125a, Con

Product Description

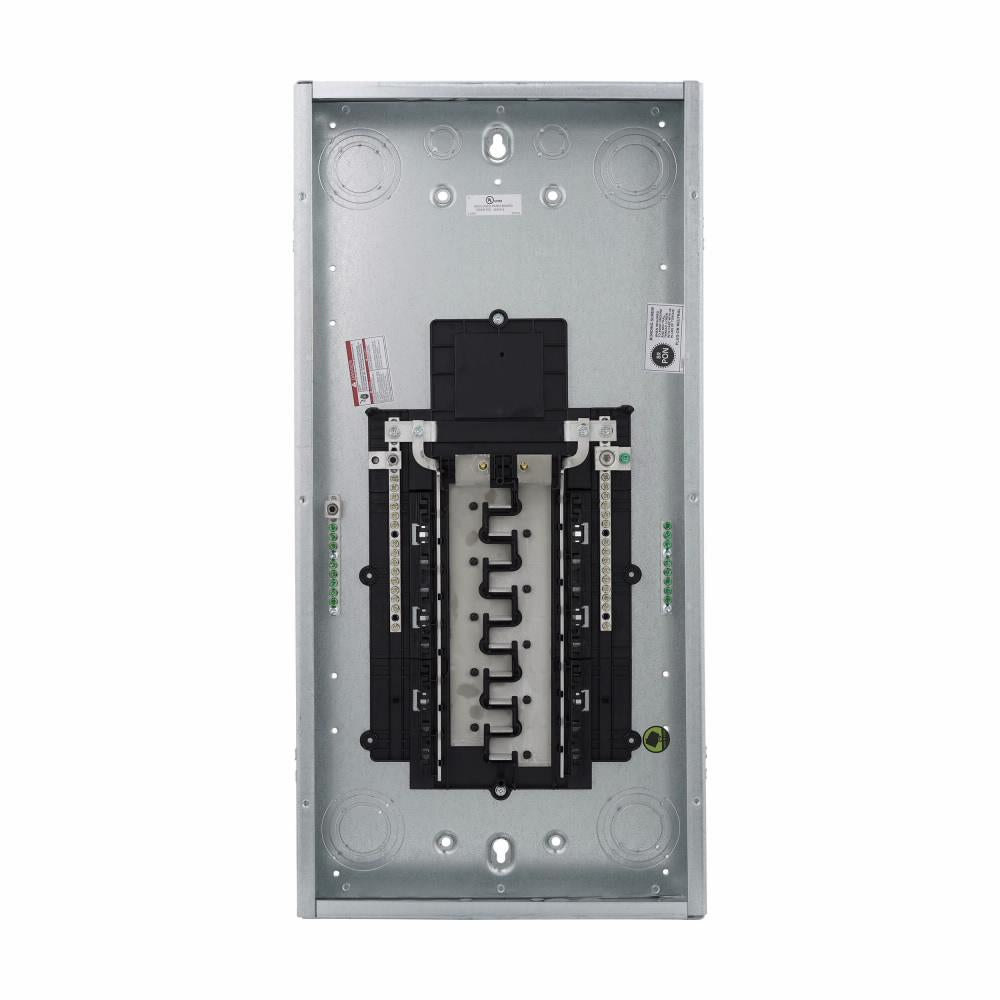

The Eaton BRP20NC125R BR convertible loadcenter is designed to house branch circuit breakers and wiring for distributing power to individual circuits. Rated at 125A and 120/240V, it features a copper bus, NEMA 3R enclosure, and a 10 kAIC interrupt rating. This single-phase load center accommodates 40 circuits and 20 spaces.

• Convertible
• 125 A
• Copper Bus

Product Highlights

The Eaton BRP20NC125R loadcenter is ideal for residential buildings and facilities, offering combination mounting and accommodating type BR 1-inch breakers.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BRP20NC125R
• Country of Origin: USA

Technical Specifications

• Type: Convertible
• Brand: Eaton
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Enclosure: NEMA 3R
• NEMA Size: 3R

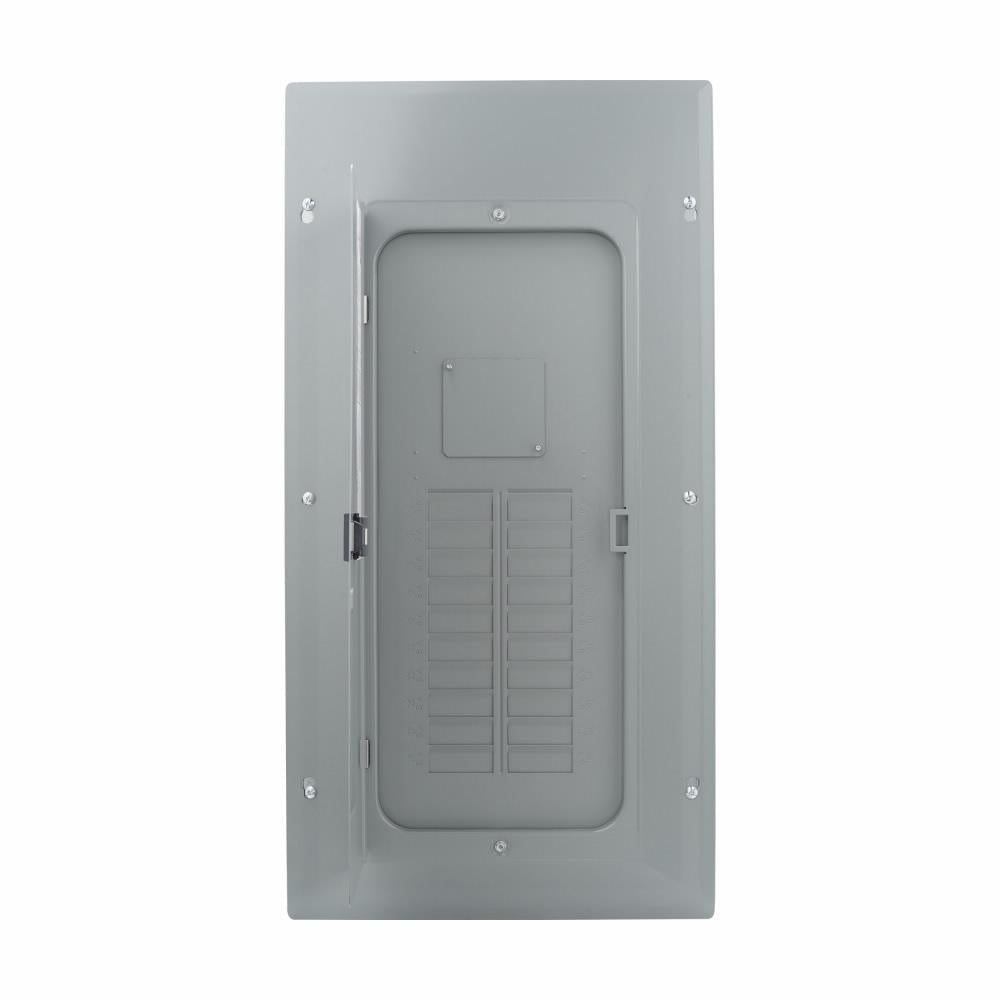

• Cover Type: Cover included
• Bus Material: Copper
• Mounting Type: Combination
• Number of Wires: 3 Wire
• Interrupt Rating: 10 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 20
• Enclosure Material: Metal
• Number of Circuits: 40
• Breaker Mounting: Plug-On Neutral
• Breaker Type: BR
• Bus Rating: 125 A
• Housing Material: Sheet Steel
• Wiring Configuration: 3
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Short Circuit Current Rating: 10 kAIC
• Configuration: Combination
• Pole: Single-pole
• Phase: Single-phase
• Standard & Approvals: ARRA Compliant|BAA Compliant|RoHS Compliant|UL 50/67/E8741
• Includes: Cover
• Warranty: 10 year
• Certifications: UL 50 UL 67
• Product Type: Convertible loadcenter
• Mounting: Surface
• Volts AC: 120/240
• Family / Style: BR
