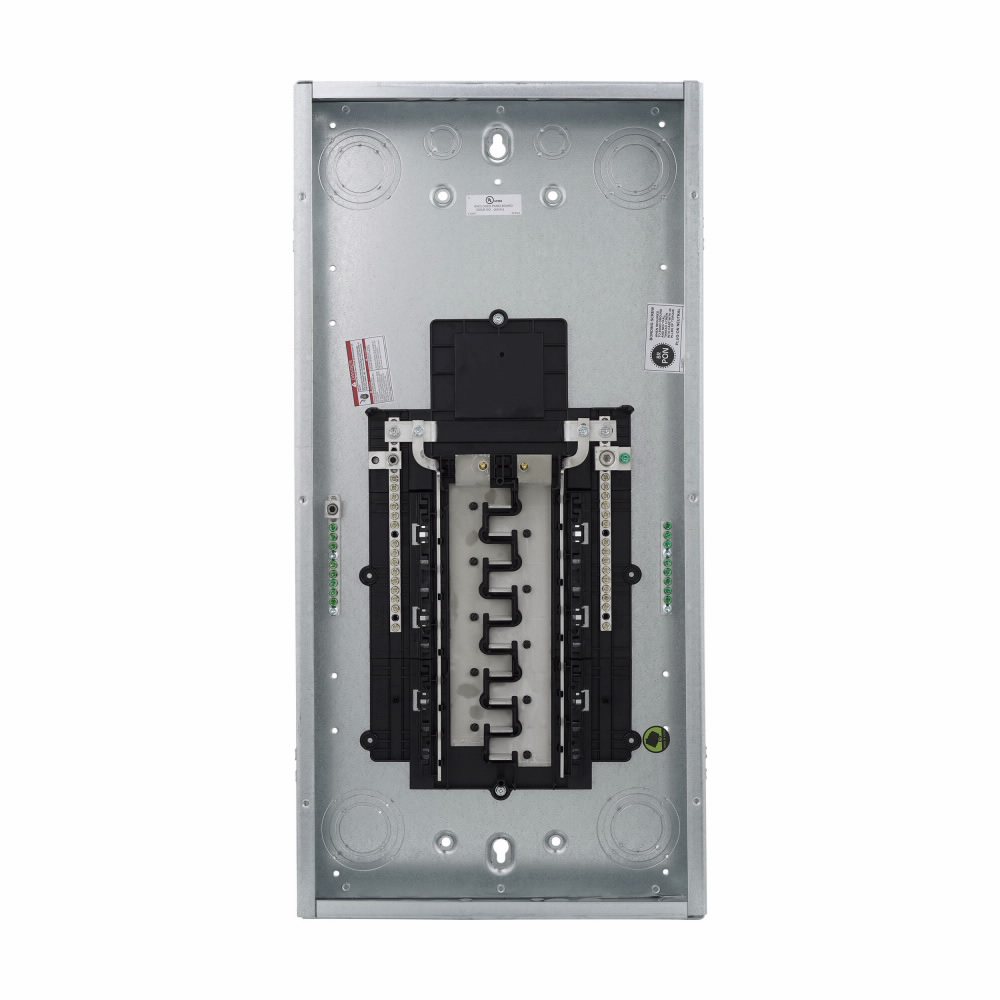

Eaton BRP20N200R Type BR Single-Phase Convertible Load Center 200 Amp 20 Space 40 Circuit NEMA 3R

Product Description

The Eaton BRP20N200R is a single-phase convertible load center designed for electrical distribution. This model features twenty spaces and forty circuits, accommodating a wide range of electrical loads. With a voltage rating of 120/240 VAC and a current capacity of 200 Amps, it is suitable for residential and commercial applications.

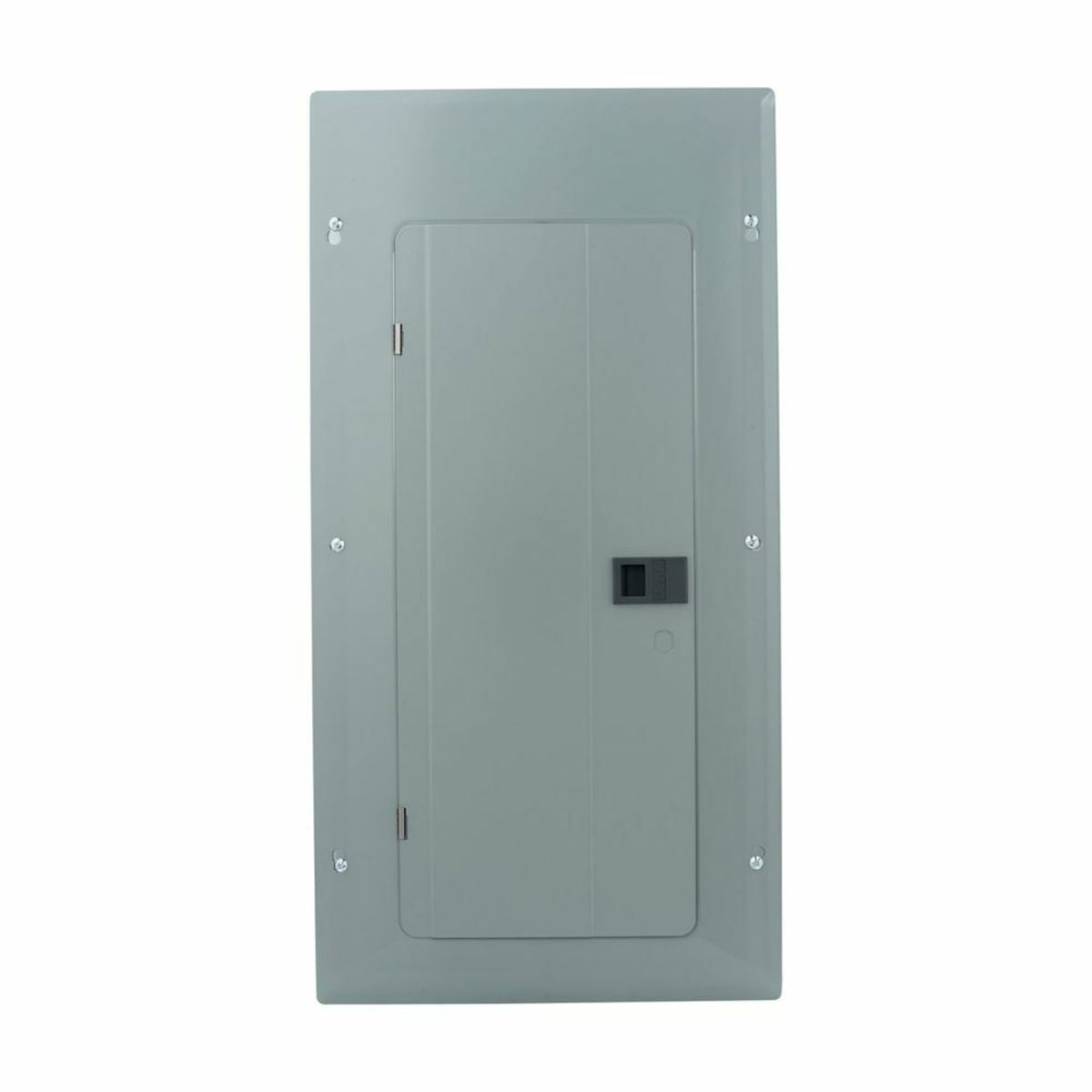

• Includes a cover for protection and access.
• NEMA 3R enclosure provides rain-tight protection.
• 10 kA interrupt rating for enhanced safety.

Product Highlights

This load center facilitates easy installation and serves as either a main breaker at service entrances or as a sub-panel to add circuits. The main breaker safeguards the entire panel, while the branch breakers protect circuits leading to outlets and fixtures.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: BRP20N200R

Technical Specifications

• Type: Single-Phase
• Bus Rating: 200 A
• Dimensions: 3.88 inches in length x 14.31 inches in width x 29.13 inches in height
• Enclosure Type: NEMA 3R
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Breaker Type: BR
• Number of Spaces: 20
• Number of Circuits: 40
