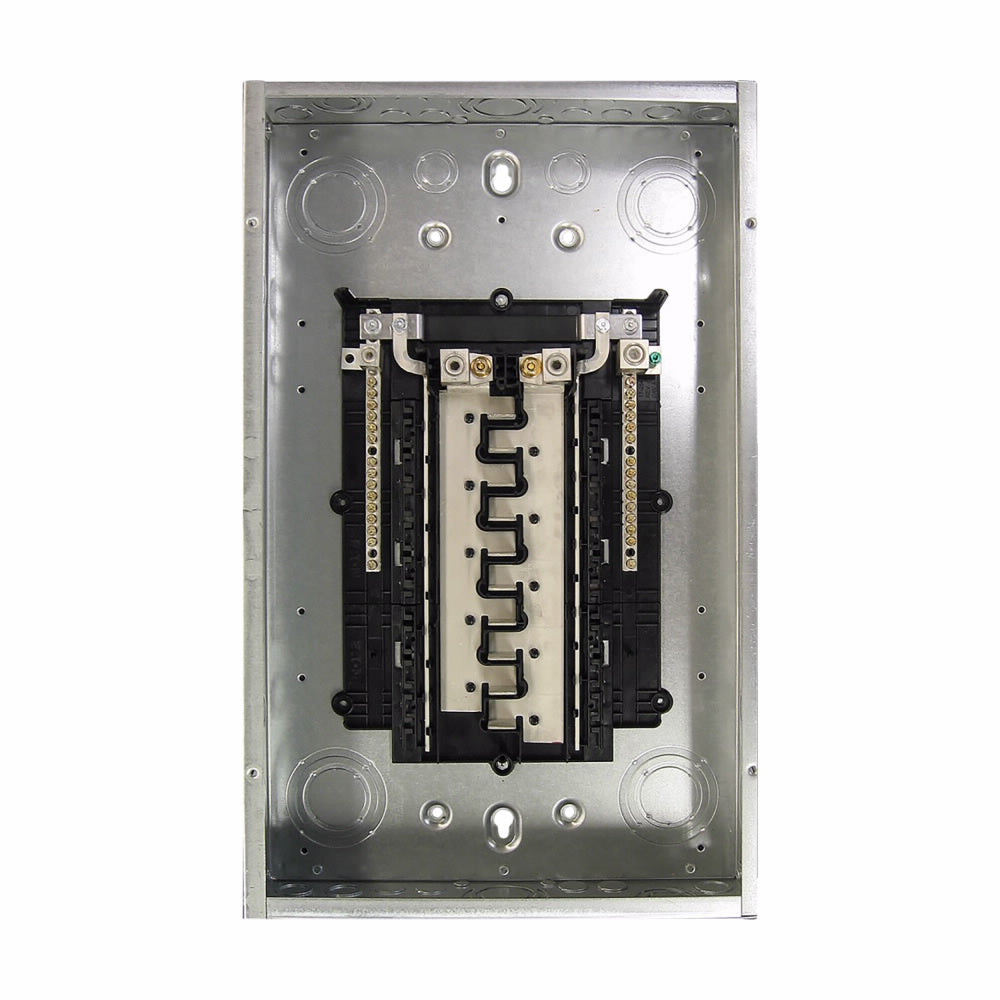

EATON BRP20L200G 1-Phase Insulated/Bondable Split Main Lug Neutral Load Center with Ground Bar, 200A, 120/240 VAC

Product Description

EATON BRP20L200G is a 1-Phase Insulated/Bondable Split Main Lug Load Center designed for reliable power distribution. This load center operates at 120/240 VAC with a 200 Amp capacity and accommodates 20 spaces for circuits. It is equipped with a ground bar and supports up to 40 circuits, making it suitable for both residential and light commercial applications.

• Features a steel backpan for stable breaker mounting.
• Includes easy-to-use plug-on mounting configuration.
• Accommodates wire sizes from 1 AWG to 300 kcmil.

Product Highlights

This load center is built for easy installation and efficient power management, ensuring your electrical system remains safe and functional.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Enclosure Type: NEMA 1
• Wiring Configuration: 3-Wire
• Dimensions: 23 inches L x 14.31 inches W x 3.88 inches D
• Breaker Type: BR/CSR
• Interrupt Rating: 10 kAIC
• Housing Material: Galvanized Steel

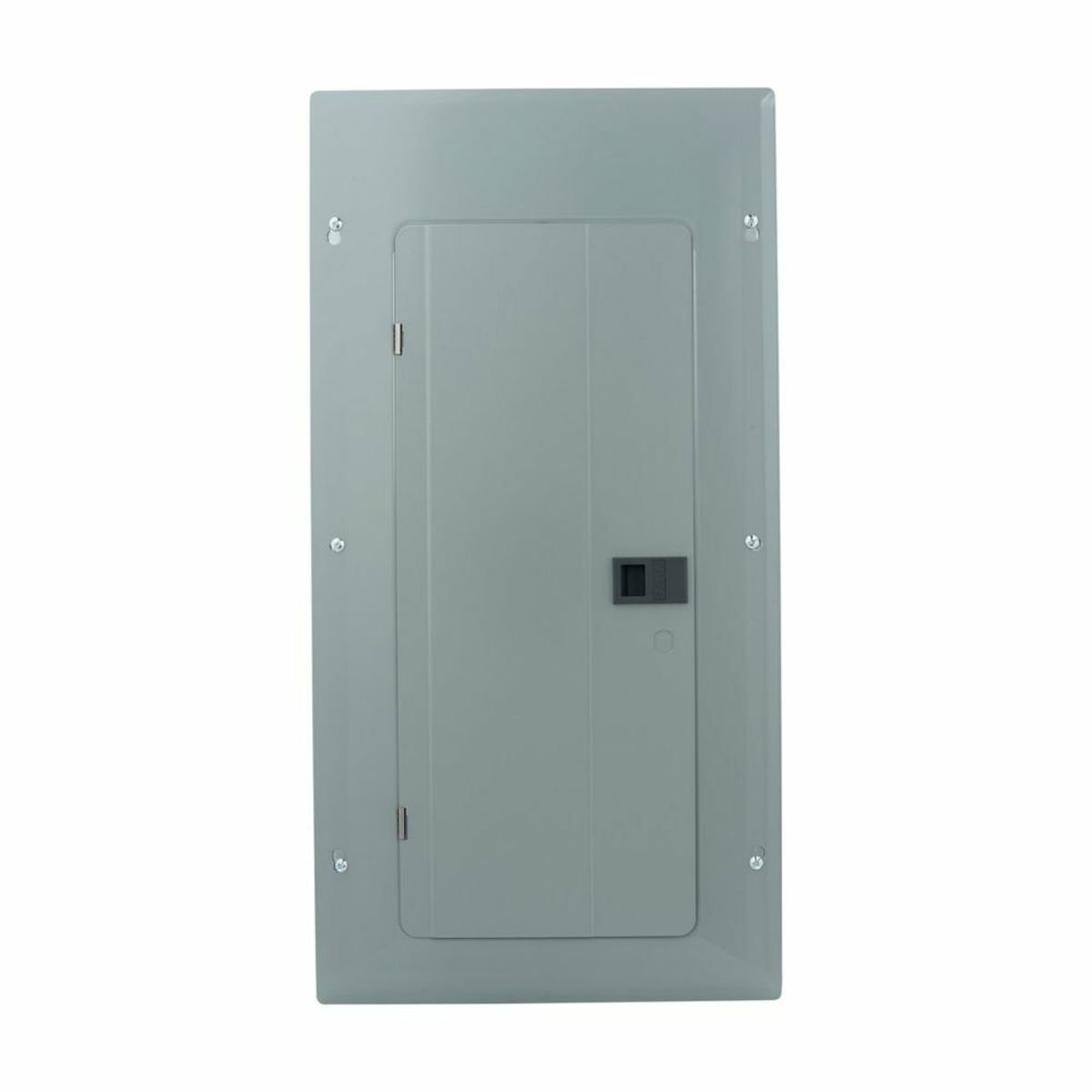

• Includes: Cover and Combination Trim
