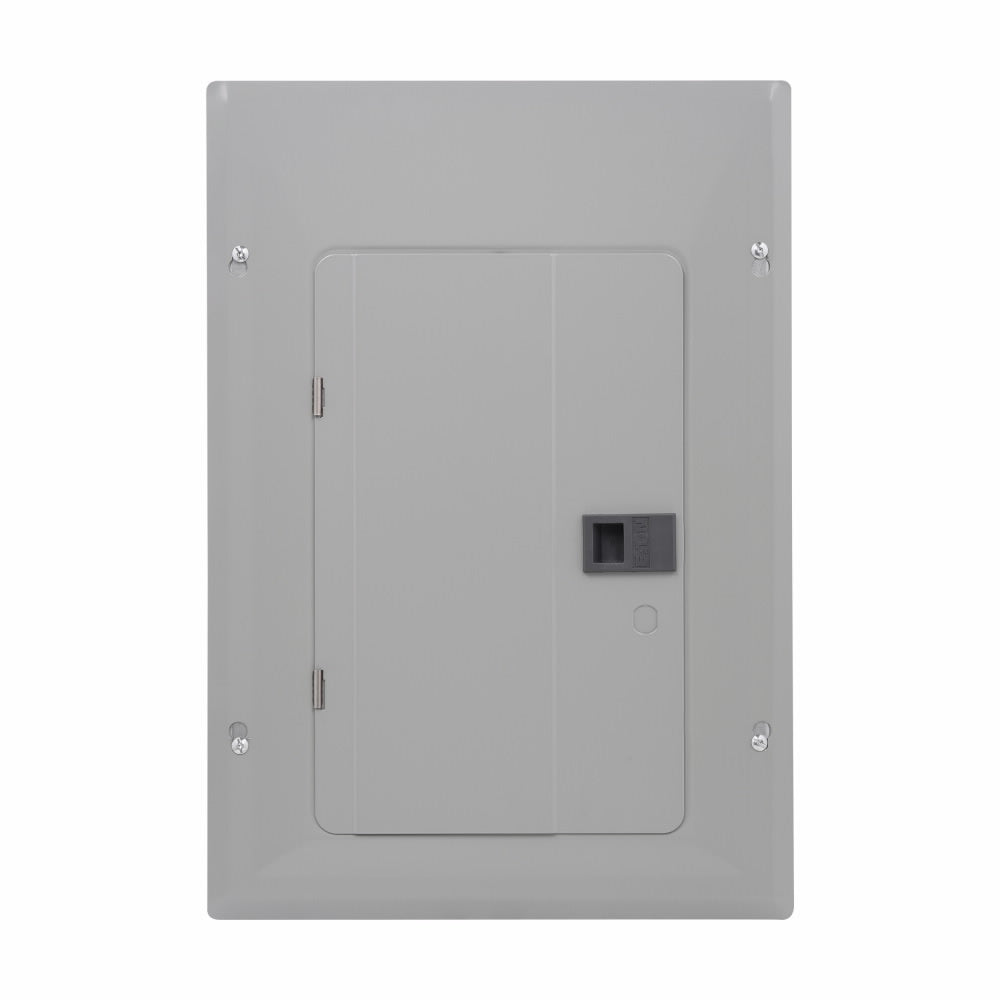

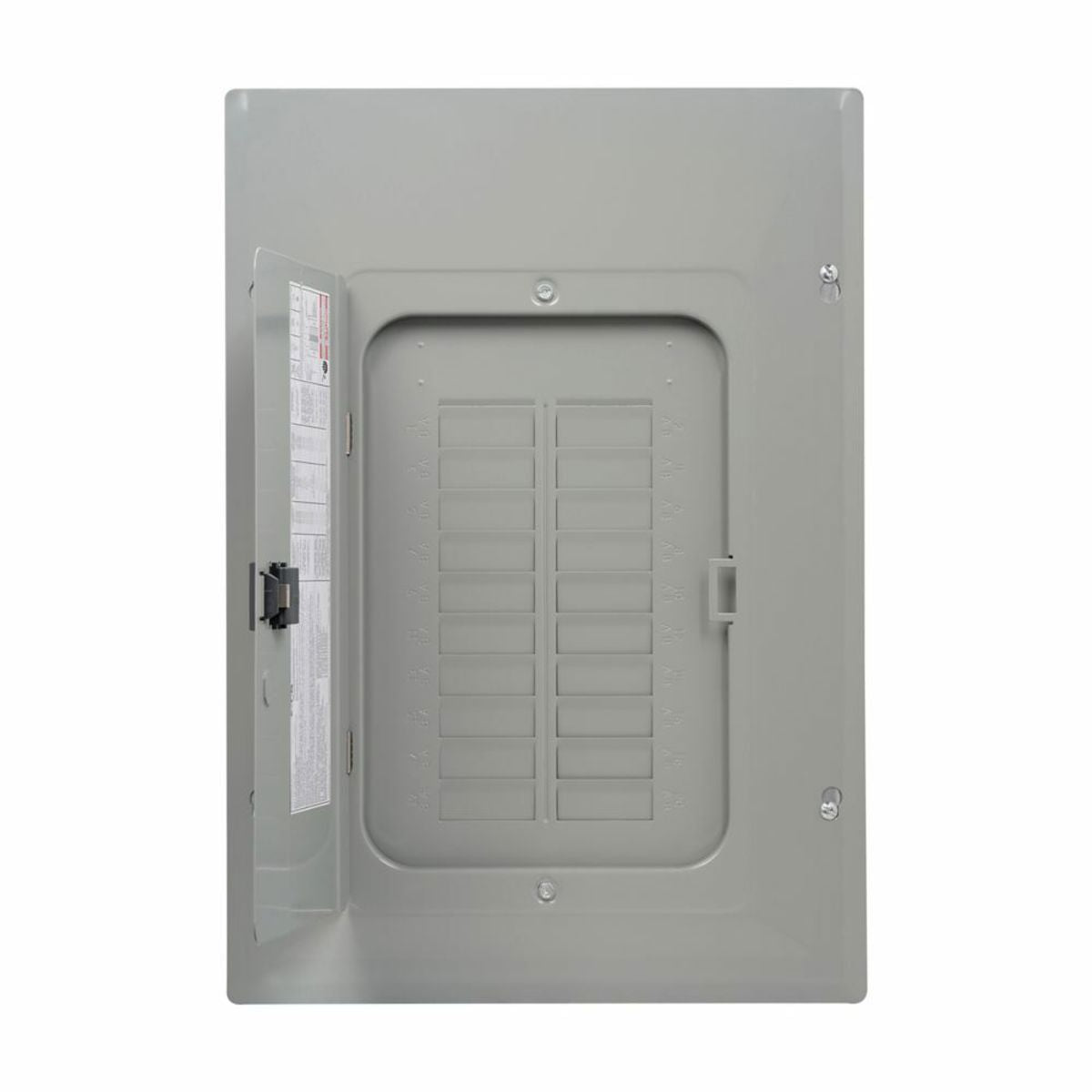

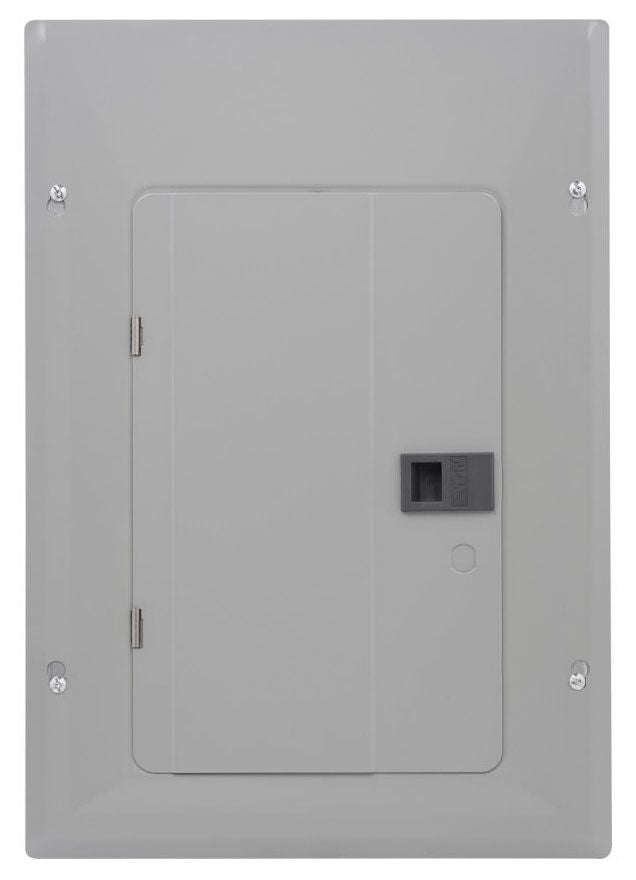

Eaton BRP20L125G Type BR Single-Phase Main Lug Load Center with Ground Bar, 20 Space/40 Circuit, 120/240 VAC, 125 Amp, NEMA 1

Product Description

The Eaton BRP20L125G is a single-phase main lug load center. It is designed for reliable power distribution in residential and light commercial settings. This load center operates at 120/240 VAC with a 125 Amp rating and supports up to 40 circuits across 20 spaces. It also includes a ground bar feature for safety and convenience.

• Extra 1-1/2 inch knockout for easier installation.
• Support for wire sizes from 6 to 2/0 AWG.
• Galvanized steel housing for durability.

Product Highlights

This load center serves as a sub-panel or main panel. It can protect individual circuits while housing branch circuit breakers. Suitable for both top and bottom feed configurations.

Product Information

Standard Information

• Brand: Eaton
• MPN: BRP20L125G

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Spaces: 20
• Number of Circuits: 40
• Enclosure Type: NEMA 1
• Housing Material: Galvanized Steel
• Dimensions: 21 inches L x 14.31 inches W x 3.88 inches H
