EATON EATON BRP20L125 Type BR Single-Phase Main Lug Load Center, 120/240 VAC, 125 Amp, NEMA 1

EATON BRP20L125 Type BR Single-Phase Main Lug Load Center, 120/240 VAC, 125 Amp, NEMA 1

Name: EATON BRP20L125 Type BR Single-Phase Main Lug Load Center, 120/240 VAC, 125 Amp, NEMA 1
Brand: EATON
SKU: BRP20L125
Price: 151.07 USD
Availability: InStock

Brand: EATON

SKU: BRP20L125

Availability: In Stock

Ships same day if ordered by 12 pm

Quantity:

$151.07; $151.07
Unit price: per

Manuals:

Manual

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

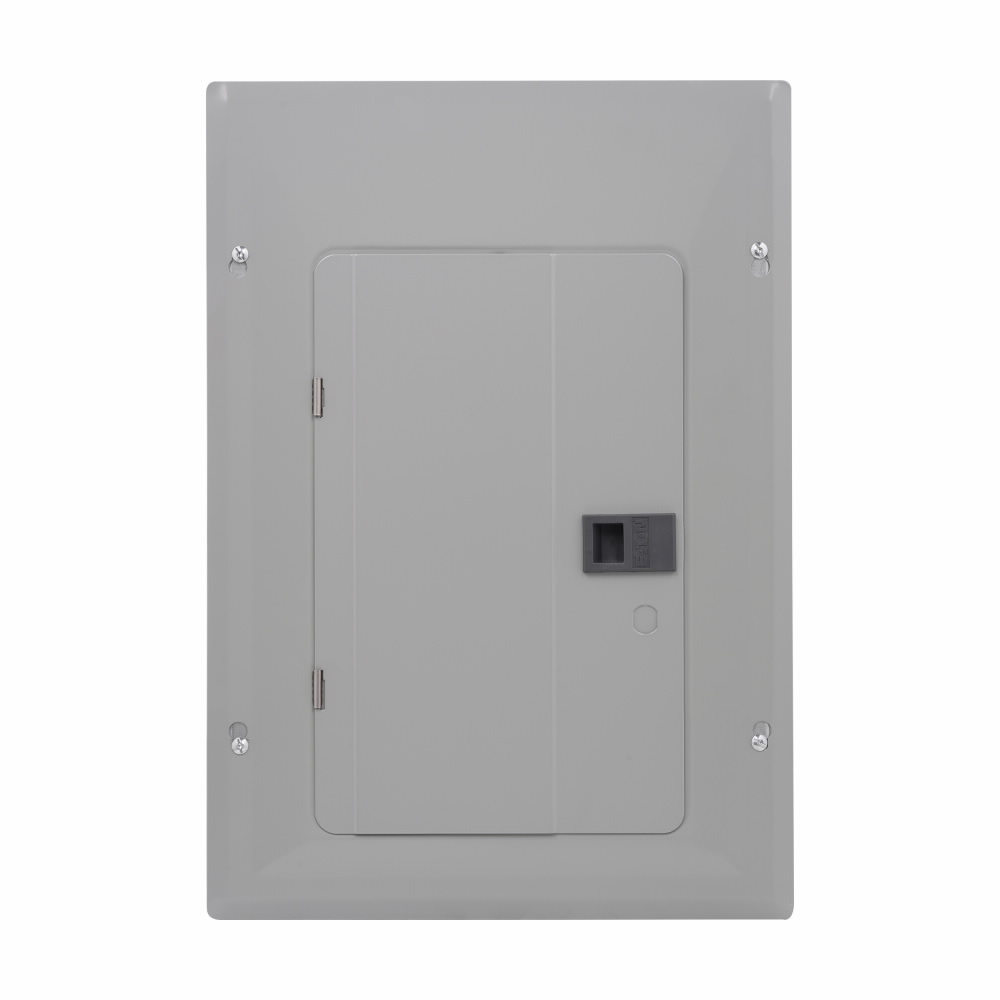

EATON BRP20L125 Type BR Single-Phase Main Lug Load Center is designed for electric distribution in residential and light commercial applications. It operates at 120/240 VAC with a capacity of 125 A. The load center accommodates 20 spaces and 40 circuits, providing a robust solution for electrical distribution.

Utilizes standard 1-inch Type BR breakers.
Features plug-on mounting for streamlined installation.
Constructed with a galvanized steel housing for durability.

Product Highlights

This load center is ideal for use as a sub-panel or as the main supply point in residential settings.

Product Information

Standard Information

Brand: EATON
Manufacturer: EATON

Technical Specifications

MPN

BRP20L125

Voltage Rating

120/240 VAC

Amperage Rating

125 A

Number of Poles

Number of Circuits

Number of Spaces

Wiring Configuration

3-Wire

Enclosure Type

NEMA 1

Dimensions

21 in L x 14.31 in W x 3.88 in H

Cover Type

Cover included

Interrupt Rating

10 kA

Wire Size

6 to 2/0 AWG
