Eaton BRP20HC100 Main Circuit Breaker Loadcenter 100A X3 NEMA 1

Product Description

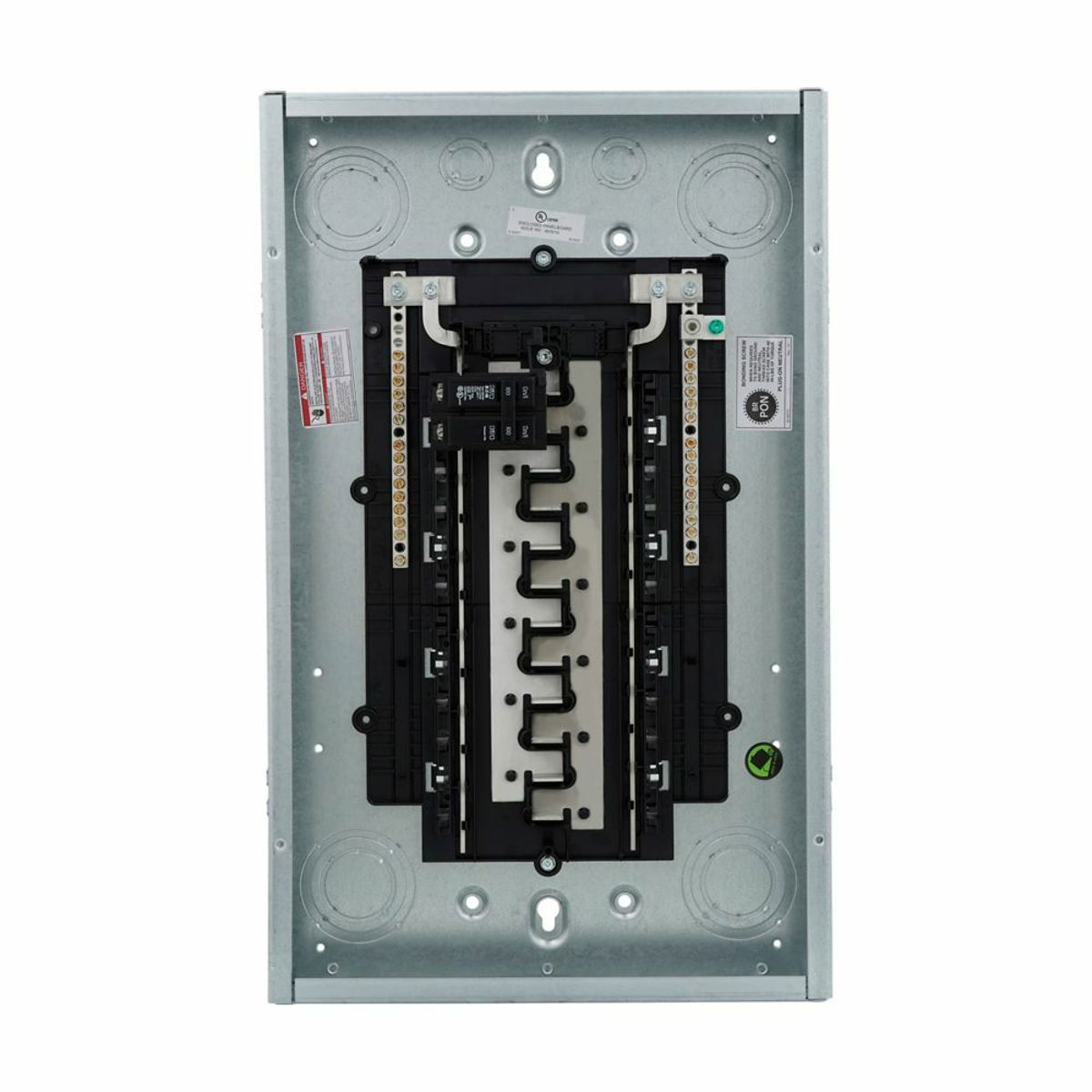

Eaton's BRP20HC100 is a plug-on neutral main circuit breaker loadcenter designed for easy installation. This product supports a 100 amp capacity, suitable for various electrical applications. It features a copper bus material and includes a cover. The loadcenter supports up to forty circuits, with twenty spaces for breakers, making it ideal for both service entrances and existing service upgrades. The device is rated for a voltage of one hundred twenty to two hundred forty volts and has an interrupt rating of twenty-two kiloamperes.

• Plug-on neutral design
• Features twenty spaces and forty circuits
• Rated at 100 Amps, 120/240 Volts

Product Highlights

The Eaton BRP20HC100 provides reliable circuit protection for residential or commercial installations. It is built for single-phase applications and meets NEMA type 1 enclosure standards.

Product Information

Standard Information

• Catalog Number: BRP20HC100
• Manufacturer: Eaton

Technical Specifications

• Height: 3.88 inches
• Length: 23 inches
• Weight: 22.2 lb
• Voltage Rating: 120/240 V
• Amperage Rating: 100 Amps
• Enclosure Type: NEMA 1

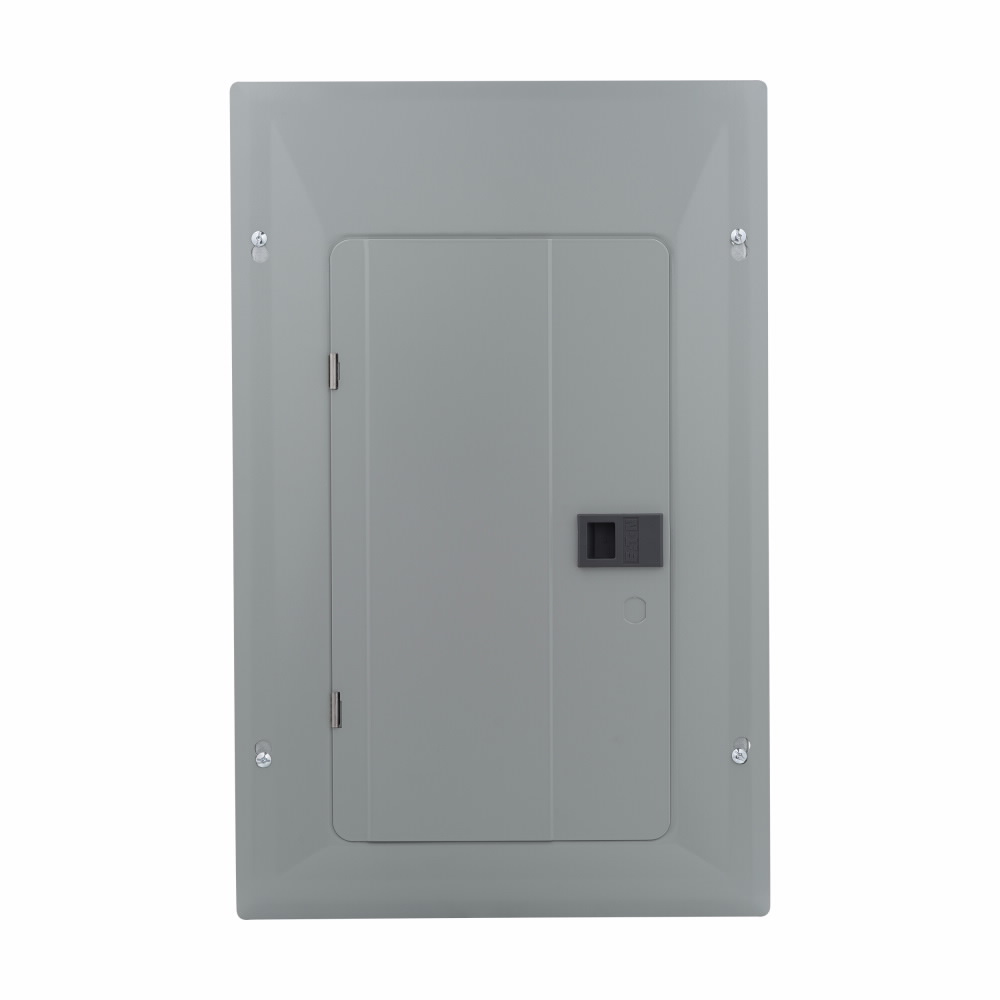

• Cover Type: Cover included
• Interrupt Rating: 22 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 20
• Number of Circuits: 40
• Country of Origin: United States
