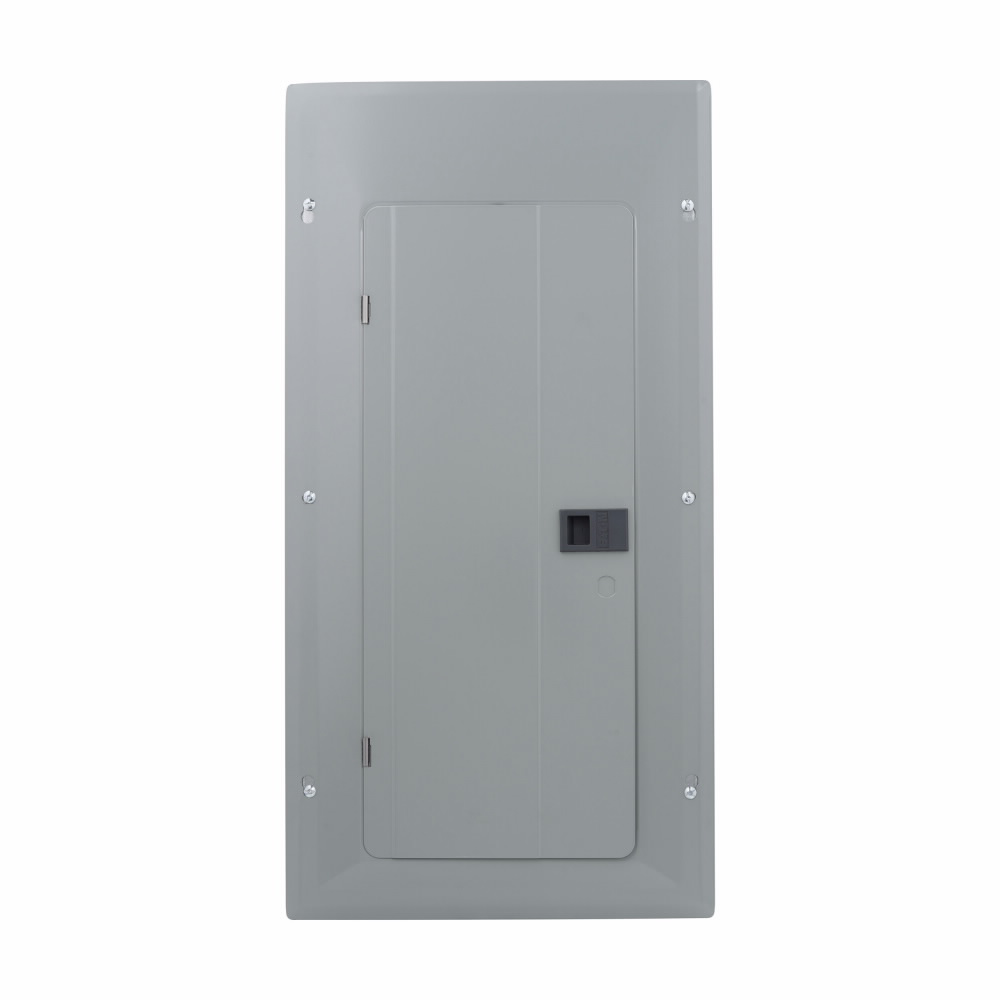

Eaton BRP20B150 ETN BR PON LC,150A, MCB

Product Description

The Eaton BRP20B150 is a plug-on neutral main circuit breaker load center designed for single-phase applications. This unit has a rating of one hundred fifty amperes and is suitable for use in electrical assemblies and panels. The product features a NEMA 1 enclosure and includes a cover for the load center. It's capable of housing up to forty circuits with a configuration for two hot wires, a neutral, and a ground.

• Houses up to forty circuits
• Included cover for protection
• NEMA 1 rated enclosure

Product Highlights

This load center supports various wire sizes from two AWG to three hundred kcmil. It also provides a commercial-grade main breaker with a twenty-five kAIC interrupt rating, making it suitable for diverse applications.

Product Information

Standard Information

• Brand: Eaton
• Type: Plug-on Neutral Main Circuit Breaker Loadcenter
• Application: Electrical Assemblies, Panels and EOEM

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 120/240 VAC
• Number of Circuits: 40
• Number of Spaces: 20
• Number of Poles: 1
• Dimensions: 27 in L x 14.31 in W x 3.88 in H
• Enclosure Type: NEMA 1
• Mounting Type: Plug-On
