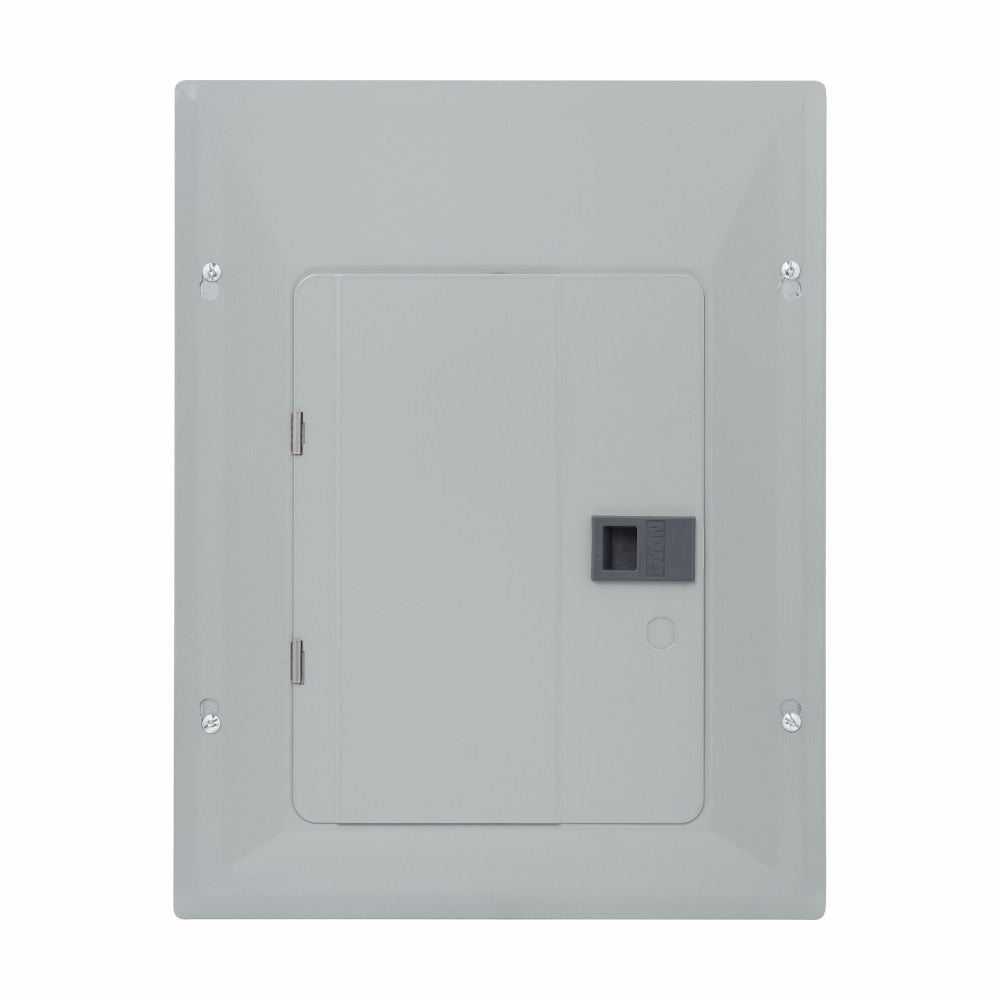

EATON BRP16L125G 1-Phase Insulated/Bondable Split Main Lug Neutral Load Center, 120/240 VAC, 125 A, 1 Poles, 10 kA Interrupt

Product Description

The EATON BRP16L125G is a single-phase main lug load center designed for effective power distribution. With a voltage rating of 120/240 VAC and a maximum current of 125 amps, this load center accommodates up to 32 circuits and has 16 spaces available for circuit breakers.

• Compatible with 6 to 2/0 AWG wire sizes
• Equipped with a ground bar for safety
• NEMA 1 enclosure suitable for indoor use

Product Highlights

This load center is ideal for residential and light commercial applications. It includes a cover and combination trim for easy installation. The design features a galvanized steel housing and a practical plug-on mounting system.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: BRP16L125G

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 1
• Number of Spaces: 16
• Number of Circuits: 32
• Interrupt Rating: 10 kA
• Wiring Configuration: 3-Wire
• Enclosure Type: NEMA 1
• Dimensions: 18.75 in L x 14.31 in W x 3.88 in H
