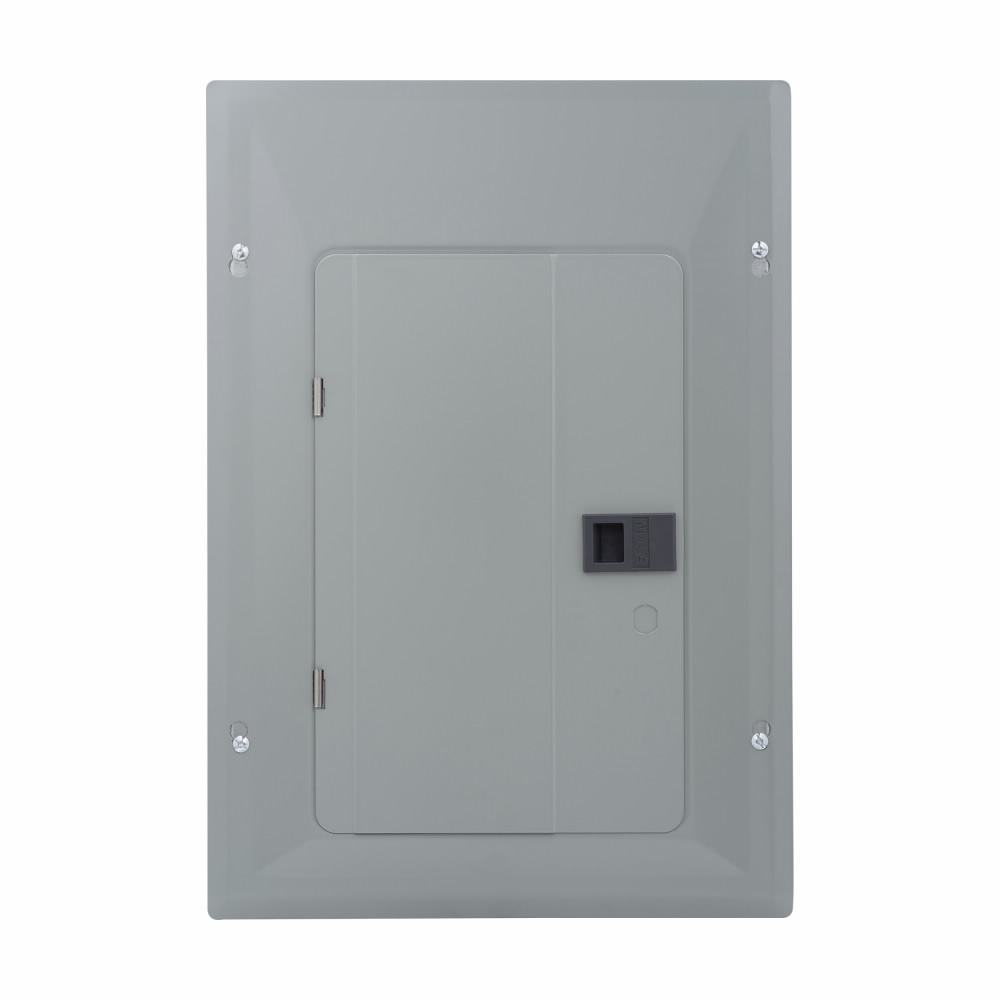

EATON BRP16B100 1-Phase Main Breaker Load Center 120/240 VAC 100 A 1 Poles 10 kA Interrupt

Product Description

The EATON BRP16B100 is a 1-phase main breaker load center designed to distribute power effectively in residential and commercial settings. This load center operates at 120/240 VAC and features a 100 Amp rating. It includes 16 spaces for circuit breakers, allowing for up to 32 circuits with a plug-on neutral design, making it easier to install circuit breakers. This product is built with a NEMA 1 enclosure which provides protection in indoor environments.

• Type BR breaker for reliable performance.
• 10 kA interrupt rating for enhanced safety.
• Galvanized steel housing for durability.

Product Highlights

Designed for easy installation, the EATON BRP16B100 combines functionality and safety in one unit.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: BRP16B100

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Number of Spaces: 16
• Number of Circuits: 32
• Dimensions: 21 inches L x 14.31 inches W x 3.88 inches H
• Enclosure Type: NEMA 1
• Interrupt Rating: 10 kA
• Wire Size: 4 to 1/0 AWG
• Mounting Type: Plug-On
• Housing Material: Galvanized Steel
• Breaker Type: BR
• Wiring Configuration: 3-Wire
• Country of Origin: United States
