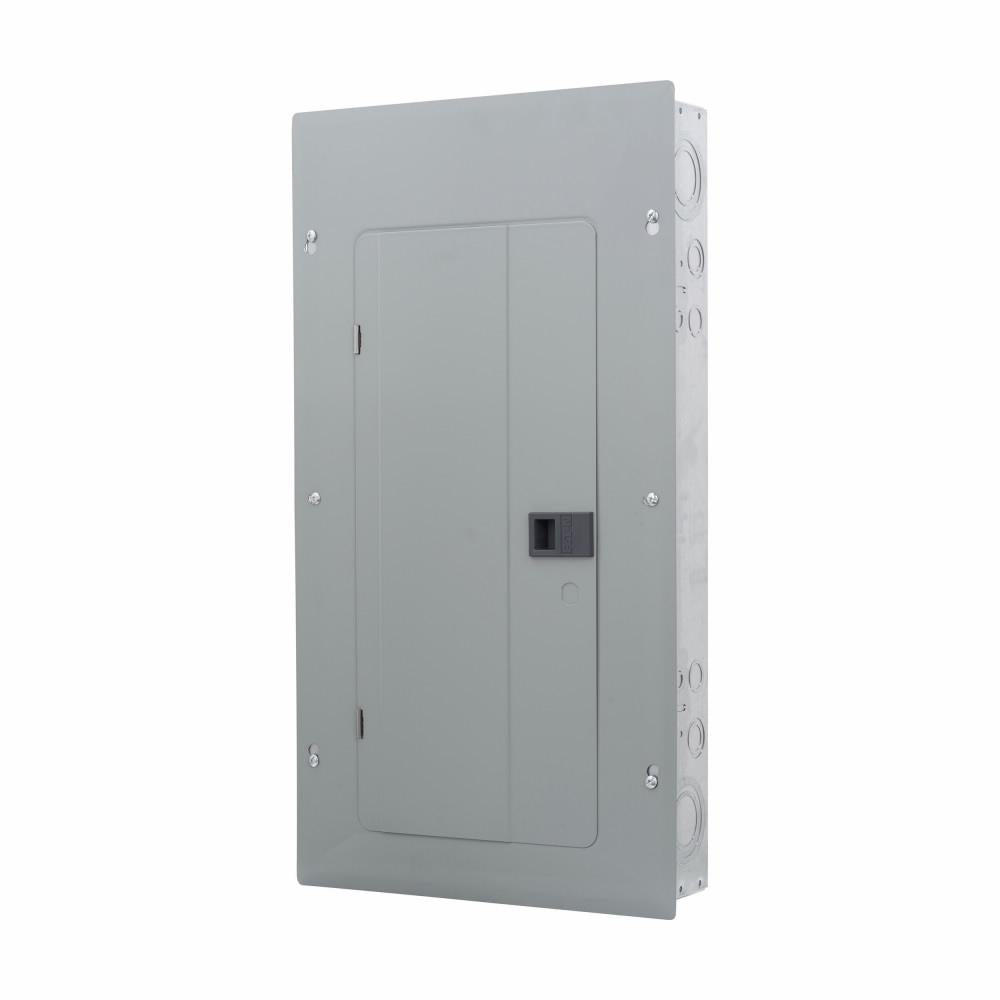

Eaton BRP12NC125R Br Pon Lc 125A, Con

Product Description

The Eaton BRP12NC125R BR convertible loadcenter is designed to house branch circuit breakers and wiring for distributing power to individual circuits. Rated at 125A and 120/240V, it features a copper bus and a NEMA 3R metallic enclosure. This single-phase loadcenter supports 24 circuits across 12 spaces and has a 10 kAIC interrupt rating.

• Convertible
• 125A
• Copper Bus

Product Highlights

Eaton BRP12NC125R loadcenter with 125A, NEMA 3R enclosure, and copper bus, ideal for residential buildings and facilities.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BRP12NC125R
• Country of Origin: USA

Technical Specifications

• Catalog Number: BRP12NC125R
• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton
• Amperage: 125 Amp
• Voltage: 120/240 Volt
• Enclosure: NEMA 3R
• Cover Type: Cover included
• Bus Material: Copper
• Mounting Type: Combination
• Number of Wires: 3 Wire
• Interrupt Rating: 10 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 12
• Enclosure Material: Metal
• Number of Circuits: 24
• Type: Converible
• Height: 5.7 Inch
• Length: 3.88 Inch
• Product UPC: 78668905921
• 12-Digit UPC: 786689059217
• Breaker Mounting: Plug-On Neutral
• Breaker Type: BR
• Bus Rating: 125 A
• Housing Material: Sheet Steel
• Wiring Configuration: 3-Wire
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 1
• Short Circuit Current Rating: 10 kAIC
• Phase: Single-phase
• Pole: Single-pole
• Product Name: Eaton BR convertible loadcenter
• Product Length/Depth: 3.88 in
• Product Height: 5.7 in
• Product Width: 14.31 in
• Warranty: 10 year
• Certifications: UL 67 UL 50
• Product Type: Convertible loadcenter
• Cover: Cover included
• Main circuit breaker: BR
• Mounting: Surface
• Volts AC: 120/240
• Circuits: 24
• Family / Style: BR
• IP/NEMA Rating: NEMA 3R
• Standard & Approvals: ARRA Compliant|BAA Compliant|RoHS Compliant|UL 50/67/E8741
• Includes: Cover
