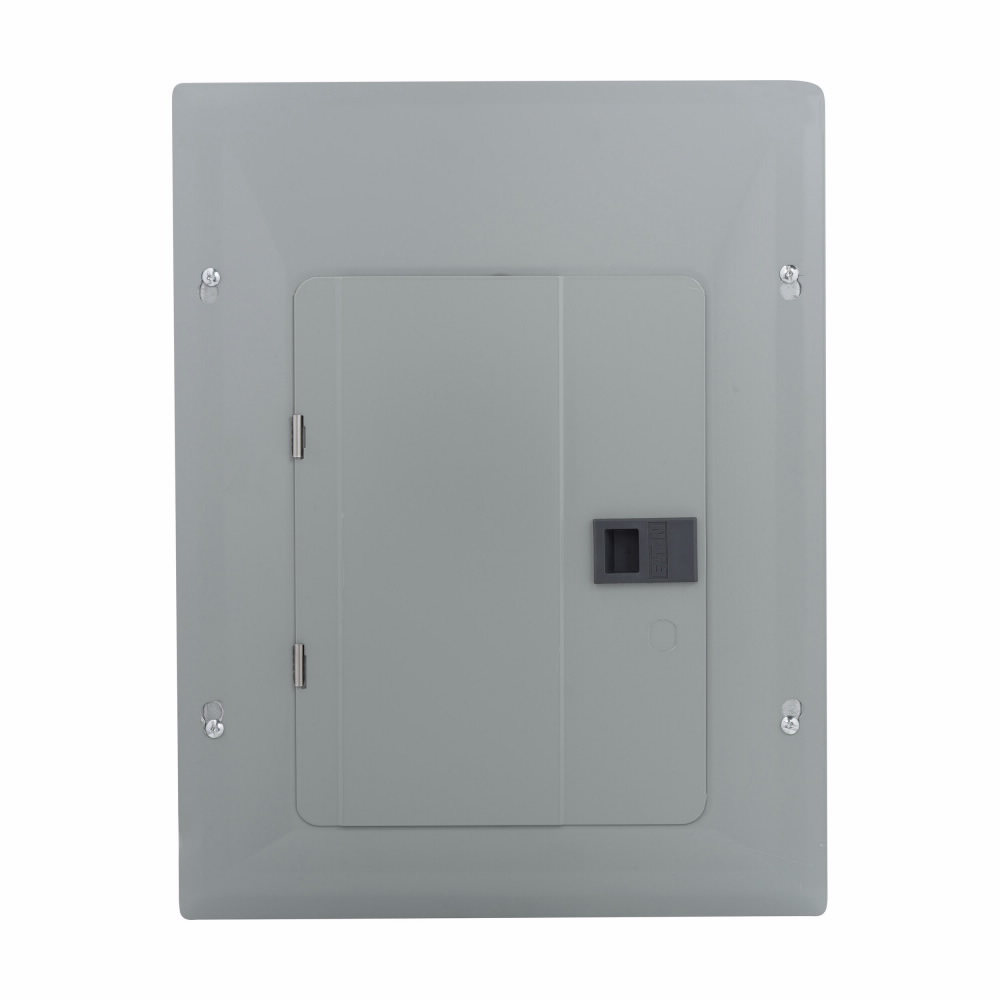

Eaton BRP12N125R Type BR Single-Phase Convertible Load Center, 12 Space/24 Circuit, 120/240 VAC, 125 Amp, NEMA 3R

Product Description

The Eaton Load Center, MPN BRP12N125R, is designed for use in residential buildings. It supports single-phase power and provides essential space for circuit breakers and wiring. This load center accommodates up to twelve spaces for circuit breakers and can handle a total of twenty-four circuits.

• Supports 120/240 VAC voltage.
• Covers an amperage load of 125 Amps.
• NEMA 3R rated, making it suitable for outdoor installations.

Product Highlights

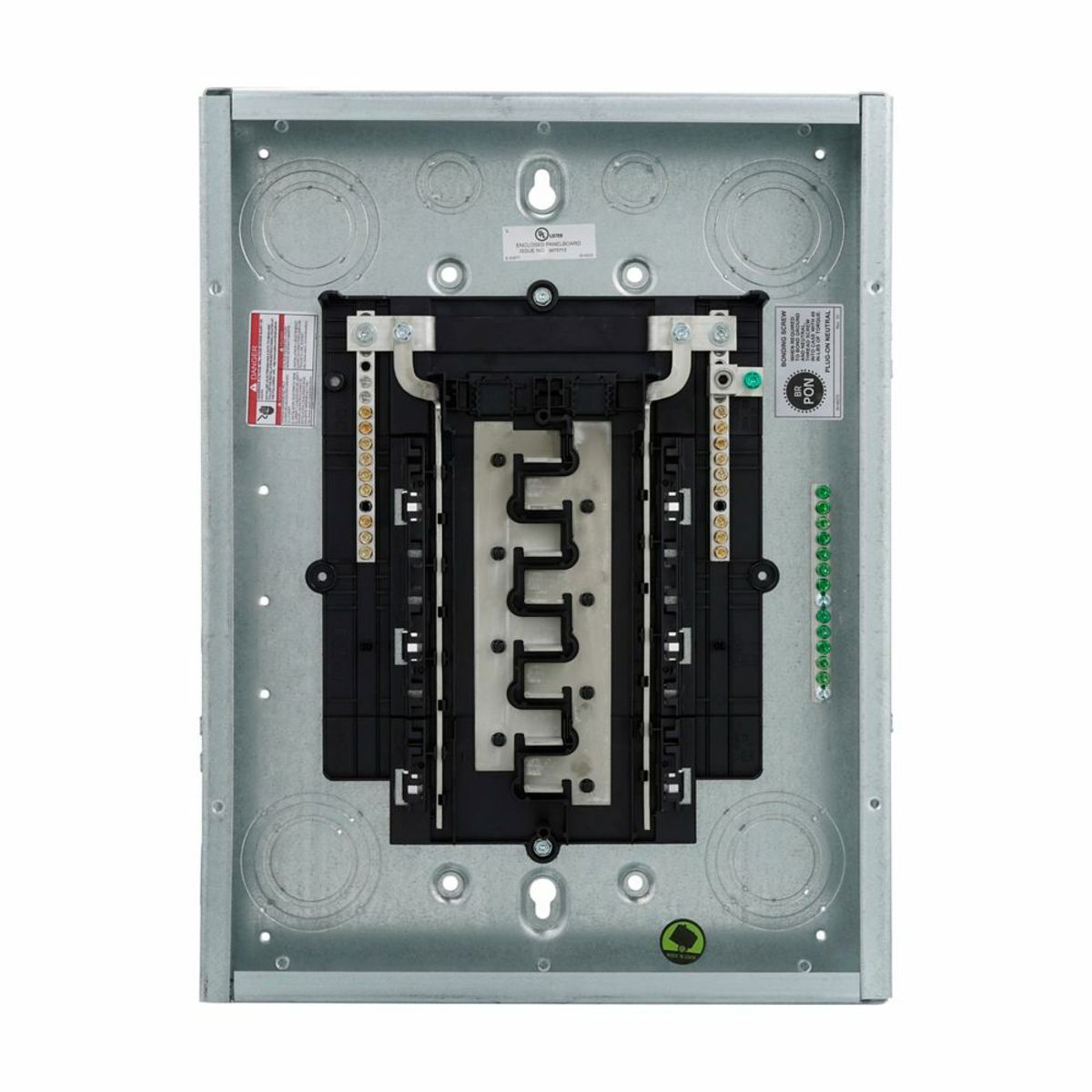

This load center is equipped with a plug-on neutral breaker mounting system, simplifying installation. The durable sheet steel housing ensures the longevity of the product even in challenging environments. The load center features a rainproof enclosure, making it ideal for external applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Item Type: Convertible Load Center

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Spaces: 12
• Number of Circuits: 24
• Enclosure Type: NEMA 3R
• Interrupt Rating: 10 kA
• Dimensions: 3.88 in L x 14.31 in W x 25 in H
• Housing Material: Sheet Steel
