Eaton BRP12L200R ETN BRP12L200R BR PON LC,200A, MLO,

Product Description

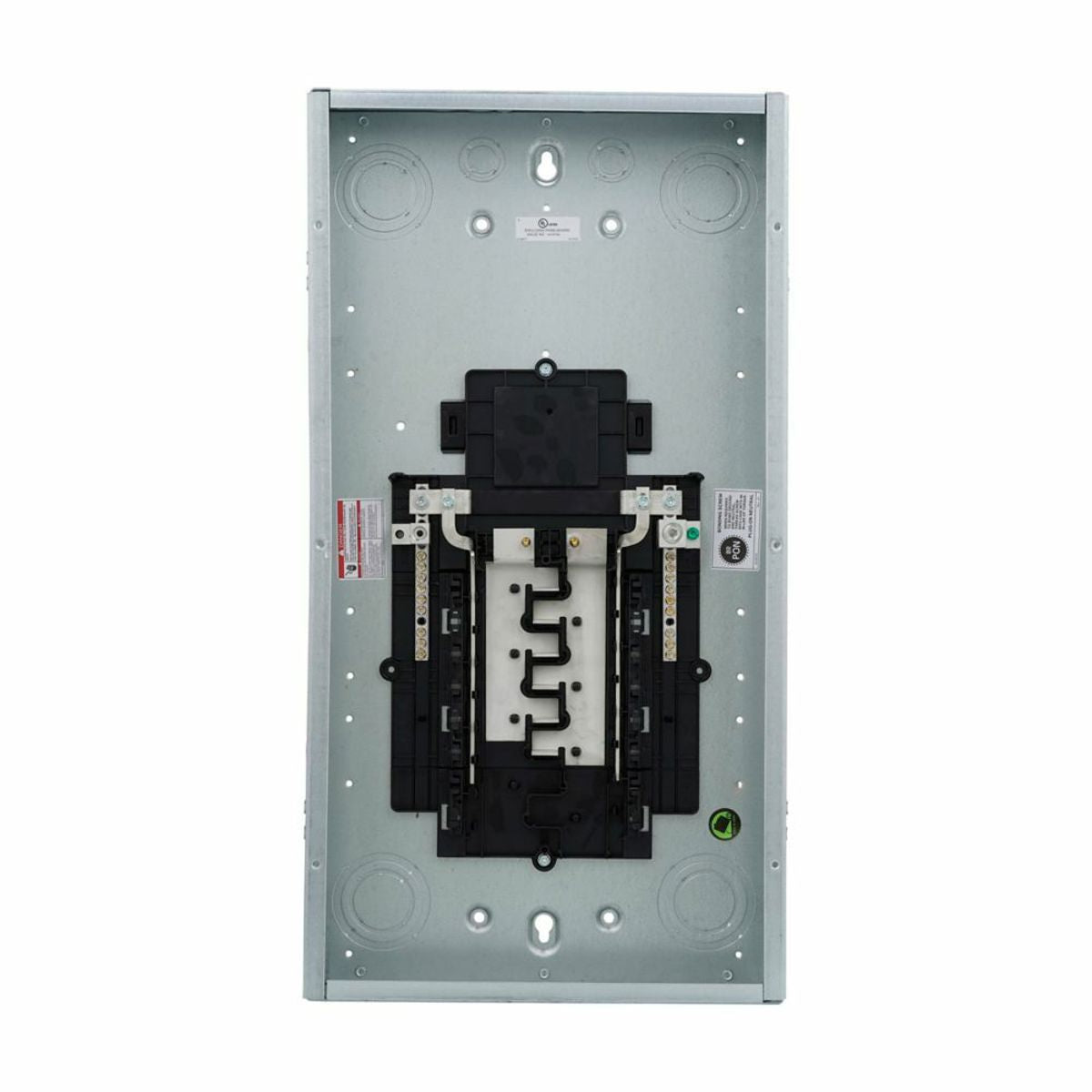

The Eaton BRP12L200R is a main lug load center with a rating of 200 Amps. This product features a robust aluminum construction and is designed for residential buildings and facilities. The load center supports a maximum of 24 circuits and comes equipped with twelve spaces.

• 200 Amp rated main lug load center
• Designed for 120/240 Volt applications
• UL 50/67 compliant for safe installation

Product Highlights

This load center integrates both safety and functionality, providing quick installation and effective circuit management.

Product Information

Standard Information

• Brand: Eaton
• MPN: BRP12L200R

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Maximum Number of Circuits: 24
• Number of Spaces: 12
• Enclosure Type: NEMA 3R
• Interrupt Rating: 10 kAIC
• Dimensions: 3.88 in L x 14.31 in W x 18.75 in H

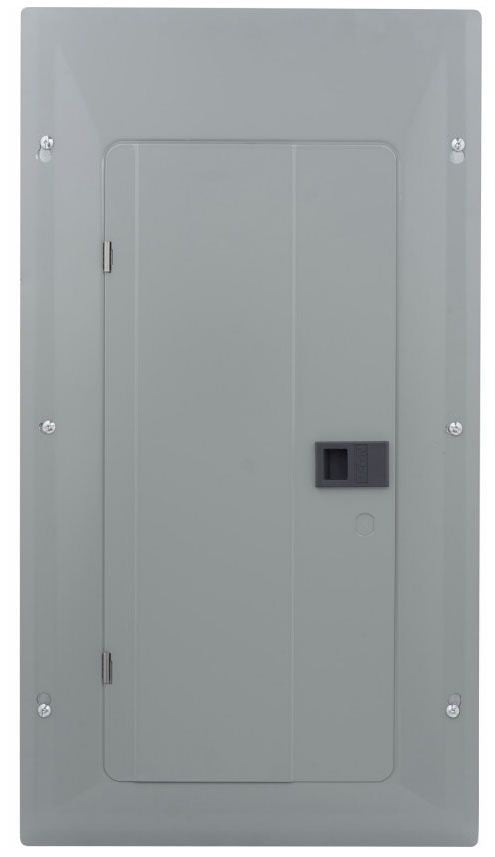

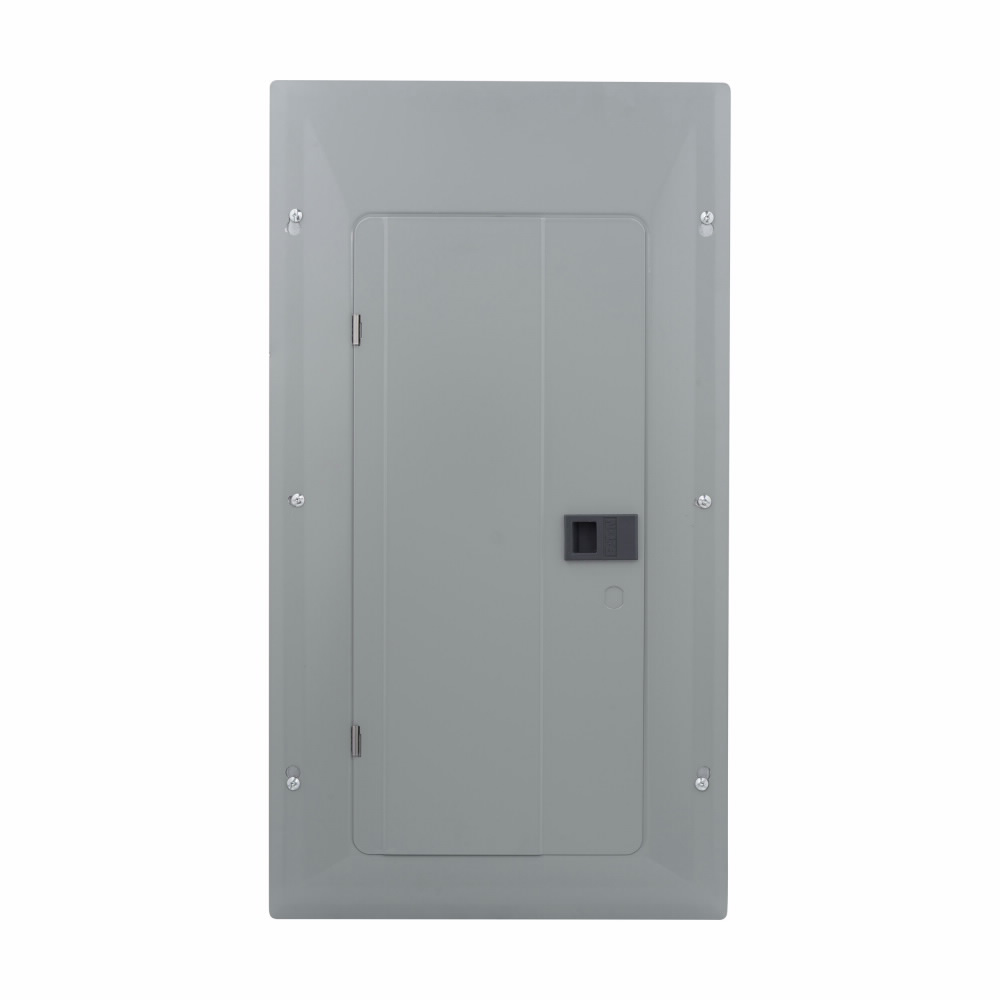

• Cover Type: Cover included
