Product Description
The Eaton BRP12L125G is a main lug load center that delivers reliable power distribution. This load center is designed to house circuit breakers and wiring for effective distribution of electricity. It operates at one hundred twenty to two hundred forty volts and has a maximum amperage of one hundred twenty-five amps.
- Type: Main Lug Only
- Number of Circuits: Twenty-four
- Enclosure: NEMA 1
Product Highlights

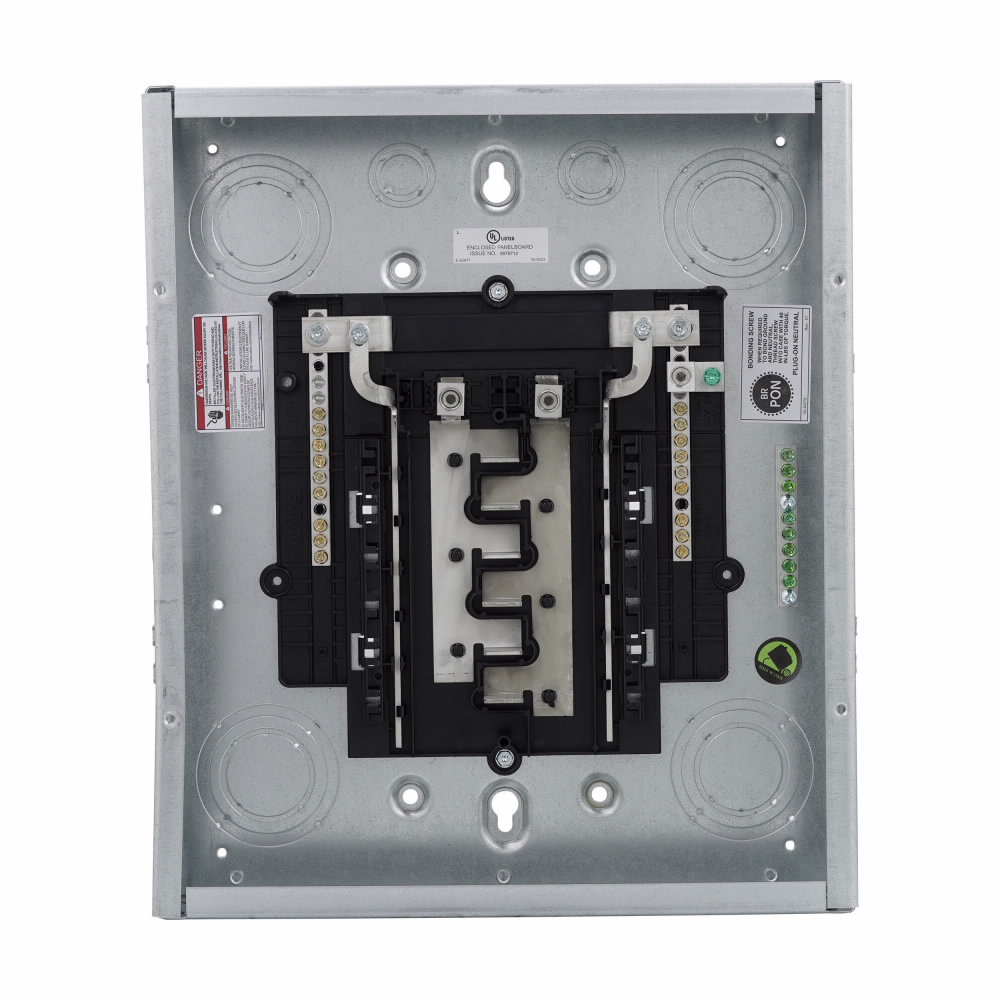

The Eaton main lug load center features an aluminum bus and is built for surface and flush mounting. Its design accommodates up to twelve spaces for circuit breakers, making it suitable for various electrical assemblies and panels.
Product Information
Standard Information
-
Brand: Eaton
-
MPN: BRP12L125G
-
Country of Origin: United States
Technical Specifications
-
Voltage Rating: 120/240 Volt
-
Amperage Rating: 125 Amp
-
Enclosure Type: NEMA 1
-
Height: 3.88 inches
-
Length: 16.75 inches
-
Weight: 16.1 lb
-
Wire Size: 6-00 AWG
-
Interrupt Rating: 10 kAIC
-
Application: Electrical Assemblies, Panels and EOEMs
