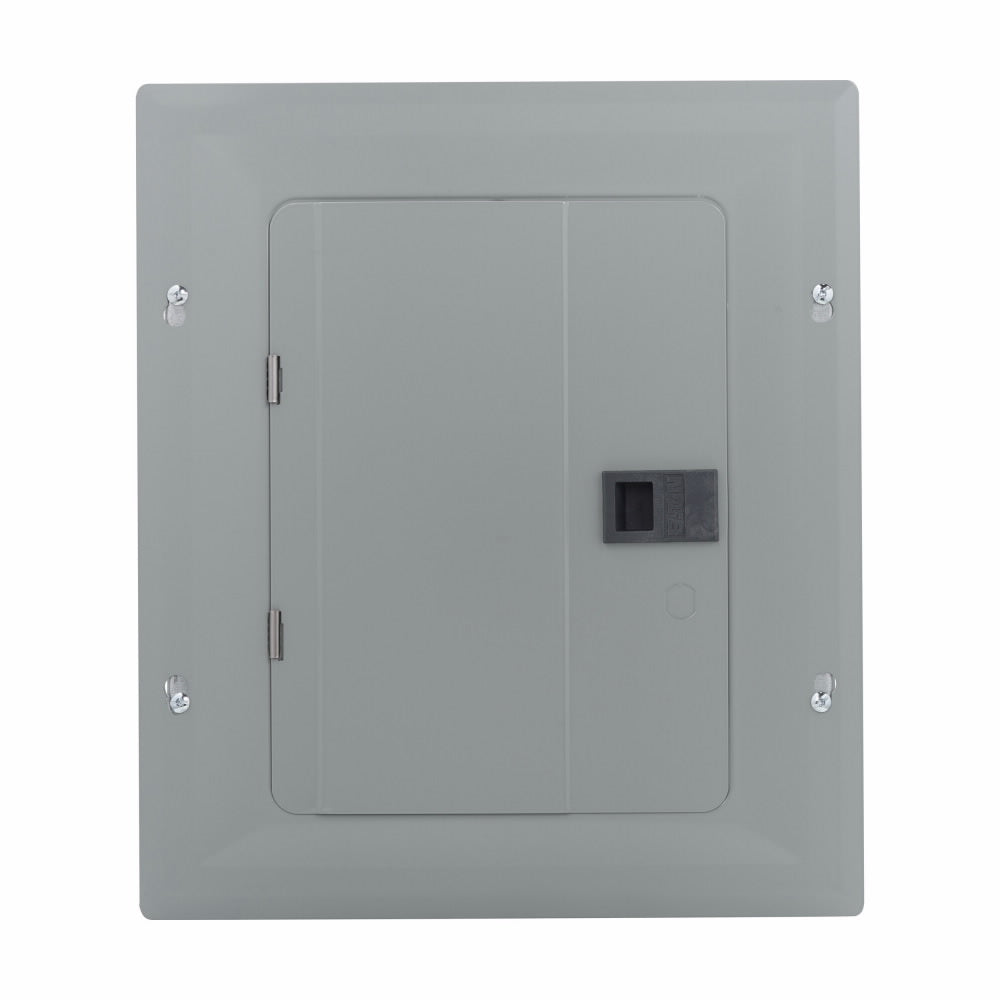

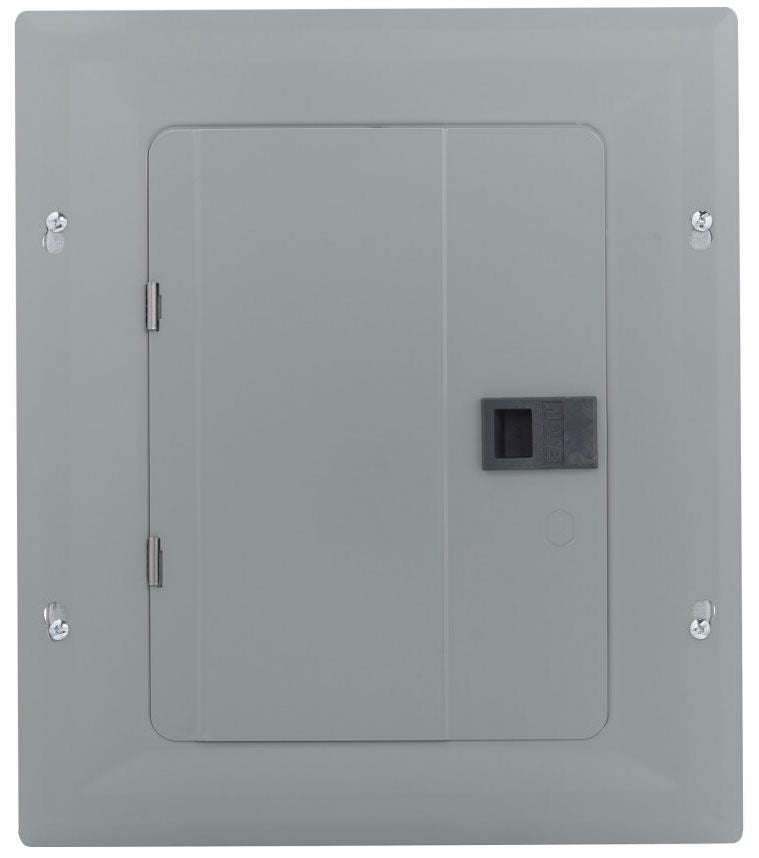

EATON BRP12L125 Type BR Single-Phase Main Lug Load Center, 125 Amp, 12 Space/24 Circuit

Product Description

The EATON BRP12L125, with a rating of 125 Amps and designed for 120/240 VAC, is a single-phase load center featuring a main lug only configuration. The unit accommodates up to 12 spaces and 24 circuits. Its durable design is suited for indoor use and features a NEMA 1 enclosure.

• Compatible with 6 to 2/0 AWG aluminum or copper wire
• Includes a cover
• Flush mounting for easy integration

Product Highlights

This load center is ideal for residential and light commercial applications. It distributes electrical power to various circuits and serves as a main breaker or a service disconnect, protecting the entire panel.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: BRP12L125

Technical Specifications

• Type: 1-Phase
• Amperage Rating: 125 A
• Voltage Rating: 120/240 VAC
• Number of Circuits: 24
• Number of Spaces: 12
• Breaker Type: BR/MLO
• Enclosure Type: NEMA 1
• Dimensions: 16.75 inches L x 14.31 inches W x 3.88 inches H
• Weight: 16.1 lbs
