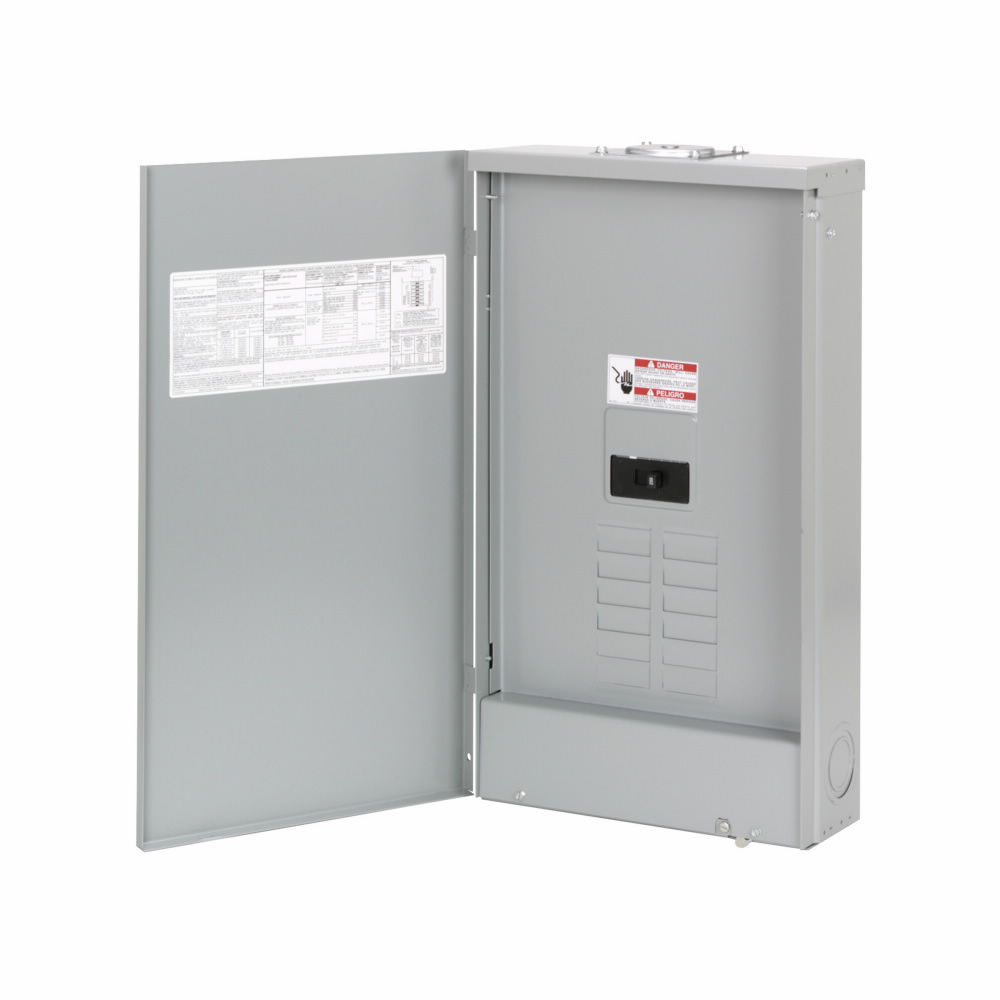

Eaton BRP12B100R ETN BRP12B100R BR PON LC 100A

Product Description

The Eaton BRP12B100R is a plug-on neutral main circuit breaker load center rated for 125 amps. This load center is designed for easy installation and efficient distribution of power to various circuits.

• Compatible with 120/240V systems.
• Includes cover and features a NEMA 3R enclosure.
• Houses up to 24 circuits with 12 spaces for single-pole breakers.

Product Highlights

The BRP12B100R is suitable for residential buildings and light commercial applications. It can serve as a main breaker for service entrances or as a sub-panel to add circuits.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 786689059149

Technical Specifications

• Catalog Number: BRP12B100R
• Amperage Rating: 125 A
• Number of Poles: 1
• Number of Spaces: 12
• Dimensions: 3.88 inches L x 14.31 inches W x 18.75 inches H
• Interrupt Rating: 10 kAIC
• Enclosure: NEMA 3R
• Wire Size: 4 to 1/0 AWG
