Product Description

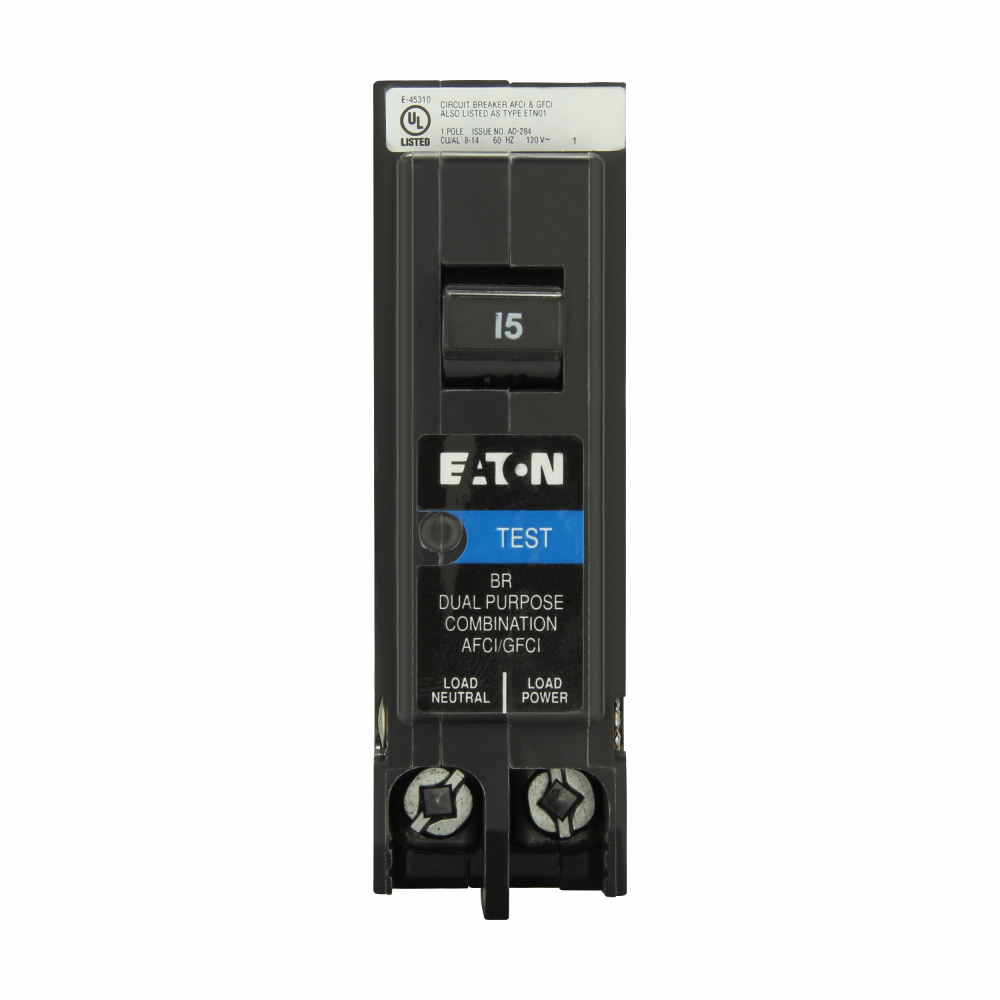

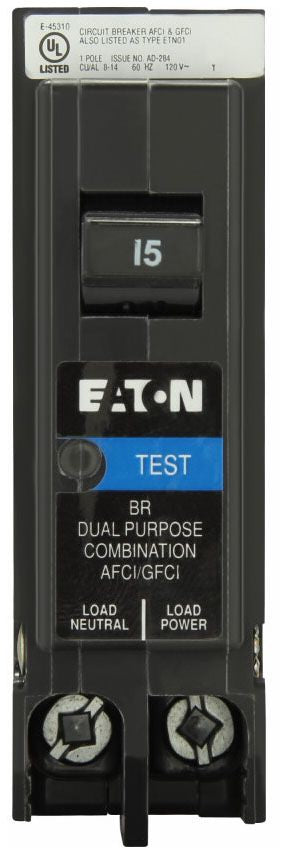

The Eaton BRP115DF is a Type BR arc fault and ground fault circuit breaker. It is designed for use in residential and commercial applications, providing essential protection against electrical faults. The breaker has a plug-on neutral design and operates at 120 VAC with an amperage rating of fifteen. It features a ten kA interrupt capacity and is one pole.
- Plug-on neutral connection for easy installation
- Designed for residential and commercial power distribution
- Includes LED diagnostic to indicate breaker status
Product Highlights
This circuit breaker combines arc fault and ground fault protection, enhancing safety in electrical installations.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer Part Number: BRP115DF
Technical Specifications
-
Type: 2-Function Type BR AF/GF Miniature
-
Phase: 1 ph
-
Voltage Rating: 120 VAC
-
Amperage Rating: 15 A
-
Interrupting Rating: 10 kAIC
-
Number of Poles: 1
-
Mounting Type: Plug-On
-
Wire Size: 14 to 4 AWG
-
Dimensions: 2.9 inches x 2.9 inches x 0.9 inches
